Egis A Series 15A Dual Pole AC Circuit Breaker
Egis A Series 15A Dual Pole AC Circuit Breaker — Product description
The Egis A Series circuit breaker gives you dual pole AC protection rated at 15 amps in a panel mount body that drops into standard A-Series and C-Series openings. Stainless self-locking hardware keeps the connections tight, and it's backed by a 4-year warranty.

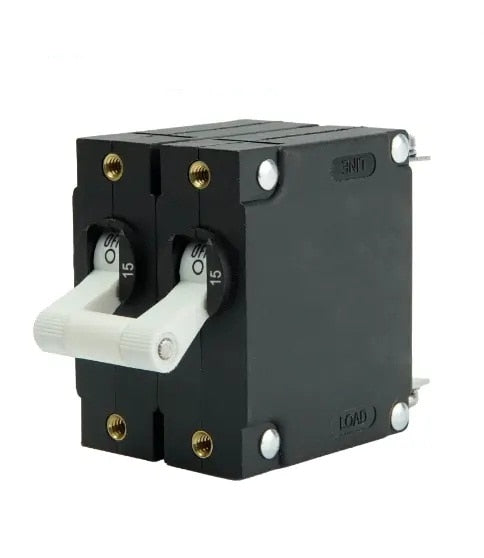

This is the Egis Mobile Electronics A Series 15 amp circuit breaker, a dual pole magnetic-hydraulic breaker built for AC circuits on your boat's panel. It mounts in any standard panel that accepts A-Series or C-Series breakers, and the mounting screws come in the box, so you're not hunting for hardware during the install.
What you're really buying here is honest circuit protection. When a short or an overcurrent load hits the line, this breaker trips before the wire insulation starts to overheat, which is exactly the kind of failure that turns into a bigger problem below deck. It's rated to 277 Vac and 80 Vdc, carries a UL 1077 listing, and holds a high interrupt capacity of 5kA at 277 Vac, so it can safely clear a fault even on a system fed by large paralleled battery banks.
The stainless steel self-locking hardware is a nice touch. It keeps the terminal connections from backing out over years of vibration. Egis rates it for 6,000 cycles at full current and stands behind it with a 4-year warranty.
Key Features
- 15 amp continuous current rating in a dual pole body for AC circuit protection
- Rated to 277 Vac and 80 Vdc with a 5kA interrupt capacity at 277 Vac for high-energy systems
- UL 1077 listed and rated for 6,000 electrical endurance cycles at full current
- Stainless steel self-locking hardware keeps terminal connections tight through vibration
- Mounts in standard panels that accept A-Series and C-Series magnetic-hydraulic breakers, mounting screws included
Why Buy from NVN Marine
- Authorized Egis Mobile Electronics reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | EGIS A Series White Toggle Panel Mount Circuit Breaker Dual Pole AC 15 Amp Retail Pack |
|---|---|
| Brand | Egis Mobile Electronics |
| Manufacturer Part Number | 3202-15 |
| UPC | 850067590897 |
| Continuous Current | 15 Amps |
| Max Voltage | 277 Vac / 80 Vdc |
| Poles | Dual Pole |
| Interrupt Capacity | 5kA / 277Vac, 1.5kA / 80 Vdc |
| Electrical Endurance | 6,000 Cycles at Rated Current |
| Regulatory Compliance | UL 1077 |
| Mounting | Panel mount, accepts A-Series and C-Series magnetic-hydraulic breakers, mounting screws included |
| Toggle Color | White |
| Warranty | 4 Year |
Frequently asked questions
What current is this breaker rated for?
It carries a 15 amp continuous current rating. It's a dual pole breaker rated to 277 Vac and 80 Vdc.
Will it fit my existing panel?
Yes, as long as your panel accepts A-Series or C-Series magnetic-hydraulic circuit breakers. It's a standard panel mount body and the mounting screws are included.
Is it safe to use on a large battery bank?
It is. It has a high interrupt capacity of 5kA at 277 Vac and 1.5kA at 80 Vdc, so it can clear a fault safely even on systems fed by large paralleled battery banks.
Does it carry any safety certification?
Yes. It's listed to UL 1077 and rated for 6,000 electrical endurance cycles at its rated current. Egis backs it with a 4-year warranty.
