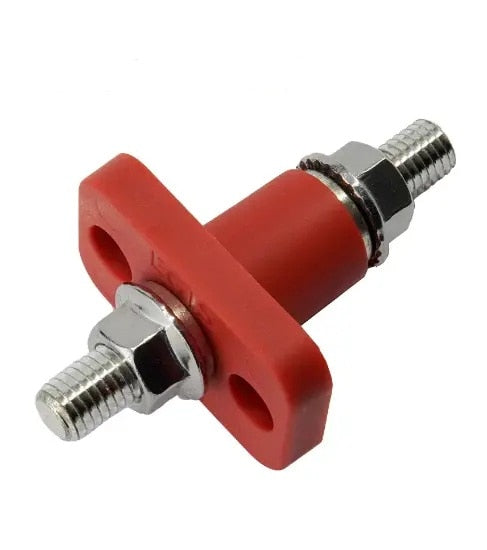

Egis 6250-141 Feed Through Terminal Red M10 3/8in
Egis 6250-141 Feed Through Terminal Red M10 3/8in — Product description
The Egis Mobile Electronics 6250-141 is a marine-grade feed through terminal that carries high-current power cleanly through a bulkhead or deck. This one's the red M10 (3/8") stud, sold as a single retail pack. Sealed, solid, and built to stay tight.
Running a heavy power cable through a bulkhead or deck is one of those jobs that looks easy until you actually do it. Drill a hole, feed the cable, and now you've got a chafe point and a leak path to worry about. That's what this feed through terminal solves.
It's a stud-style pass-through that transfers high-current power through bulkhead walls and decks without leaving an open hole in the structure. The conductors are insert molded and the insulators are glass-filled composite, so the whole assembly stays solid under vibration and load. Stainless steel self-locking hardware keeps the connections tight over the long haul, which matters on a boat that pounds through chop all day.
This is the red version with an M10 stud, which is the 3/8" size. Red typically marks the positive side in a DC setup, so you'll usually pair it with a matching black unit for the negative run. It ships as a single retail pack.
Good fit for battery banks, bus distribution, and any spot where you need clean, sealed power transfer between compartments.
Key Features
- M10 (3/8") stud size, sized for high-current cable lugs
- Insert molded conductors for a solid, vibration-resistant current path
- Glass-filled composite insulators that hold up to heat and load
- Stainless steel self-locking hardware keeps terminals tight long term
- Red polarity marking, sold as a single retail pack
Why Buy from NVN Marine
- Authorized Egis Mobile Electronics reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | EGIS Feed Through Terminal Red M10 (3/8") Retail Pack |
|---|---|
| Brand | Egis Mobile Electronics |
| Manufacturer Part Number | 6250-141 |
| UPC | 850074331636 |
| Stud Size | M10 (3/8") |
| Color | Red |
| Hardware | Stainless steel self-locking |
| Insulator Material | Glass-filled composite |
| Conductors | Insert molded |
| Packaging | Retail pack |
| Category | Electrical |
Frequently asked questions
What size stud is this terminal?
It's an M10 stud, which is the 3/8" size. Match your cable lugs to that stud for a clean, tight fit.
What's the red terminal used for?
Red typically marks the positive side of a DC system. For a full pass-through you'll usually run a matching black unit for the negative side.
Where would I install a feed through terminal?
Anywhere you need to pass high-current power through a bulkhead wall or deck, like battery banks and bus distribution, without leaving an open hole in the structure.
What are the insulators made of?
Glass-filled composite. Paired with insert molded conductors, it keeps the assembly solid under vibration and load.
Does this come as a pair?
No. It's sold as a single retail pack. You'll need a second terminal if you want both a positive and a negative run.
