Egis 6250-130 M10 Feed-Through Terminal, Black
Egis 6250-130 M10 Feed-Through Terminal, Black — Product description

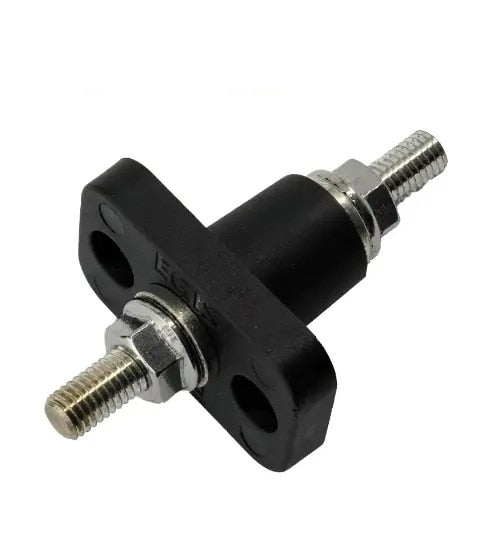

The Egis 6250-130 feed-through terminal passes high-current DC power through a bulkhead wall or deck on a single M10 (5/16") stud. Insert-molded conductors, glass-filled composite insulators, and stainless steel self-locking hardware keep it tight and isolated out on the water.
Running heavy battery cable through a bulkhead or deck is one of those jobs that looks easy until you're trying to keep water out and the connection tight. The Egis 6250-130 feed-through terminal handles it. It's a single M10 (5/16") stud, finished in black, that carries high-current power cleanly from one side of a wall or deck to the other.
The insulators are glass-filled composite and the conductors are insert molded, so the stud stays put and stays isolated from the surrounding structure. Stainless steel self-locking hardware keeps the nuts from backing off with engine vibration and the pounding you get in a chop. You tighten it once and it holds.
This is the part you reach for when you're wiring a windlass, a bow thruster, an inverter, or a second battery bank and you need the cable to pass through a panel without a sloppy grommet. It ships as a retail pack. One terminal, ready to install.
Key Features
- M10 (5/16") stud passes high-current DC through bulkheads and decks without an oversized pass-through hole
- Glass-filled composite insulators keep the conductor isolated from surrounding panels and hold up to moisture
- Insert-molded conductors keep the stud rigid and the current path solid under vibration
- Stainless steel self-locking hardware resists loosening from engine vibration and rough water
- Black finish, retail-pack packaging, ready to install as a single feed-through terminal
Why Buy from NVN Marine
- Authorized Egis Mobile Electronics reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | EGIS Feed Through Terminal Black M10 (5/16") Retail Pack |
|---|---|
| Brand | Egis Mobile Electronics |
| Manufacturer Part Number | 6250-130 |
| UPC | 850074331605 |
| Stud Size | M10 (5/16") |
| Color | Black |
| Insulator Material | Glass-filled composite |
| Conductor Construction | Insert molded |
| Hardware | Stainless steel self-locking |
| Packaging | Retail Pack |
| Category | Electrical |
Frequently asked questions
What stud size is the Egis 6250-130?
It's an M10 stud, which is the metric equivalent of 5/16". That fits the ring terminals most marine battery and high-current cables use.
What's a feed-through terminal used for?
Passing high-current power through a bulkhead wall or a deck. Think windlass, bow thruster, inverter, or a second battery bank where the cable needs to cross a panel and you want to keep water out.
Is the hardware okay for a marine install?
Yes. The insulators are glass-filled composite and the hardware is stainless steel with a self-locking design, so it stands up to moisture and holds tight against vibration.
Does it come as a single terminal?
Yes. The 6250-130 ships as a retail pack with one feed-through terminal.
