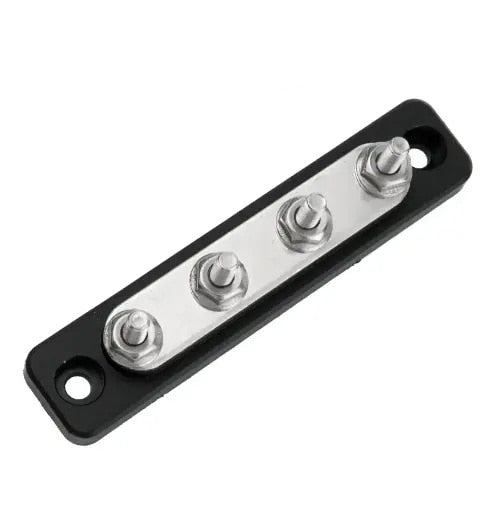

Egis 6150-400 CommonBus 150A 4-Stud Busbar

Open up almost any boat's electrical locker and you'll eventually find the same mess. A single battery post with five or six ring terminals stacked on it, each one working a little looser every season. The Egis Mobile Electric 6150-400 CommonBus fixes that. It's a flat-strip busbar with four 1/4-inch studs, and its whole job is to give your DC circuits one clean, solid place to land. Combine several grounds into one bus, or fan a single feed out to four accessories. Either way, the wiring gets tidier and a lot easier to trust.

The bar itself is tin-plated copper. Copper because it carries current with almost no resistance, tin plating because bare copper corrodes fast in the salt air of a bilge or a battery box. That plating is what keeps the connections cool and low-loss two or three seasons down the road, not just on install day. It's rated for 150 amps across the bar, which is plenty of headroom for accessory banks, a run of cabin and nav lighting, pumps, and most mid-size DC loads you'd wire off a house bank.

Every stud gets stainless steel self-locking hardware. If you've ever had a nut back off a busbar and drop a circuit while you're miles offshore, you know why that matters. Stainless holds up to the damp, and the self-locking design stays put through engine vibration and the pounding a trailered boat takes on the highway. There's no lock washer to lose and no thread locker to reapply. Snug the ring terminal down, and it stays snug.

It's rated to 48 volts DC, so it doesn't care whether you're running a 12-volt bass boat, a 24- or 36-volt trolling motor setup, or a 48-volt house bank on a bigger cruiser. The same bar works across all of them. That flexibility is why the CommonBus family is a favorite for rewires, where you might not know today exactly what voltage every future project will run. The footprint is compact too, 5.86 inches long by 1-1/4 inches wide, so it slips in behind the panel or onto a bulkhead where space is tight.

One thing to know going in. This version ships without an insulated cover, so the studs are exposed. That's fine, and often preferred, when it lives inside a sealed electrical box or a spot where nothing can bridge across the terminals. Just mount it somewhere protected, keep a little clearance around the studs, and you're set. If you want a covered bus for an open, high-traffic area, look at the covered models in the Egis CommonBus line.

Installation is straightforward. Pick a dry, protected spot, fasten the base down, and start landing your ring terminals on the studs. Put the highest-current connections closest to the feed and keep your terminal stack neat so it's easy to service later. Torque the self-locking nuts firm but don't gorilla them. Tin-plated copper and stainless don't need brute force to make a solid, gas-tight connection. Label your circuits while you're in there. Future you will be grateful the next time something needs tracing.

Who's this for? Anyone consolidating a grounding system, adding a bank of accessories, or cleaning up a distribution point that's grown out of control. It's a small, honest part that does one thing well. Pair it with properly sized cable and a fuse block, and you've got the backbone of a clean DC system that's easy to read and easy to fix. Wire it in once, and it'll quietly hold your electrical system together for years. And because it's a genuine Egis CommonBus component, it drops right in alongside the rest of the family, so you can standardize your whole distribution setup on one system.
