Egis 6150-210 CommonBus Busbar 150A 48V

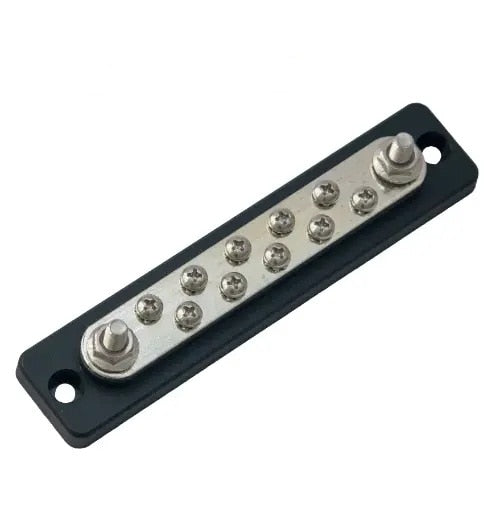

The Egis Mobile Electric 6150-210 CommonBus is a flat-strip busbar built to pull power off one common feed and split it out across your boat's DC circuits. It gives you two 1/4-inch studs for the heavy stuff and ten #8 screw terminals for everything smaller. One tidy strip. 48 volts, 150 amps, and a footprint small enough to tuck into a crowded panel.

Here's where a CommonBus earns its keep. On most boats you've got a mix of loads. A couple of big feeds, like a house-to-inverter run or a trolling motor bank, and then a pile of little ones. Lights, pumps, electronics, a stereo. Wiring all of that back to a single stud gets ugly fast. This bar lets you land the big cables on the two studs and fan the small circuits out across the ten screws, all sharing the same common connection. Less clutter behind the dash, fewer ring terminals stacked on top of each other, and a layout you can actually trace six months from now.

Think of the two studs as your trunk lines and the ten screw terminals as the branches coming off them. The 1/4-inch studs handle heavy-gauge cable, the kind you'd run for a main feed or a high-draw accessory. The #8 screws are sized for the ring terminals most house wiring uses. That mix of high and low amperage outputs from a single bar is the whole point, and it's why these show up on so many clean installs.

It's rated for 48 volts DC and 150 amps, which covers 12V and 24V systems just as easily as 48V lithium and trolling-motor setups. The strip is tin-plated copper, so you get copper's conductivity with a plating that fights the corrosion salt air loves to start. The hardware is stainless steel and self-locking, meaning it won't back off when the boat pounds through chop all day. That matters more than people think. A loose busbar connection heats up, and heat is how electrical problems start.

One thing to be clear about. This is the version without the insulated cover. The 6150-210 ships as a bare strip with its stainless hardware, and no snap-on cover is included. If you're mounting it inside an enclosed electrical panel or a battery box where nothing can fall across the terminals, that's usually fine. If it's going somewhere exposed, plan to add your own protection. Either way, keep it clear of stray tools and loose gear.

Physically it's 5.86 inches long and 1-1/4 inches wide, so it drops into tight spaces where a big distribution block won't go. Anglers running 48V bow-mount trolling motors use bars like this to clean up the rat's nest of accessory wiring near the batteries. Sailors and cruisers use them at the main DC panel. Fleet and specialty-vehicle folks lean on them too, since Egis has been building this kind of electrical gear for the marine and municipal world for over 25 years.

Install is straightforward. Land your main feeds on the 1/4-inch studs, torque the stainless nuts down, and run your branch circuits to the #8 screws with properly sized ring terminals. Keep your total draw under the 150-amp rating, fuse or breaker-protect every branch the way ABYC wants, and you've got a clean common bus that'll outlast most of the gear hanging off it.

We like this bar because it does one job and does it without drama. No moving parts to fail, no electronics to go haywire. Just solid tin-plated copper, stainless hardware, and a compact shape that fits where you need it. For a busbar you'll wire in once and then forget all about, that's exactly what you want.
