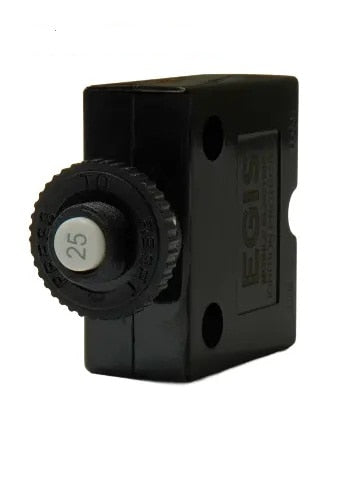

Egis 4711-25 25A Push-Button Circuit Breaker
Egis 4711-25 25A Push-Button Circuit Breaker — Product description
The Egis 4711-25 is a 25-amp push-button circuit breaker for panel mounting. Push-to-reset lets you spot and clear a tripped circuit by hand, and it's ignition protected for safe use in closed compartments. Spade terminals and the included nut and palnut make the install quick.
The Egis 4711-25 is a 25-amp push-button circuit breaker built for panel mounting at the helm or on a DC distribution panel. It's the part you reach for when you're wiring a new accessory circuit and want clean overload protection you can reset by hand.
The push-to-reset button does double duty. It pops out when the breaker trips, so you can spot the dead circuit at a glance, and you press it back in to restore power. No fuses to hunt for, no spares to carry in the glovebox.
It's ignition protected, which means it's rated for closed compartments where fuel vapors can collect, like an engine bay or a battery box. Spade terminals keep the wiring quick, and the included knurled nut and palnut give you a clean, secure mount through the panel face.
Key Features
- 25-amp rating for accessory and DC distribution circuits
- Push-to-reset button pops out on a trip so you can spot and clear the dead circuit by hand
- Ignition protected for safe installation in closed compartments with potential explosive gases
- Spade terminals for quick, tool-light wiring connections
- Includes knurled nut and palnut for a clean panel mount
Why Buy from NVN Marine
- Authorized Egis Mobile Electronics reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | EGIS Push Button Panel Mount Circuit Breaker Spade Terminals 25 Amp Retail Pack |
|---|---|
| Brand | Egis Mobile Electronics |
| Manufacturer Part Number | 4711-25 |
| UPC | 850053879296 |
| Amperage | 25 Amp |
| Reset Type | Push-To-Reset |
| Terminal Type | Spade Terminals |
| Mounting | Panel Mount |
| Ignition Protected | Yes |
| Included Hardware | Knurled Nut and Palnut |
| Category | Electrical |
Frequently asked questions
How do I reset the Egis 4711-25 after it trips?
Just press the button back in. When the breaker trips the push button pops out, so you can see which circuit cut power, then you push it back to restore the connection.
Is this breaker safe to mount in an engine compartment?
Yes. It's ignition protected, so it's rated for closed compartments where explosive gases like fuel vapor can collect.
What hardware comes with it for mounting?
It ships with a knurled nut and a palnut for a clean, secure panel mount through the panel face.
What type of terminals does it use?
Spade terminals, which make for quick wiring connections without crimping ring lugs.
What amperage is this breaker rated for?
It's rated at 25 amps.
