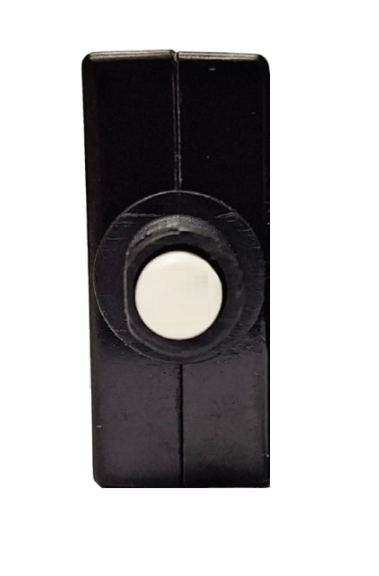

Egis 4710-07 7A Push-Button Panel Circuit Breaker

If you've ever had a circuit go dead offshore and spent twenty minutes hunting for a blown fuse, you already know why a resettable breaker earns its spot on the panel. The Egis Mobile Electric 4710-07 is a 7 amp push-to-reset circuit breaker that mounts straight through your dash or electrical panel. When it trips, a button pops out. You clear the fault, press it back in, and you're running again. No spare fuses, no fumbling in a tackle box.

This one is the 7 amp version in the Egis 4710 push-button panel-mount line. It handles a single circuit, so you'd wire it inline on one accessory feed. Think nav lights, a bilge pump, a livewell aerator, a stereo, a small electronics run, or any 12 or 24 volt load that pulls up to 7 amps steady. The 50 volt DC rating covers both 12V and 24V systems with plenty of headroom, so it's equally at home on a bass boat, a center console, a pontoon, or a sailboat DC panel.

The breaker uses screw terminals, so you land ring or spade connectors and snug them down. That's a cleaner, more permanent connection than a push-on blade, which matters when you're bouncing across chop all day. Egis includes the mounting hardware you need to set it: a knurled nut, a palnut, and stainless steel hardware. Drill the panel hole, drop the breaker through, and lock it down from behind. The stainless bits hold up to the damp, salty air that eats cheaper plating.

Push-to-reset is the feature that separates this from a plain fuse holder. A fuse is a one-shot. When it blows, you need a replacement of the exact rating on hand, and if you don't, that circuit stays dark. This breaker just trips and waits. Once whatever caused the overload is sorted, a firm press on the button restores power. For circuits you actually depend on out there, that's the difference between a minor annoyance and a ruined afternoon.

It's rated for an operating temperature range of 14 to 140 degrees Fahrenheit, so it shrugs off a cold morning launch and a black dashboard baking in July sun alike. The protection rating is UL1500 with IP40 on the front face and IP00 on the rear terminals. In plain terms, the front resists fingers and small objects while the back is meant to sit inside a protected panel or enclosure, not out in the weather. Mount it behind the dash or inside a console and you're set.

A quick note on the button boot. Egis offers a rubber protective boot for this breaker line that seals the button against spray and grime. It ships separately, so if you want that extra layer of protection you'll want to add the matching boot to your order. The breaker itself comes with the panel mounting hardware only.

Sizing is simple. Pick the breaker amperage to match the wire and the load on that circuit, not higher than the wire is rated to carry. The 4710-07 protects up to 7 amps, which suits a lot of common cabin and cockpit accessories. If your load runs closer to 10 or 15 amps, step up to the matching higher-rated breaker in the same Egis line so the button and terminals stay the same across your panel. Keeping one family of breakers on the dash makes for a tidy, consistent install that the next person to work on the boat will thank you for.

Egis Mobile Electric has been building electrical protection gear for marine, emergency, and fleet vehicles for over 25 years, and it shows in the little details here, from the stainless hardware to the clean UL listing. If you're rewiring a helm, adding a new accessory circuit, or replacing a tired fuse block with something you can actually reset on the water, the 4710-07 is a straightforward, dependable choice. Match the amperage to your circuit's draw and wire it in. That's it.
