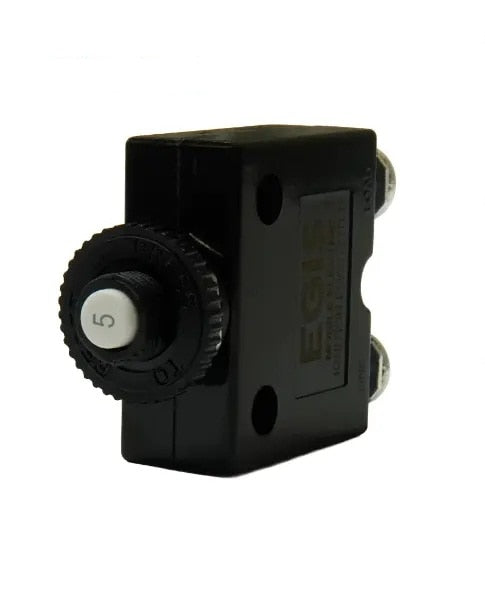

Egis 4710-05 5A Push-Button Panel Circuit Breaker
Egis 4710-05 5A Push-Button Panel Circuit Breaker — Product description
The Egis 4710-05 is a 5 amp push-button panel mount circuit breaker built for the helm. Push-to-reset pops the button when a circuit faults, so you can spot the trip and reset it by hand. Screw terminals, stainless hardware, and ignition-protected construction make it an easy choice for protecting low-draw electronics and accessory circuits.
When a circuit on your boat faults, you want to know about it fast, and you want to get back up and running without digging for a spare fuse. That's what the Egis 4710-05 push-button breaker gives you. It's a 5 amp panel mount breaker sized for the low-draw stuff: electronics feeds, cabin and courtesy lighting, instrument power, and small accessory circuits.
The push-to-reset button does double duty. When the breaker trips, the button pops out so you can see at a glance which circuit went down. Press it back in and you're reset. No tools, no fumbling. The screw terminals use self-locking screws that hold your wiring tight through the pounding and vibration every boat sees.
Everything here is built for the water. Stainless steel hardware stands up to salt and spray, and the breaker is ignition protected, so it's safe to mount inside closed compartments where fuel vapors can collect. An optional sealing boot is available separately if you want to seal the face against spray. Mounts cleanly through a panel or dash at the helm.
Key Features
- 5 amp rating protects low-draw circuits like electronics, cabin lighting, and accessory feeds
- Push-to-reset button pops out on a trip so you can spot the faulted circuit and reset it by hand
- Screw terminals with self-locking screws hold wiring tight through vibration
- Stainless steel hardware stands up to salt, spray, and humidity
- Ignition protected for safe mounting inside closed compartments where fuel vapors can collect
Why Buy from NVN Marine
- Authorized Egis Mobile Electronics reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | EGIS Push Button Panel Mount Circuit Breaker Screw Terminals 5 Amp Retail Pack |
|---|---|
| Brand | Egis Mobile Electronics |
| Manufacturer Part Number | 4710-05 |
| UPC | 850053879159 |
| Amperage | 5 Amp |
| Reset Type | Push-to-Reset |
| Mounting | Panel Mount |
| Terminals | Screw Terminals |
| Hardware | Stainless Steel |
| Self-Locking Screws | Yes |
| Ignition Protected | Yes |
| Series | 4710 |
| Category | Electrical |
Frequently asked questions
What does the push-to-reset button do?
When the breaker trips, the button pops out so you can see which circuit faulted. Press it back in to reset the breaker to the open position. No tools needed.
Can I mount this in a closed compartment?
Yes. The 4710-05 is ignition protected, which makes it safe to install in closed compartments where potential explosive gases like fuel vapors can collect.
What kind of circuits is a 5 amp breaker good for?
A 5 amp rating suits low-draw circuits such as electronics, instrument power, courtesy and cabin lighting, and small accessory feeds. Match the breaker to the load it protects.
Does it come with a sealing boot?
No. The breaker is designed to accept an optional sealing boot, but the boot is sold separately. The breaker itself ships in a retail pack with the screw terminal hardware.
