Egis 4710-03 3A Push-Button Panel Circuit Breaker

The Egis Mobile Electric 4710-03 is a 3 amp push-to-reset circuit breaker built for panel mounting on a boat's DC electrical system. It does the same job a fuse does, protecting a low-current circuit from an overload or a short, but you never have to carry spares or dig through a fuse pouch in the dark. When the circuit faults, the button pops out. You fix the problem, push it back in, and you're running again.

Three amps is a small rating, and that's the point. This breaker is sized for the light stuff. Think nav light circuits, an electronics feed, a small sensor, a low-draw pump, or an accessory that pulls a couple of amps at most. Putting the right-sized breaker on a small circuit matters. A properly matched breaker trips before the wire heats up, so the protection actually guards the conductor and not just the device at the end of it.

It's rated to 50 volts DC, which covers every common marine setup you'll run into. 12 volt, 24 volt, 32 volt, even 42 volt lithium banks all sit comfortably under that ceiling. So you can standardize on one breaker family across boats and systems without second-guessing the voltage.

The connections are screw terminals. You land a ring or a spade terminal on each stud and tighten it down. It's a clean, serviceable connection that holds up to vibration better than a push-on tab, and it's easy to re-torque during a seasonal inspection. Egis uses self-locking screws and stainless steel hardware here, which is exactly what you want in a damp, salty environment where ordinary plated steel starts weeping rust in a season.

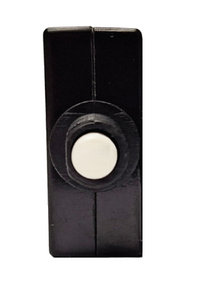

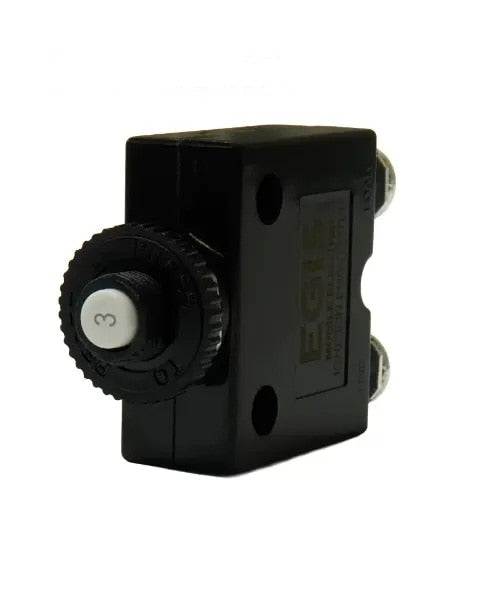

Mounting is straightforward. The 4710-03 drops into a single hole in your panel and secures with the knurled nut and palnut. The knurled nut snugs it down by hand, and the palnut locks it so engine vibration doesn't back it off. From the front you get a clean push button on the face of your panel. From the back, the screw terminals sit ready for your wiring.

One detail worth calling out: this is an ignition-protected breaker. That means it's safe to install in a compartment that can hold explosive vapors, like an engine space or a battery box. The breaker won't throw a spark that could set off fuel or hydrogen fumes. If you've ever wondered whether a given switch or breaker belongs near the engine, ignition protection is the spec that answers it, and this one has it.

On the protection ratings, it's UL1500 listed, with an IP40 rating on the front face and IP00 on the rear terminals. IP40 keeps small objects out of the button side. IP00 on the back simply means the bare terminals aren't sealed, which is normal for a panel breaker, since the panel itself is what keeps water off the wiring. If you're mounting it somewhere exposed and want to seal the button, Egis offers a sealing boot. That boot is sold separately, it doesn't come in the box with the breaker.

The operating temperature range runs from 14 to 140 degrees Fahrenheit, so it handles a cold morning on a northern lake and a hot engine compartment in the summer without drama.

For wiring, a 3 amp load is light enough that 18 AWG carries it easily. A lot of builders still run 16 AWG as a practical minimum on a boat, just for the mechanical durability, so either is a sensible choice depending on your run length and how you like to wire. Match the breaker to the wire and the load, and this little unit will quietly do its job for years without any fuss or maintenance.
