Egis 3911 Class T Fuse Block 110-200A, 80V Marine
Egis 3911 Class T Fuse Block 110-200A, 80V Marine — Product description

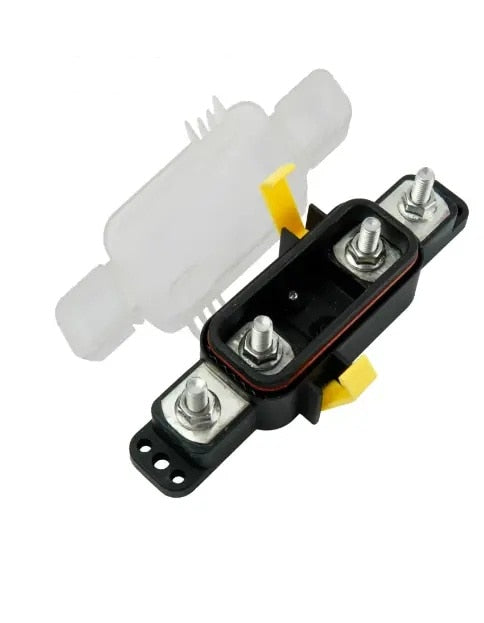

The Egis 3911 is a sealed, ignition-protected fuse block built to hold a Class T fuse rated 110 to 200 amps. Tin-plated copper busbar, glass-filled nylon housing, and stainless hardware make it a solid choice for high-current DC circuits on inverters, windlasses, and main battery feeds.
The Egis Class T Fuse Block gives you a sealed, ignition-protected home for a Class T fuse rated from 110 to 200 amps. It's built for the high-current DC circuits you find on inverters, windlasses, and main battery feeds, where a Class T fuse is the right call for its high interrupt rating.
What makes this one worth it? The busbar is tin-plated copper, so you get minimal voltage drop and clean current flow even under load. The housing is glass-filled nylon, which shrugs off heat, vibration, and the damp. Stainless steel self-locking hardware keeps your connections tight over the long haul, and separate stud connections let heavier-gauge cables land on their own studs instead of crowding the fuse tab.
It's ignition protected and rated IP66, IP67, and IP6K9K, so you can mount it in an engine bay or near LPG without worry. Max voltage is 80 Vdc. Four #10 (M5) and two 1/4-inch (M6) mounting holes anchor it down, and you torque the screws to 50 in-lbs. The Class T fuse itself is sold separately, so match it to your circuit. Backed by a 4-year warranty.
Key Features
- Tin-plated copper busbar for minimal voltage drop under heavy load
- Glass-filled nylon housing stands up to heat, vibration, and moisture
- Stainless steel self-locking hardware for connections that stay tight
- Ignition protected and rated IP66, IP67, and IP6K9K for engine bays and gas boats
- Separate stud connections let heavy-gauge cables land clear of the fuse tab
Why Buy from NVN Marine
- Authorized Egis Mobile Electronics reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | EGIS Class T Fuse Block 110 - 200 A Sealed Retail Pack |
|---|---|
| Brand | Egis Mobile Electronics |
| Manufacturer Part Number | 3911 |
| UPC | 850067590712 |
| Maximum Amperage | 110-200A |
| Max Voltage | 80 Vdc |
| Ingress Protection Rating | IP66, IP67, IP6K9K |
| Mounting Holes | 4x #10 (M5) & 2x 1/4" (M6) |
| Mounting Screw Max Torque | 50 in-lbs (5.5 N-m) |
| Busbar Material | Tin-Plated Copper |
| Hardware | Stainless Steel Self-Locking |
| Housing Material | Glass-Filled Nylon |
| Ignition Protected | Yes |
| Warranty | 4 Year |
| Category | Electrical |
Frequently asked questions
What size Class T fuse does the 3911 hold?
It's built for Class T fuses rated from 110 to 200 amps. Match the fuse to your circuit's load.
Is the Class T fuse included?
No. This is the fuse block itself. The Class T fuse is sold separately so you can size it to your circuit.
Can I mount this on a gas boat or near LPG?
Yes. The 3911 is ignition protected, so it's rated for installation in potentially hazardous gaseous environments like LPG or gas-powered boats.
What's the maximum voltage?
80 Vdc. It handles standard 12V, 24V, and 48V marine DC systems with plenty of headroom.
How do I mount it?
It has four #10 (M5) and two 1/4-inch (M6) mounting holes. Torque the mounting screws to no more than 50 in-lbs (5.5 N-m).
