Egis 3202-30 A Series 30A Dual Pole AC Circuit Breaker
Egis 3202-30 A Series 30A Dual Pole AC Circuit Breaker — Product description

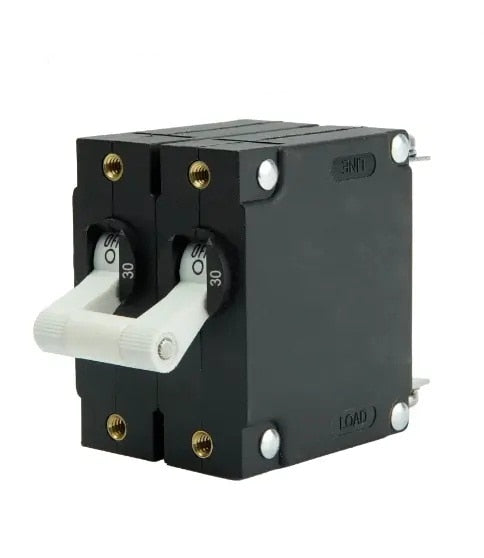

The Egis A Series 3202-30 is a dual-pole, 30-amp panel-mount circuit breaker with a clean white toggle. Magnetic-hydraulic protection rated for both AC and DC, built to drop into standard A-Series and C-Series breaker cutouts on your helm panel.
If you're wiring a dual-pole AC circuit on your boat and want breaker protection you can reset with a flip, the Egis 3202-30 does the job. It's a magnetic-hydraulic circuit breaker rated at 30 amps continuous, with a white toggle that reads clean on a painted or black helm panel.
What makes it versatile is the voltage range. It's rated to 277 Vac and 80 Vdc, so it covers AC shore-power branch circuits and DC loads alike. The interrupt capacity is high too, 5kA at 277Vac, which matters when you've got large paralleled battery banks with real fault current behind them. It protects your wiring from short circuit events and over-current loads before the insulation ever overheats.
It drops into any standard panel cut for A-Series or C-Series magnetic-hydraulic breakers, and the mounting screws come in the box. Stainless steel self-locking hardware keeps the connections tight through vibration, season after season. Backed by a 4 year warranty and carries UL 1077 recognition.
Key Features
- 30 amps continuous current, enough headroom for most mid-size AC branch circuits and DC accessory runs
- Rated to 277 Vac and 80 Vdc, so one breaker covers both shore-power AC and DC loads
- Magnetic-hydraulic design with UL 1077 recognition for consistent trip behavior
- 5kA interrupt capacity at 277Vac protects circuits fed by large paralleled battery banks
- Stainless steel self-locking hardware and included mounting screws drop into standard A-Series and C-Series panel cutouts
Why Buy from NVN Marine
- Authorized Egis Mobile Electronics reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | EGIS A Series White Toggle Panel Mount Circuit Breaker Dual Pole AC 30 Amp Retail Pack |
|---|---|
| Brand | Egis Mobile Electronics |
| Manufacturer Part Number | 3202-30 |
| UPC | 850067590910 |
| Continuous Current | 30 Amps |
| Max Voltage | 277 Vac / 80 Vdc |
| Poles | Dual Pole |
| Toggle Color | White |
| Mounting | Panel mount, accepts A-Series and C-Series cutouts |
| Regulatory Compliance | UL 1077 |
| Electrical Endurance | 6,000 Cycles at rated current |
| Interrupt Capacity | 5kA / 277Vac, 1.5kA / 80 Vdc |
| Mounting Hardware | Stainless steel self-locking, mounting screws included |
| Warranty | 4 Year |
Frequently asked questions
Is this breaker rated for AC or DC circuits?
Both. It's rated to 277 Vac and 80 Vdc, so you can use it on AC shore-power branch circuits or DC loads on the same part number.
What panel cutout does it fit?
It mounts in any standard panel that accepts A-Series and C-Series magnetic-hydraulic circuit breakers. Mounting screws are included in the box.
What does dual pole mean here?
A dual-pole breaker switches and protects two conductors at once, which is what you want on a 240V AC branch or any circuit where you need to break both legs together.
What's the interrupt capacity?
5kA at 277Vac and 1.5kA at 80Vdc. That high rating is why it's suited to circuits fed by large paralleled battery banks with significant available fault current.
Is it protected against nuisance tripping from heat?
It's a magnetic-hydraulic design carrying UL 1077 recognition, rated for 6,000 electrical endurance cycles at rated current, so trip behavior stays consistent.
