Egis 3201-50 A-Series 50A AC/DC Circuit Breaker
Egis 3201-50 A-Series 50A AC/DC Circuit Breaker — Product description
The Egis A-Series circuit breaker is a single-pole, 50-amp panel-mount breaker rated for both AC and DC circuits. It drops into standard panels, handles up to 277 Vac or 80 Vdc, and ships with the mounting screws you need to wire it in.

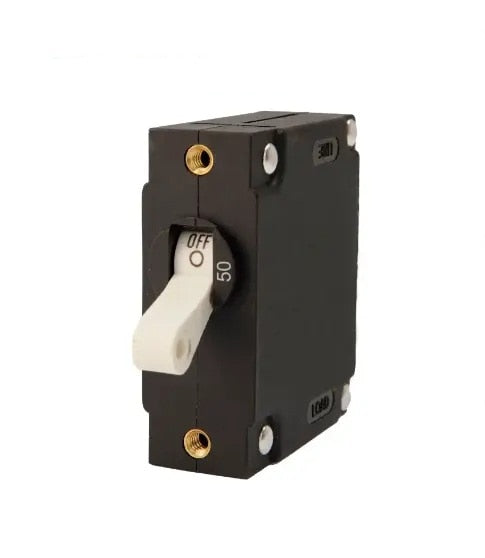

The Egis A-Series circuit breaker gives you reliable overcurrent protection in a panel-mount package that's rated for both AC and DC circuits. It's a single-pole 50-amp breaker with a white toggle, built to drop into standard panels that accept A-Series and C-Series magnetic-hydraulic breakers.
What makes this one worth rigging in? It handles up to 277 volts AC or 80 volts DC, and the high interrupt capacity means it can safely protect circuits tied to big paralleled battery banks where there's a lot of available current. If a short or an overload hits, the breaker trips before your wire insulation starts cooking. That's the whole point of good circuit protection, and it's why we trust these on boats.
Stainless steel self-locking hardware keeps the connections tight over the long haul, so you're not chasing loose terminals a season later. Mounting screws are included, and it's backed by a 4-year warranty. Rated to UL 1077 for 6,000 cycles at full load.
Key Features
- 50-amp continuous rating protects circuits from shorts and overloads before wire insulation overheats
- AC and DC rated to 277 Vac / 80 Vdc for wide onboard system compatibility
- High interrupt capacity (5kA at 277Vac, 1.5kA at 80Vdc) safely handles large paralleled battery banks
- Stainless steel self-locking hardware keeps terminal connections tight over the long haul
- Fits standard panels accepting A-Series and C-Series magnetic-hydraulic breakers, mounting screws included
Why Buy from NVN Marine
- Authorized Egis Mobile Electronics reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | EGIS A Series White Toggle Panel Mount Circuit Breaker Single Pole AC/DC 50 Amp Retail Pack |
|---|---|
| Brand | Egis Mobile Electronics |
| Manufacturer Part Number | 3201-50 |
| UPC | 850074331162 |
| Continuous Current | 50 Amps |
| Max Voltage | 277 Vac / 80 Vdc |
| Interrupt Capacity | 5kA / 277Vac, 1.5kA / 80 Vdc |
| Regulatory Compliance | UL 1077 |
| Electrical Endurance | 6,000 Cycles at Rated Current |
| Poles | Single Pole |
| Mounting Hardware | Stainless Steel Self-Locking |
| Toggle Color | White |
| Warranty | 4 Year |
| Category | Electrical |
Frequently asked questions
Does this breaker work on both AC and DC circuits?
Yes. It's rated for 277 volts AC and 80 volts DC, so you can use it across a wide range of onboard systems.
What panels does it fit?
It mounts in standard panels that accept A-Series and C-Series magnetic-hydraulic circuit breakers. Mounting screws are included in the pack.
Is it a single or double pole breaker?
Single pole, rated for 50 amps continuous current.
Does it meet electrical safety standards?
It's built to UL 1077 and rated for 6,000 electrical cycles at full load, with stainless steel self-locking hardware for lasting connections.
