Egis 3201-25 25A AC/DC Panel Mount Circuit Breaker
Egis 3201-25 25A AC/DC Panel Mount Circuit Breaker — Product description

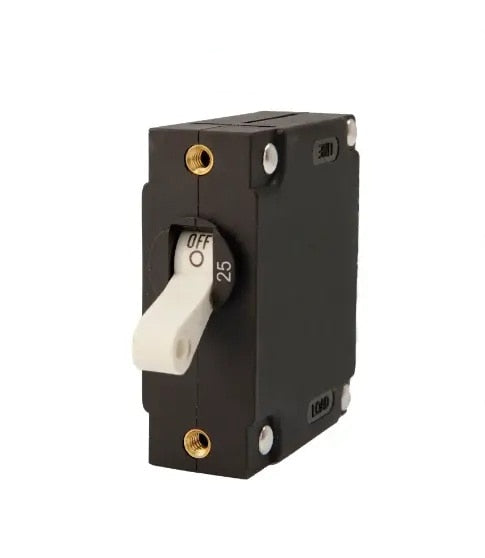

The Egis 3201-25 is a single pole, panel mount circuit breaker rated for both AC and DC service at 25 amps. Magnetic-hydraulic protection, UL 1077 listed, and it drops into any standard A-Series or C-Series breaker panel.
The Egis 3201-25 is a single pole panel mount circuit breaker rated for both AC and DC service, so it earns a spot on just about any helm or distribution panel. It carries 25 amps continuously and handles up to 277 Vac or 80 Vdc, which covers most of the onboard branch circuits you'd want to protect.
What makes this one worth having is the magnetic-hydraulic trip. It guards your wiring against short circuits and sustained overloads before the insulation ever gets a chance to overheat. The interrupt capacity is high too, 5kA at 277 Vac, so it's a safe pick even when you're pulling from a large paralleled battery bank with a lot of available power behind it.
It fits any standard panel cut for A-Series or C-Series magnetic-hydraulic breakers, and the stainless steel self-locking hardware keeps the connection tight through vibration, season after season. Mounting screws are in the box, and Egis backs it with a 4 year warranty.
Key Features
- 25 amp continuous current rating, single pole, protects a single AC or DC branch circuit
- Rated to 277 Vac / 80 Vdc, covering a wide range of onboard system voltages
- Magnetic-hydraulic trip guards wiring from short circuits and sustained overloads
- 5kA at 277 Vac interrupt capacity, safe on large paralleled battery banks
- Stainless steel self-locking hardware with mounting screws included, UL 1077 listed, 4 year warranty
Why Buy from NVN Marine
- Authorized Egis Mobile Electronics reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | EGIS A Series White Toggle Panel Mount Circuit Breaker Single Pole AC/DC 25 Amp Retail Pack |
|---|---|
| Brand | Egis Mobile Electronics |
| Manufacturer Part Number | 3201-25 |
| UPC | 850074331131 |
| Continuous Current | 25 Amps |
| Max Voltage | 277 Vac / 80 Vdc |
| Poles | Single Pole |
| Interrupt Capacity | 5kA / 277Vac, 1.5kA / 80 Vdc |
| Electrical Endurance | 6,000 Cycles at Rated Current |
| Regulatory Compliance | UL 1077 |
| Mounting Hardware | Stainless Steel Self-Locking, screws included |
| Panel Compatibility | A-Series and C-Series magnetic-hydraulic breaker panels |
| Warranty | 4 Year |
| Category | Electrical |
Frequently asked questions
Does this breaker work on both AC and DC circuits?
Yes. The 3201-25 is rated for AC and DC service, up to 277 Vac or 80 Vdc, so it works on both shore-power and house-battery circuits.
What is the amp rating?
It carries 25 amps continuously. Match the breaker to the wire gauge and load on the circuit you're protecting.
Does it come with mounting hardware?
Yes. Mounting screws are included, and the stainless steel self-locking hardware keeps the connection tight through vibration.
Will it fit my existing panel?
It mounts in any standard panel cut to accept A-Series or C-Series magnetic-hydraulic circuit breakers.
