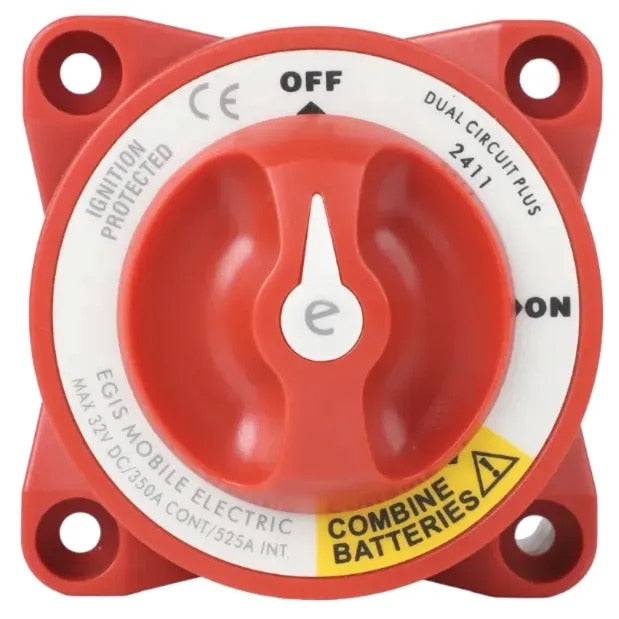

EGIS 2411 e-Series 350A Dual Circuit Battery Switch
EGIS 2411 e-Series 350A Dual Circuit Battery Switch — Product description
The EGIS 2411 e-Series is a dual-circuit battery switch that lets you connect, isolate, or combine two banks with a single handle. It's rated for 350 amps, sealed against dust and water, and ignition protected, so it's safe to mount right in the engine compartment.
The EGIS 2411 e-Series handles the job most boats with two battery banks need done, moving power between a start bank and a house bank from one spot. Connect one, isolate the other, or combine both when you want to charge everything at once or give the engine bank a hand turning over. It's all one handle.
It's rated at 350 amps, with a single-circuit maximum of 48V DC and 32V DC on the selector side, so it covers 12V, 24V, and 36V systems without a second thought. The studs are 3/8 inch and take a matching 3/8 inch (M10) ring terminal, torqued to 140 in-lbs. Serrated flange lock nuts keep those cable terminals from backing off when the boat's pounding through chop.
And because it's sealed against dust and water and fully ignition protected, you can mount it in a closed compartment near fuel or batteries without worry. Stainless hardware and high-temperature materials mean it holds up in the harsh spots where a switch like this usually lives.
Key Features
- 350A rating handles the cable runs on most mid-size boats without heating up
- Dual-circuit design with combine connects, isolates, or ties two banks together from one handle
- Sealed against dust and water and ignition protected, safe to mount in a closed engine compartment
- 3/8 inch-16 studs accept 3/8 inch (M10) ring terminals, torqued to 140 in-lbs
- Serrated flange lock nuts and stainless hardware resist loosening in high-vibration installs
Why Buy from NVN Marine
- Authorized Egis Mobile Electronics reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | EGIS 2411 e-Series 350A Dual Circuit with Combine Battery Switch |
|---|---|
| Brand | Egis Mobile Electronics |
| Manufacturer Part Number | 2411 |
| UPC | 850067590583 |
| Amperage Rating | 350A |
| Maximum Voltage (Single Circuit) | 48V DC |
| Maximum Voltage (Selector / Dual Circuit) | 32V DC |
| Stud/Thread Size | 3/8"-16 |
| Terminal Stud Torque | 140 in-lbs (15.8 N-m) |
| Ring Terminal Size Acceptance | 3/8" (M10) |
| Ignition Protected | Yes |
| Category | Electrical |
Frequently asked questions
What does the combine function do?
It lets you tie your two battery banks together with one switch. Normally you keep the start and house banks isolated, but flip to combine when you want to charge both at once or give the engine bank a hand starting.
Can I mount this in the engine compartment?
Yes. It's sealed against dust and water and fully ignition protected, so it's safe in a closed compartment that might see fuel vapors.
What voltage systems does it work with?
The single-circuit side is rated to 48V DC and the selector side to 32V DC, so it covers 12V, 24V, and 36V setups.
What size cables and terminals does it take?
The studs are 3/8 inch-16 and accept a 3/8 inch (M10) ring terminal. Torque them to 140 in-lbs so the connections stay tight.
