The EGIS 2220-08 gives you eight input-output pairs on one compact block, rated for 20 amps and up to 240 volts. It's built for marine work: tin-plated copper alloy bus bars, stainless steel hardware, and high insulation walls that keep ring terminals from shorting to the circuit next door. A clean way to organize eight accessory runs at the helm or panel.

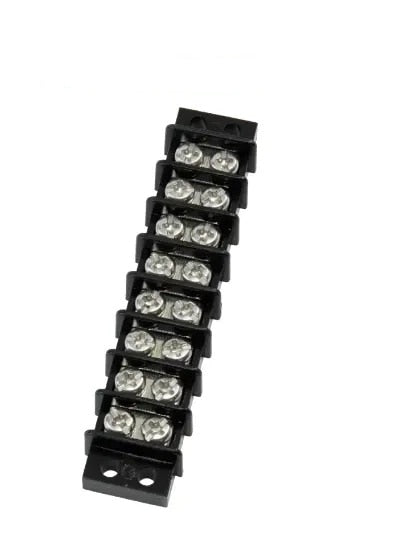

The EGIS 2220-08 is a marine-grade terminal block with eight matching connection pairs, each giving you one input screw and one output screw landed on its own copper alloy bus bar. That's eight separate accessory circuits organized on a single block, rated for 20 amps continuous and up to 240 volts. It'll support 12, 24, 36, and 48 VDC systems, plus 120/240 VAC applications.
The build is what you want on a boat. Tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation material that stands up to a hot engine bay or a damp bilge locker. The insulation walls run high between pairs, so a ring terminal can't splay out and short to the circuit beside it. Anti-rotation ribs on the conductor strips keep your terminals from spinning when the strain-relief run is long.
It's a good fit for distributing power or signal to accessories at the helm, a nav station, or an electrical panel. EGIS backs it with a 4-year warranty.
Key Features
- 8 matching connection pairs, one input and one output screw each for eight separate circuits
- 20 amps continuous current rated to 240V for 12, 24, 36, and 48 VDC and 120/240 VAC systems
- 2000 VAC dielectric strength with high insulation walls that protect ring terminals from shorting to adjacent circuits
- Tin-plated copper alloy bus bars and stainless steel hardware for marine-grade corrosion resistance
- Anti-rotation ribs on the conductor strips stop terminal rotation on long strain-relief runs
Why Buy from NVN Marine
- Authorized Egis Mobile Electronics reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | EGIS Terminal Block 20A - 8 Circuit |
|---|---|
| Brand | Egis Mobile Electronics |
| Manufacturer Part Number | 2220-08 |
| UPC | 850074331384 |
| Connection Pairs | 8 |
| Continuous Current | 20A |
| Maximum Voltage | 240V |
| Dielectric Strength | 2000 VAC |
| System Compatibility | 12/24/36/48 VDC, 120/240 VAC |
| Conductor Material | Tin-Plated Copper Alloy |
| Hardware Material | Stainless Steel |
| Warranty | 4 Year |
| Type | Terminal Block |
| Category | Electrical |
Frequently asked questions
How many circuits does the 2220-08 handle?
Eight. You get eight matching connection pairs, each with its own input and output screw on a dedicated copper alloy bus bar, so that's eight separate accessory circuits on one block.
What's the amp and voltage rating?
20 amps continuous current and a maximum of 240 volts. It supports 12, 24, 36, and 48 VDC systems as well as 120/240 VAC applications.
Is it suitable for marine use?
Yes. It's built with tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation, so it holds up in the damp, salty conditions on a boat.
What keeps the ring terminals from shorting?
High insulation walls between each pair. They stop a ring terminal splice from touching an adjacent circuit or ground, and anti-rotation ribs keep the terminals from spinning loose.
