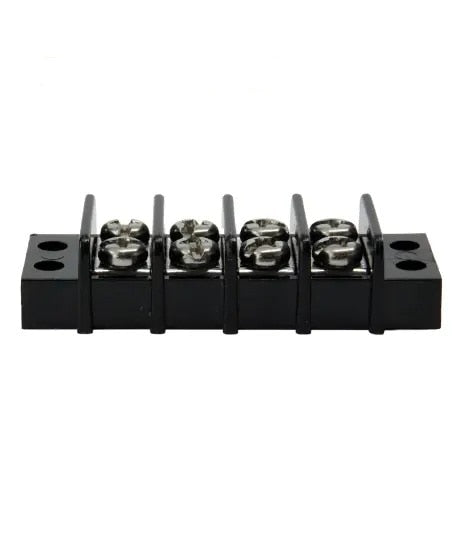

Egis 2220-04 20A 4-Circuit Terminal Block

The Egis 2220-04 is a 4-circuit terminal block built for the kind of wiring you actually find on a boat. Four matching pairs of screw terminals, each with one input and one output, sitting on tin-plated copper bus bars. It's the part you reach for when you need to land a run of accessory wires in one clean, serviceable spot instead of a rat's nest of butt connectors behind the dash.

Each connection pair gives you a dedicated input screw and output screw tied to their own copper alloy bus bar. So you can bring power in on one side and send it out to a pump, a light, a sensor, whatever the circuit feeds, on the other. Four pairs means four independent circuits on a block that measures just 2.17 inches long by 0.86 inches wide. That compact footprint matters when you're fitting it into a console, a switch panel backer, or a tight electrical locker.

Construction is where this block earns its place on salt water. The conductors are tin-plated copper alloy, and that tin plating is what keeps corrosion from creeping into the connection over a few seasons. The hardware is stainless steel, so the screws won't seize or rust out on you. The insulation is a high-temperature material rated to a 2000 Vac dielectric strength, with tall insulation walls between the pairs. Those walls do real work. They keep a ring terminal on one circuit from shorting across to the next circuit or to ground if a lug shifts or you get a little sloppy with a spade.

On the electrical side, the 2220-04 carries 20 amps of continuous current per circuit and is rated to 240 volts AC or DC. In practice that covers just about any low-voltage DC system on a boat. 12, 24, 36, and even 48 volt setups all run comfortably through it. It's equally at home on 120 or 240 volt AC if you're wiring shore-power accessories. Twenty amps gives you headroom for pumps, electronics, lighting circuits, and most of the accessory loads you'll distribute off a block like this.

We like these for cleaning up a helm. Say you've got a handful of accessories, nav lights, a bilge pump, a livewell pump, a stereo, all needing a common positive and ground pickup. Landing them on a 2220-04 gives you labeled, torqued, individually accessible connections you can trace in thirty seconds the next time something acts up. That beats chasing a crimped splice buried in a harness every time.

A quick tip on wiring it: use properly sized ring or spade terminals, crimp them well, and snug the stainless screws down firmly without stripping them. Ring terminals seat cleanly between the insulation walls and give you the most reliable long-term connection. If you're running heavier gauge wire for a 20-amp circuit, 12 gauge is a sensible starting point for short runs, with heavier wire as the run gets longer. The block itself won't limit you as long as your terminals and wire are sized for the load.

One small detail that pays off during install: the conductor strips have anti-rotation ribs. If your strain-relief runs are long and a wire gets tugged, the rib keeps the terminal from spinning under the screw head. It's the kind of thing you don't notice until you've fought a block that doesn't have it. Egis backs the 2220-04 with a 4-year warranty, and the marine-grade materials throughout mean it's built to ride out the heat, vibration, and damp that come with the territory.

If you need more or fewer circuits, this same line comes in 2, 4, 6, 8, 10, and 12 pair blocks, so you can size the block to the job. The 2220-04 is the 4-circuit, 20-amp member of that family. For a modest run of accessory circuits on a boat under 30 feet, it's about right.
