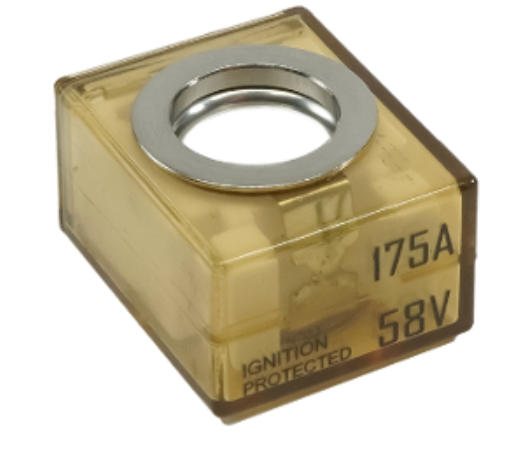

Egis 175A MRBF Terminal Fuse, 58V DC Marine Rated

The Egis Mobile Electric 175A MRBF terminal fuse is the kind of part that does a big job from a small footprint. MRBF stands for Marine Rated Battery Fuse, and the idea behind it is simple. You put the fuse right at the battery or the bus bar, so the wire leaving your bank is protected from the very first inch. If a cable ever chafes through or a downstream device shorts out, this fuse opens before that wire can turn into a heat source.

It's rated to 58 volts DC, which sounds oddly specific until you see what it covers. That rating easily handles 12V, 24V, 36V, and 48V nominal systems. So whether you're running a traditional 12-volt house bank or a 48-volt lithium setup feeding a big inverter, the same fuse family has you covered. That's one less thing to second-guess when you're speccing out a build.

The 175-amp rating puts this one squarely in main-feed territory. Think DC mains, inverter feeds, windlass circuits, and bow thruster runs. Those are the loads that pull serious current and need protection sized to the wire carrying them. A 175A MRBF fuse pairs with cable rated to carry that current, and by ABYC practice you want the fuse guarding that conductor on close to a one-to-one basis. Size the fuse to the cable, not to the load's peak draw, and you'll sleep better at anchor.

Mounting is where the MRBF format earns its keep. It uses an isolated stud design that bolts straight to a battery terminal or onto a dedicated MRBF terminal fuse block. No inline holder dangling off your positive cable, no bulky enclosure stealing space in the battery box. Run it in a proper MRBF fuse block and the assembly is ignition protected, which matters in any compartment that could ever see fuel vapor.

What does IP66 actually mean out on the water? The first six says the fuse is fully dust-tight, so nothing works its way in. The second six says it shrugs off powerful water jets from any direction. In real terms, that's a fuse you can mount in an engine bay, under a cockpit sole, or in a lazarette that takes the odd bit of spray, and it keeps right on doing its job. Corrosion is what kills marine electrical connections, so a sealed, weather-rated fuse at the battery is money well spent.

Here's the honest part on what you're actually buying. This is a single 175-amp fuse, not a kit. It doesn't include a fuse block or mounting hardware, so if you don't already have an MRBF block or a suitable battery stud, you'll want to grab one separately. Buying the fuse on its own is exactly right when you're replacing a blown one or building up a stash of spares. Plenty of boaters keep two or three of the right amperage tucked into the spares kit, right next to the crimps and heat shrink.

A quick word on those spares. A fuse only interrupts once. When it opens, you replace it, so having the exact amperage on hand means a blown main doesn't strand you. Match the replacement to the original rating and the wire gauge every time. Dropping in a higher-amp fuse to stop nuisance trips defeats the whole point and puts your wiring at risk. It's never worth it.

Egis Mobile Electric has been building vehicle and marine electrical gear for more than 25 years, and battery protection is right in their wheelhouse. This fuse is backed by the manufacturer's warranty, so you're not gambling on an unknown. Fuse it once, do it right, and forget about it. That's the whole point of protecting a circuit at the source, and it's why MRBF terminal fuses have become a default for clean, compact DC main protection on modern boats.
