EGIS 125A Mini ACR 6601 | 12V/24V Battery Relay
EGIS 125A Mini ACR 6601 | 12V/24V Battery Relay — Product description

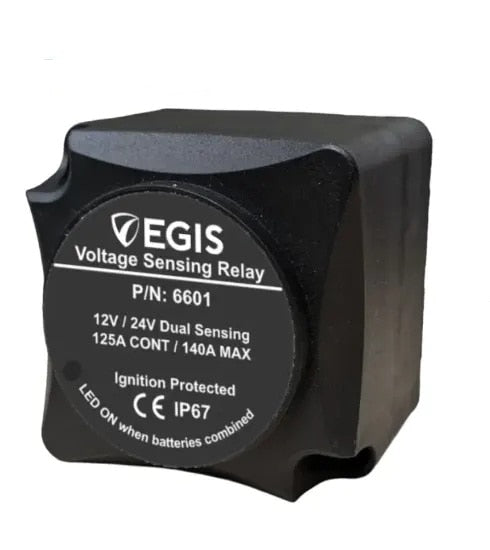

The EGIS Mini Automatic Charging Relay is a compact 125-amp voltage-sensing relay that keeps your starting battery and auxiliary bank charged together, then isolates them so accessories can't drain the battery you need to start the engine. Auto-senses both 12V and 24V systems.
The EGIS Mini Automatic Charging Relay is a compact 125-amp voltage-sensing relay that keeps your starting battery and auxiliary bank working together without you thinking about it. When the engine's charging, it links the banks so both top off. When voltage drops, it isolates them, so your accessories can't drain the battery you need to start the motor. Simple as that.
It auto-senses both 12V and 24V systems, so there's no setting to get wrong. You get remote and local LED indication, and it panel or surface mounts wherever you've got room. The housing is built for a harsh environment, with high-temperature materials and stainless steel self-locking hardware, so you can mount it almost anywhere on the boat and forget about it.
This is the bulk-pack version of the model 6601, handy if you're rigging more than one boat or stocking a shop. If you've ever come back to a dead starting battery after a day of running the stereo and the lights, this is the fix.
Key Features
- 125-amp rating handles high-output charging without nuisance trips
- Auto-senses both 12V and 24V systems, no manual configuration needed
- Automatically isolates auxiliary loads so they can't drain the starting battery
- Remote and local LED indication shows combine status at a glance
- Stainless steel self-locking hardware and high-temperature housing for harsh-environment mounting
Why Buy from NVN Marine
- Authorized Egis Mobile Electronics reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | EGIS Mini Automatic Charging Relay 125 Amp Bulk Pack |
|---|---|
| Brand | Egis Mobile Electronics |
| Manufacturer Part Number | 6601 |
| UPC | 850067590637 |
| Amperage Rating | 125 Amp |
| Relay Type | Automatic Charging Relay (ACR) |
| Voltage Sensing | Auto-sensing 12V and 24V |
| Indication | Remote and local LED |
| Mounting | Panel and surface mount |
| Hardware | Stainless steel self-locking |
| Packaging | Bulk Pack |
| Category | Electrical |
Frequently asked questions
Does this work on both 12V and 24V systems?
Yes. The relay auto-senses both 12V and 24V systems, so there's no setting to configure.
What does an automatic charging relay actually do?
It links your starting and auxiliary batteries while the engine is charging so both banks fill, then isolates them when voltage drops so your accessories can't drain the battery you need to start the engine.
How do I mount it?
It panel or surface mounts using stainless steel self-locking hardware. The high-temperature housing lets you mount it almost anywhere on the boat.
What's the amperage rating?
It's rated for 125 amps.
What does bulk pack mean?
This is the bulk-packaged version of EGIS model 6601, intended for shops or riggers handling multiple installs.
