Dometic SmartStart Soft Start for FreshJet 5 Electric AC
Dometic SmartStart Soft Start for FreshJet 5 Electric AC — Product description

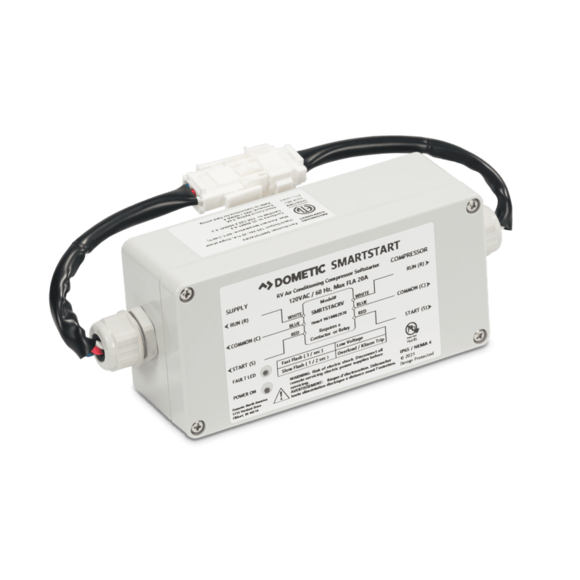

The Dometic SmartStart is a soft starter made for the FreshJet 5 Electric Series rooftop air conditioner. It cuts the compressor's start-up power surge by as much as 75 percent, so your AC stops tripping breakers and stalling generators. If you camp off a portable generator or on tight 30-amp shore power, it's the part that finally lets the air conditioner run.
The Dometic SmartStart is a soft starter built for the FreshJet 5 Electric Series rooftop air conditioner. It goes after the single biggest power draw in your RV, which is the moment the compressor kicks on. That inrush surge is what trips pedestal breakers and stalls generators before the cabin ever cools. SmartStart smooths the spike out, cutting start-up power demand by as much as 75 percent so the AC comes to life without the hard jolt.
Anyone who's tried to run rooftop AC off a small portable generator knows the drill. The generator handles the steady running load just fine, but the compressor start-up surge overwhelms it and the unit shuts down before you feel any cold air. SmartStart changes that math. By dropping the start-up spike, it makes it realistic to start and run the FreshJet 5 Electric on smaller generators that simply couldn't swallow the raw inrush before.
On 30-amp campground service you're always doing amperage math in your head. Fire up the microwave, the water heater, and the air conditioner at the same time and the breaker pops. Because SmartStart shrinks the compressor's start-up draw, you free up amps for everything else on the circuit, and you stop babysitting which appliances are allowed to run together. That's a real quality-of-life change on a hot afternoon.
In bigger rigs with two rooftop units, staggering the thermostats isn't always enough. Two compressors trying to start close together can spike well past what your shore cord or generator wants to deliver. Adding SmartStart to the FreshJet 5 Electric keeps each start-up gentle, which matters most in the heat when both units cycle constantly and every start is another chance to trip the supply.
There's a comfort angle too. A hard compressor start sends a jolt through the whole unit. With less power slamming in at start-up, the FreshJet 5 Electric spins up quieter and with less strain on the compressor and its wiring. Over a long season of daily cycling, an easier start is easier on the hardware, and that tends to show up as fewer nuisance faults down the road.
This is the FreshJet 5 Electric Series version, Dometic part number 9630001951. It's matched to that air conditioner's electrical system, so you're not guessing at compatibility or splicing in a one-size-fits-all module. The unit measures 12-1/4 inches long, 7 inches wide, and 5 inches deep, and it wires in as part of the air conditioner's 120-volt circuit rather than sitting somewhere out in the coach.
Installation happens right at the air conditioner. The module ties into the FreshJet 5 Electric's own wiring, so the start-up management is built into the unit's circuit instead of bolted on as an afterthought. Plenty of owners have it added when the AC goes in, but it can also drop into a unit that's already up on the roof.
It earns its keep based on how you actually camp. Full-hookup resort with 50-amp service every night? You may never notice it working. Chase dry camping, state parks with thin power, or a portable generator in the driveway, and it moves from a nice-to-have to the part that finally lets you sleep in a cool rig.
One honest reality check on what it does and doesn't do. SmartStart doesn't make the air conditioner colder, add BTUs, or change how the thermostat behaves. It won't turn a worn-out compressor into a fresh one. What it does is one job well. It takes the violence out of every start-up so your FreshJet 5 Electric plays nicer with limited power, and for anyone who camps off generators or on tight shore service, that's the line between cool air and a tripped breaker.
Key Features
- Cuts air conditioner start-up power demand by as much as 75 percent, so the compressor surge stops tripping breakers and stalling generators.
- Built specifically for the Dometic FreshJet 5 Electric Series and matched to that unit's 120-volt electrical system for a no-guess fit.
- Makes it realistic to start and run rooftop AC on smaller portable generators that couldn't handle the raw inrush before.
- Frees up amperage on 30-amp shore service so you can run the AC alongside other appliances without popping the pedestal breaker.
- Softer start-up means less mechanical jolt and a quieter spin-up every time the compressor cycles.
- Reduces reliance on shore power, a real advantage when you're dry camping or parked where the power is thin.
- Compact 12-1/4 in x 7 in x 5 in module wires directly into the air conditioner's own circuit.
- Genuine Dometic part number 9630001951, engineered for the FreshJet 5 Electric rather than sold as a universal add-on.
Why Buy from NVN Marine
- Authorized Dometic reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Genuine Dometic FreshJet accessory, matched to the FreshJet 5 Electric Series air conditioner.
Technical specifications
| Title | Dometic SmartStart Soft Start for FreshJet 5 Electric Series Air Conditioners |
|---|---|
| Brand | Dometic |
| Manufacturer Part Number | 9630001951 |
| UPC | 7333497007775 |
| Product Type | Air Conditioner Soft Start |
| Compatibility | Dometic FreshJet 5 Electric Series Air Conditioners |
| Operating Voltage | 120V AC |
| Startup Power Reduction | Up to 75% |
| Length | 12-1/4 in |
| Width | 7 in |
| Depth | 5 in |
| Package Dimensions (L x W x H) | 12-1/4 in x 7 in x 5 in |
Frequently asked questions
What does the Dometic SmartStart actually do?
It's a soft starter that reduces the power your air conditioner demands at the moment the compressor kicks on. That start-up surge is the spike that trips breakers and stalls generators, and SmartStart cuts it by as much as 75 percent.
Which air conditioner does this fit?
This version is built for the Dometic FreshJet 5 Electric Series rooftop air conditioner. It's Dometic part number 9630001951 and is matched to that unit's electrical system.
How much does it reduce start-up power?
By as much as 75 percent. The running load of the AC doesn't change, but the big inrush spike at start-up is dramatically smaller.
Will it let me run my AC on a smaller generator?
That's the main reason people install it. Small portable generators usually handle the running load but choke on the start-up surge. By softening that surge, SmartStart makes it realistic to start and run the FreshJet 5 Electric on generators that couldn't handle it before.
Does it help on 30-amp shore power?
Yes. Because the compressor's start-up draw is smaller, you free up amps on a 30-amp pedestal, so it's easier to run the air conditioner alongside other appliances without popping the breaker.
Does it make the air conditioner quieter?
The start-up is gentler. Less power slamming in at the moment the compressor engages means a smoother, quieter spin-up and less mechanical jolt through the unit each cycle.
Where does it install?
Right at the air conditioner. It wires into the FreshJet 5 Electric's own 120-volt circuit. It's often added when the AC is installed, but it can also be added to a unit already on the roof.
Will it make the AC colder or add cooling power?
No. SmartStart only manages the start-up power draw. It doesn't add BTUs, change the thermostat, or make the air conditioner cool any harder. Its job is getting the unit started on limited power.
How big is the unit?
It measures 12-1/4 inches long by 7 inches wide by 5 inches deep, so it tucks into the air conditioner's wiring area.
