Dometic Single-Zone Programmable AC Thermostat Control Kit

Dometic's single-zone control kit is the part that actually tells your air conditioner what to do. You mount the black capacitive-touch panel where the crew can reach it, wire in the control board that ships in the same box, and you've got full command of one Dometic AC zone. Cool it down, run the furnace, or flip to heat pump mode when the weather can't make up its mind. It's all programmable, and it all runs on 12V DC.

We reach for this kit in two situations. First, a fresh install where the air handler shipped without a head unit, and you need the display plus the board to bring the system to life. Second, a repair, when an older thermostat has gone flaky and you want to bring the controls up to a clean programmable LCD. Either way, this is a single-zone setup. One panel, one zone. If your coach or your boat runs multiple air handlers on separate zones, you'll want one kit per zone or a multi-zone controller instead.

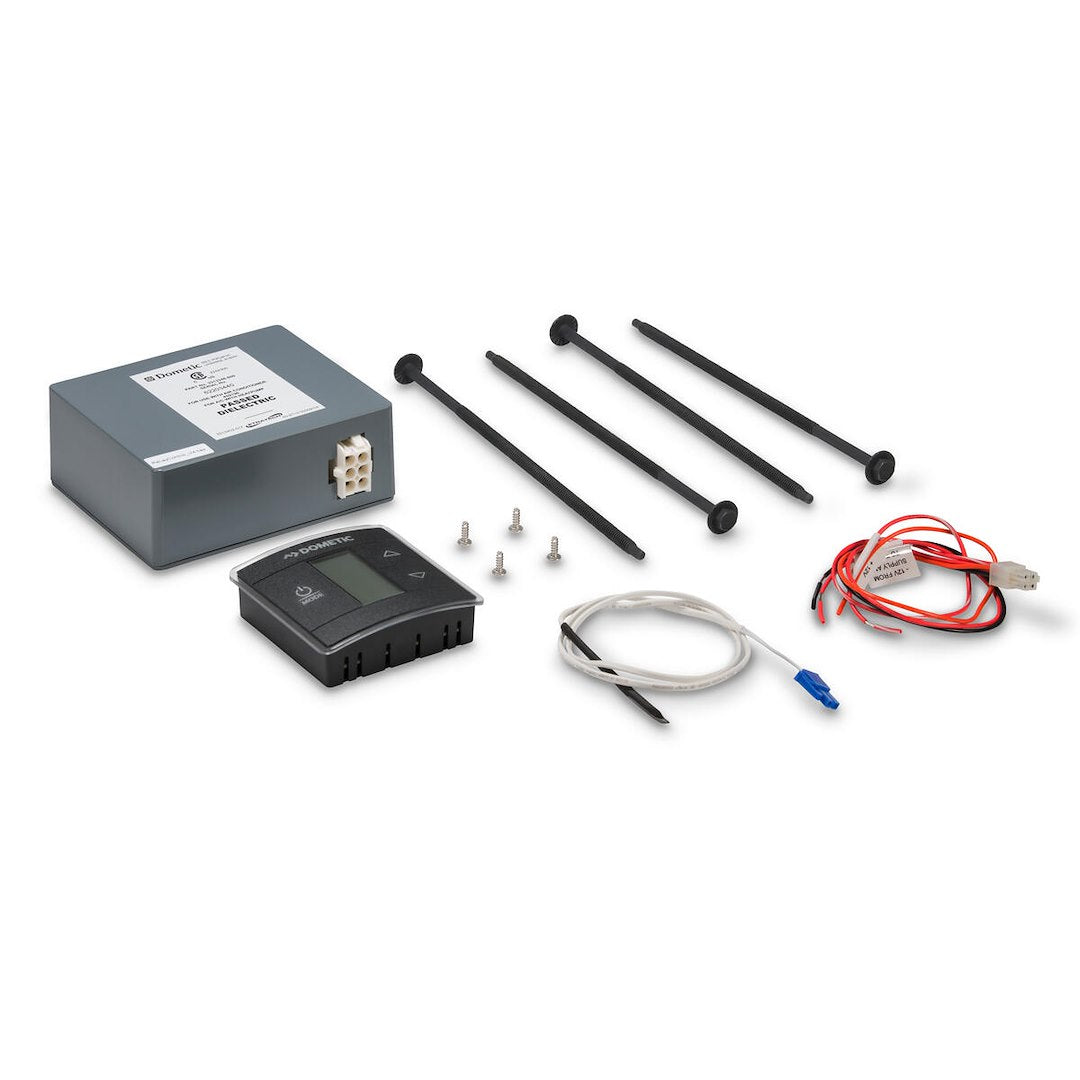

What's in the box is the display head and the control board that pairs with it. That board is the piece that talks to the air conditioner itself, reading your inputs from the panel and switching the compressor, fan, and heat accordingly. Because it's a matched kit, you're not guessing whether the head and the board speak the same language. They ship together for exactly that reason. It's built to work with Dometic air conditioning systems, so if you're running a Dometic air handler, this drops into that setup without adapters.

The face is a capacitive-touch panel, so there are no mechanical knobs or sliders to corrode or stick. Just tap the glass. The LCD shows you setpoint, mode, and fan state at a glance. A quick honest note from the field: capacitive touch wants a bare fingertip. If you're wearing gloves or your hands are dripping wet, it can get finicky, so keep that in mind for where you mount it. And in a spot that catches hard direct sun all afternoon, the LCD can wash out a little, so a shaded location reads best.

Fan control is flexible. You get low, high, and auto speed, plus auto or on mode for the blower. Auto lets the system cycle the fan with the compressor, which is what most folks want for quiet overnight running. Set it to on and the fan runs continuous, handy when you want steady air movement even after the compressor satisfies the setpoint. Auto fan speed does its best to match output to demand, and on most fixed-speed Dometic air handlers it settles in nicely. If you're running a variable-speed pump and the fan seems to hunt, locking it to high smooths things out.

Installation is straightforward for anyone comfortable with 12V wiring, but a few things save you a callback. Confirm your fan and mode leads before you power up. Factory harnesses don't always land the colors where you expect, so check the orange and white fan wires against the wiring diagram first. Keep your 12V supply healthy too. The board wants stable voltage, and if your house bank sags down near 11.5 volts under load, the display can act up. If you're running heat pump mode, make sure the reversing valve is switched through its own relay rather than pulled straight off the board. That keeps the control board cool and happy over the long haul.

One more thing worth planning for. The control board pigtail is on the short side for a long console or cabinet run, so budget a little 18 AWG marine-grade wire to extend it cleanly rather than stretching the factory leads. And because these live in cabins and coaches that see humidity swings, a lot of installers give the board a light conformal coat before buttoning things up. It's cheap insurance against condensation on the touch circuit after a few seasons.

Bottom line, if you've got a Dometic air conditioner that needs a brain, this single-zone kit is the clean, programmable way to get there. LCD display, capacitive touch, cool, furnace, and heat pump modes, and the control board in the box. Wire it in, program your comfort settings, and forget about it.
