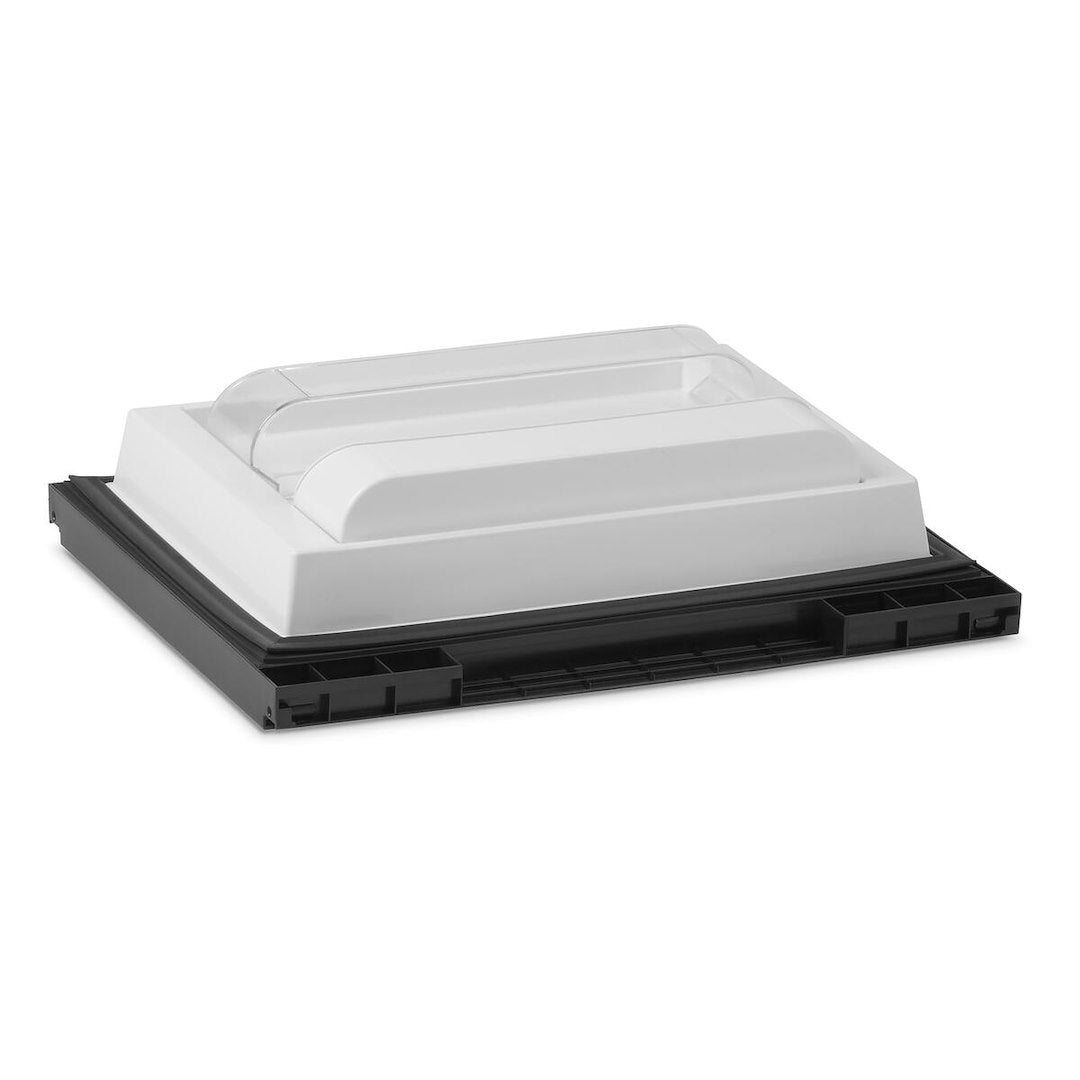

Dometic Americana II Panel-Type Freezer Door Assembly, Black Trim

When the freezer door on your Dometic Americana II refrigerator cracks, fades, or loses a hinge, you don't have to replace the whole unit. This is the factory-style upper freezer door assembly, part number 3316890.900, built to drop straight into the two-door Dometic absorption fridges that live in thousands of travel trailers, fifth wheels, and motorhomes.

It's the panel-type version with black trim. Panel-type means the door frame is designed to hold a thin decorative insert, so you can slide in a laminate or acrylic panel that matches your rig's cabinetry instead of staring at a plain slab. The trim around the door comes finished in black, which is the look most late-model coaches shipped with from the factory. If your old door had a black surround, this is the matching replacement.

This door fits the 6 and 8 cubic foot Americana II models: the DM2672, DM2682, DM2683, DM2872, and DM2882. Those are the classic gas-and-electric absorption refrigerators, the kind that run on propane when you're boondocking and switch to shore power at the campground. The upper door covers the freezer compartment, so this is the smaller of the two doors on that style of fridge, not the tall fresh-food door below it.

Most people reach for this part after a hinge snaps, the trim gets brittle from years of sun through the entry window, or somebody backs a tote into the galley and cracks a corner. Rather than hunting a salvage yard for a used door of unknown age, you get a fresh assembly with sound hinges and unfaded trim. RV service techs keep these on the shelf because the Americana II ran for so many model years that they're still one of the most common absorption fridges rolling into the bay.

A couple of install notes are worth knowing before you order. Dometic's own service manual points out that door hinge profiles changed across production runs, so it's smart to compare your existing hinge to the replacement before you pull everything apart. The freezer door and the lower fresh-food door share a look, so if yours is scuffed too, replacing both at once keeps the finish consistent. It's also a good time to check the magnetic door gasket. An old, compressed gasket won't seal cleanly against a new door lip, and a poor seal is what drives up frost and runs your cooling unit harder than it should.

Here's what this part is not, so there are no surprises. It isn't the lower fresh-food door, which is a separate assembly. It isn't the decorative insert panel itself, which slides in separately and is sold on its own so you can pick your finish. And it isn't a fit for the newer Dometic residential-style or NDR-series RV refrigerators, which use a completely different door design. If your data plate reads DM2672 through DM2882, you're in the right place.

Installation is straightforward for anyone comfortable with a screwdriver. The door mounts with a small number of screws and the hinge pins, and swapping it usually takes less time than a full defrost cycle. If you're doing the job during a travel stop, snug the mounting hardware and recheck it after the first day on the road, because road vibration can back screws out on any RV appliance. A drop of threadlocker on the hinge screws is cheap insurance you'll be glad you added. Hang onto the old door until you've confirmed the new one lines up, since it gives you a handy reference for the hinge orientation and the panel retainer strip.

Order the door that keeps your galley looking finished and your freezer sealing tight, backed by Dometic's decades of building the absorption refrigerators that RVers actually rely on.
