Dometic 9100 Power Patio Awning Arm Hardware Set, Black with Top LED

If your Dometic 9100 Power Patio Awning needs a fresh set of arms, or you're rebuilding the drive side after a road mishap, this is the full powered hardware assembly you're looking for. It's the Standard model set, finished in black, wired for the top LED exit, and built for coaches with straight sides. You get the powered awning arms and the mounting hardware together as a complete set. Think of it as the muscle of the 9100 system, the part that pushes the awning out and pulls it back in at the touch of a button.

Here's the thing to nail down before you order. This is the Standard model, which mounts on the wall of the coach the way most travel trailers and fifth wheels are set up. It's cut for straight-side RVs, so if your coach has a flat sidewall where the awning bolts on, this is the right hardware. It's not the basement style that some larger motorhomes use. Match the model to your rig and the install goes smooth. Get it wrong and nothing lines up, so check your existing setup first.

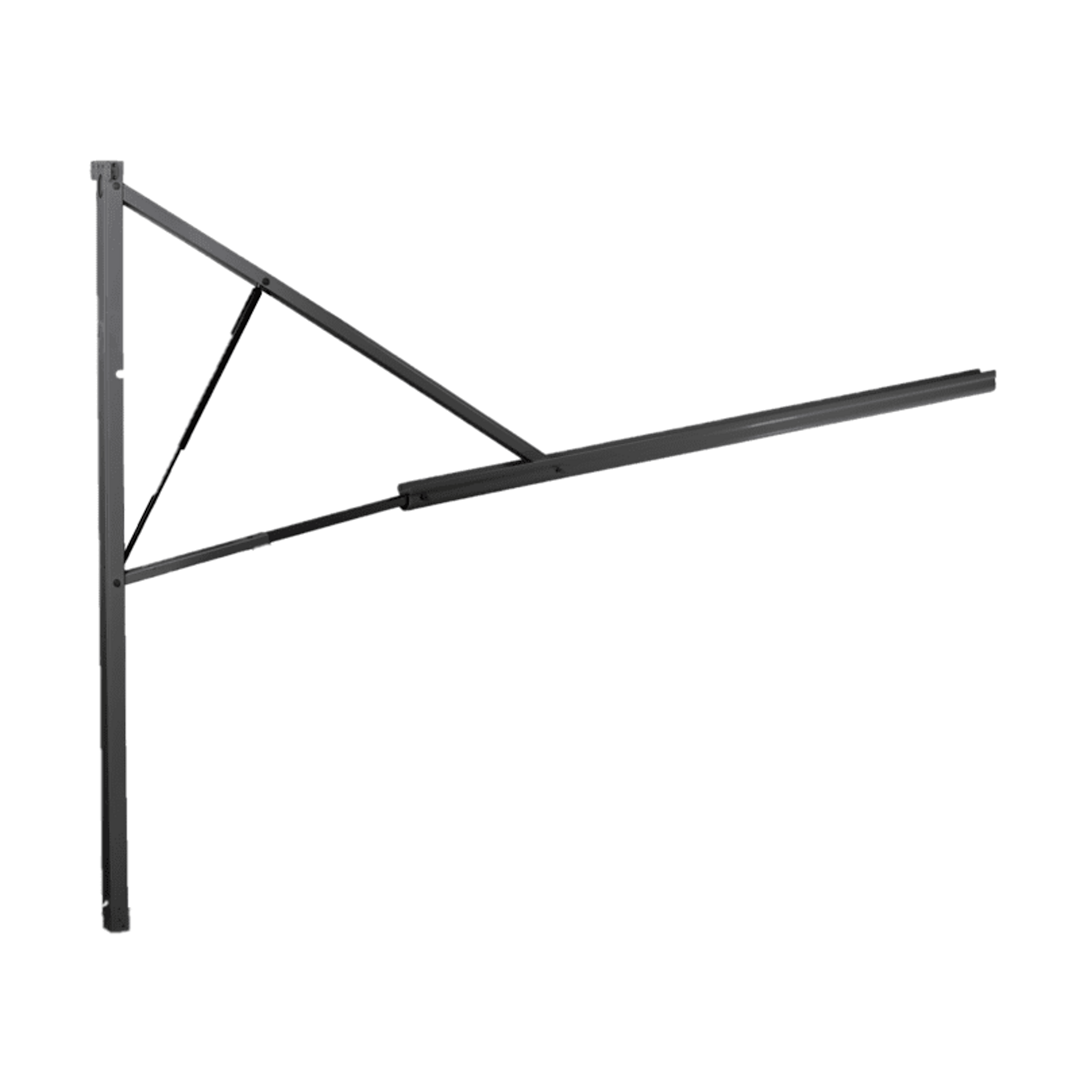

The full set means you're not hunting for missing pieces. Both powered arms, the brackets, and the hardware come together, all in a black powder-coated finish that shrugs off sun and weather better than bare metal. The powder coat isn't just for looks. It's what keeps the arms from chalking and corroding after a few seasons parked in the sun. Black also hides road grime and matches the trim on most modern coaches, so the awning reads as part of the rig instead of an add-on.

These arms are set for a 2 degree pitch. That slight downward angle matters more than it sounds. Pitch is what sends rainwater running off the front edge of the fabric instead of pooling in the middle and turning into a sagging, dripping mess. The 2 degree setting is a sensible middle ground for most owners, enough tilt to shed water and knock down early morning and late afternoon sun, without dropping the front edge so low you're ducking under it every time you step outside.

The LED wire exit sits at the top on this set. If your 9100 awning runs the integrated LED light strip along the roller, the wiring needs a clean path from the arm up into the coach, and this hardware routes it out the top. That keeps the harness tucked and protected instead of dangling where it can snag or chafe. When you're wiring in, follow the exit path this hardware is built for so the lights and the awning motor stay happy.

One honest note on what this is and isn't. This is the powered arm hardware only. It doesn't come with the awning fabric or the roller tube. If your fabric is still good and you're just replacing tired or damaged arms, you're in the right place. If you need the whole awning, fabric and all, that's a different part number. We'd rather tell you that up front than have a box show up missing the piece you actually needed.

Install is doable for a handy owner. Dometic rates the 9100 as a job one person can handle with brief help from a second set of hands, mostly for holding the assembly steady while you bolt it up. You'll want the coach on level ground, the old hardware off, and the mounting points clean before you start. Take your time on the electrical connections and the pitch adjustment, and test the extend and retract cycle a few times before you call it done.

Once it's on, treat it like any powered awning. Keep an eye on the wind. An RV patio awning starts getting nervous around 15 to 20 mph, and anything over 25 mph can bend arms or tear fabric, so roll it in when the weather turns or when you leave the site for the day. Do that, keep the arms clean, and this Dometic hardware will run for years. It's the same quality drive gear that came on the coach, ready to bolt on and get you back in the shade.
