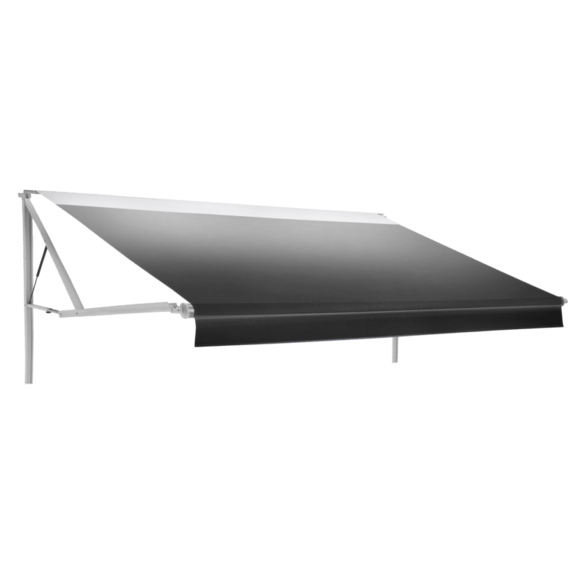

Dometic 9100 Power Patio Awning 17ft Onyx with LED

The Dometic 9100 is the power patio awning a lot of RVers upgrade to when they're tired of wrestling a manual awning at every campsite. Press a wall switch, and the motor rolls it out or pulls it back in. No cranking, no fighting the arms, no ladder. This one is the 17-foot model with an 8-foot extension, wrapped in Onyx double-sided vinyl with a Polar White weathershield and matching Polar White end castings. It's got the integrated LED light strip built into the roller, so you get soft lighting over your outdoor space once the sun drops.

We see these go on travel trailers, fifth wheels, and Class A and Class C motorhomes all the time. The 17-foot length covers the roller tube measurement, and the awning throws 8 feet of shade out from the coach. That's enough to sit two or three camp chairs and a small table underneath and stay out of the afternoon sun. The double-sided vinyl fabric is the tougher of the two Dometic fabric options. It wipes clean, sheds water, and holds up to UV a lot better than a lightweight acrylic when you're parked somewhere sunny for weeks at a time.

Here's the one thing you need to know before you order, and we want to be straight with you about it. The hardware and control switch kit are not included with this awning. This part number is the fabric-on-roller assembly with the arms and castings. You buy the mounting hardware and the 12-volt wall switch separately, matched to your coach and to the arm style you want. That's normal for the 9100 line, since a reduced-arm setup, a standard-arm setup, and a basement-arm setup all mount differently and pitch differently. But it does mean you can't just bolt this on out of the box without the matching kit.

Speaking of pitch, the arm style sets how much the awning drops as it extends. Reduced arms sit at about a 2 degree pitch, standard arms at roughly 13 degrees, and basement arms at around 20 degrees. More pitch sheds rain better and keeps water from pooling on the fabric. Less pitch gives you more headroom at the outer edge. Which one's right depends on your RV's sidewall height and how you like to use the space, so it's worth thinking through before you pick your hardware kit.

The weathershield is the piece that makes the 9100 last. When the awning's rolled up for travel or storage, that Polar White vinyl wrap covers the fabric completely, so road grime, UV, and rain stay off the Onyx material. It's a simple thing, but it's the difference between fabric that looks good after five seasons and fabric that's chalky and faded. The motor and the LED strip both run off your coach's 12-volt system, wired through the switch kit you supply.

On the install side, this is a moderate job for a handy owner but not a five-minute swap. You're pulling the old awning, mounting the arms and the roller bracket to the sidewall, and running the 12-volt wiring from the switch to the motor. The matching hardware kit gives you the brackets and fasteners sized for your arm style, and the switch kit handles the electrical side. If you've done RV projects before, you can tackle it in an afternoon with a helper, since the roller assembly is long and awkward to handle solo. If wiring isn't your thing, any RV service shop can knock it out quickly.

Who's this for? Anybody replacing a tired manual awning, or an older power awning where the fabric's shot or the motor's given up. If you camp a lot and you're done cranking an awning out by hand in the heat, the powered operation alone is worth it. The LED strip is a nice bonus for anyone who spends evenings outside the coach. Just remember the golden rule with any awning: roll it in before the wind picks up. Even a good power awning like this one isn't built to ride out a storm fully extended, and a gust can bend arms or tear fabric in a hurry. Retract it when you leave the site, retract it overnight, and it'll serve you for a long time.
