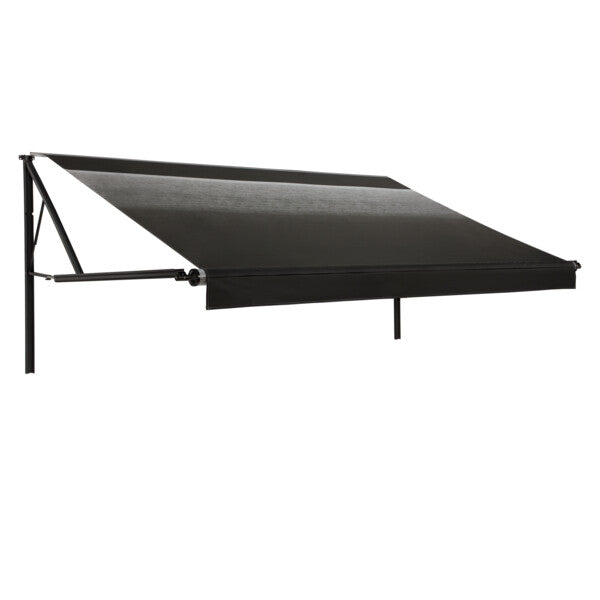

Dometic 9100 Power Awning 16' Roller Tube Assembly, Black, LED

When the fabric on your Dometic 9100 Power Awning finally gives out, you don't have to replace the whole awning. This is the fabric roller tube assembly, the part that actually rolls in and out over your slide or entry door. It's built for the 16-foot electric version with an 8-foot extension, and it ships as one complete unit: the aluminum roller tube, the black vinyl fabric already attached, the black vinyl weather cover that protects everything when the awning is stowed, the black end cap castings, and an LED light strip run right into the assembly.

Most folks buying this are doing a repair. Maybe the old vinyl cracked after too many summers in the sun, maybe a gust caught the awning and tore it, or maybe the light strip quit. Whatever brought you here, this assembly gets your rig back to shade-and-lights condition without a full teardown of the arm hardware. If your 9100 is a 16-foot model and the arms, motor mount, and mounting brackets are still solid, this is the piece you swap.

The 9100 is a powered awning, so the roller extends and retracts at the press of a switch instead of a hand crank. This assembly carries the motorized roller tube and the wiring for the LED light strip, which runs along the roller and throws an even wash of light across your patio area at night. No more dragging out a separate string of lights or fighting an extension cord across the campsite. The strip is built in and comes out with the roller when the awning extends.

Here's the part to read twice. The hardware and control switch kit are not included and must be purchased separately. That means the support arms, the mounting brackets, and the wall control switch are their own purchase. This assembly is the roller-and-fabric half of the awning. If you're replacing an existing 9100 that already has good arms and a working switch on the wall, that's exactly why this piece is sold on its own, so you're not paying twice for hardware you already have bolted to the coach.

Swapping a roller tube assembly is a two-person job. One person supports the roller while the other frees it from the arm castings, and you'll want the awning rolled out on a calm, dry day with no wind in the forecast. Vinyl is heavy and it likes to catch air. Take your time indexing the fabric so it rolls straight, get the end caps seated square, and reconnect the LED wiring before you button it up. Most RV owners with a socket set and a helper can knock this out in an afternoon.

The fabric is black vinyl, and the weather cover, the piece that wraps the rolled-up awning when it's stowed for travel, is black vinyl too. The end cap castings are black to match. Vinyl is the easy-care choice for an awning like this. It wipes down with soap and water, sheds a passing rain, and doesn't soak through the way woven fabric can. Keep it clean, let it dry before you roll it up for a long haul, and it'll give you years of shade.

The 9100 Power Awning is one of the more common factory-fit powered awnings out there, which is good news at repair time. A roller assembly like this is made to drop back into the same arm geometry, so you're restoring the awning to how it left the factory rather than fighting a mismatch. Match the part number to your old unit and the fit is straightforward.

One last thing on sizing. The 16-foot measurement is the length of the awning along the side of your RV, and the 8-foot number is how far it reaches out from the wall when fully extended. If your coach was built around the 18-foot version, this 16-foot assembly won't span the same opening, so match the length to what came off your rig. When in doubt, measure the old roller tube tip to tip before you order.
