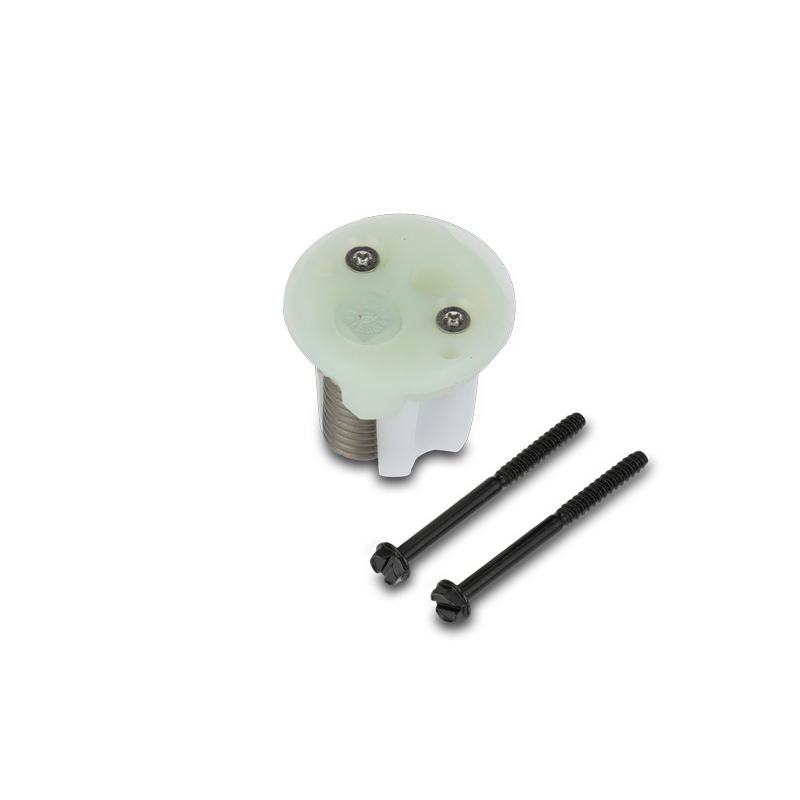

Dometic 510 Plus & 511H Spring Cartridge 385236096

If your Dometic 510 Plus or 511H toilet has stopped holding water in the bowl, the spring cartridge is one of the first parts worth checking. This is the genuine Dometic spring cartridge assembly, part number 385236096, and it's the return spring that keeps the flush mechanism sealing the way it did the day the head was new. It's a small part. But it does a big job every single time you use the head.

Here's how these gravity-flush heads work. When you step off the flush pedal, a spring pulls the flush ball back into the closed position so the bowl reseals and holds a little water. That standing water is what forms the odor seal between your bathroom and the holding tank below. Over the seasons the original spring loses tension, or salt and hard water gum it up, and the ball stops snapping fully closed. The result is the classic complaint we hear all the time. The bowl won't hold water, and pretty soon you start smelling the tank. Sometimes the pedal feels loose or lazy on the return, too. That's the spring telling you it's tired.

This assembly is the genuine Dometic replacement for that spring mechanism, so you get the correct tension and fitment for the 510 Plus and 511H series. There's no guessing on aftermarket spring rates or shimming a part that almost fits. It drops into the same spot the factory spring came out of, and it works with the flush ball hardware that's already in your head.

The job itself is a manageable one for most boat and RV owners. You'll be working down at the base of the toilet where the flush ball and shaft live, so it helps to shut off the water supply and flush the bowl dry first. The spring cartridge comes out and the new one goes in as a single assembly, which keeps the fiddly little internal parts together and takes a lot of the guesswork out of the rebuild. Give yourself good light, a clear work area, and a little patience, and it's an afternoon fix rather than a haul-out or a service call.

A quick word on scope, because it saves people a second teardown. If the only symptom is a weak return and a slow reseal, this spring cartridge on its own usually brings the head right back to life. But if the flush ball itself is scored, or the seal around it has worn flat, you'll want to service the ball and shaft at the same time. When we rebuild one of these on the bench, we always look at the whole flush ball assembly while it's apart. It's cheap insurance, and it beats being back down there on your knees a month later.

Because it's a genuine Dometic part, it carries the fit and finish you'd expect from the original equipment, and it keeps your repair inside the manufacturer's own parts line. That matters if the head is still under any coverage, and it matters for resale when it's time to sell the boat or the rig. We stock the real thing, not a look-alike that leaves you wondering why the pedal still feels off.

So who's this for? Anyone running a Dometic 510 Plus or 511H series toilet who wants to fix a bowl that won't hold water without spending real money on a whole new unit. It's the smart first move. Order the spring cartridge, check the ball and seal while you're in there, and you'll get plenty more seasons out of a head that's already installed and plumbed. And if you're not sure whether the spring or the ball is your real problem, give us a shout and we'll help you sort out the diagnosis before you order.
