Dometic 401 Series Round Bone Low-Profile Toilet
Dometic 401 Series Round Bone Low-Profile Toilet — Product description

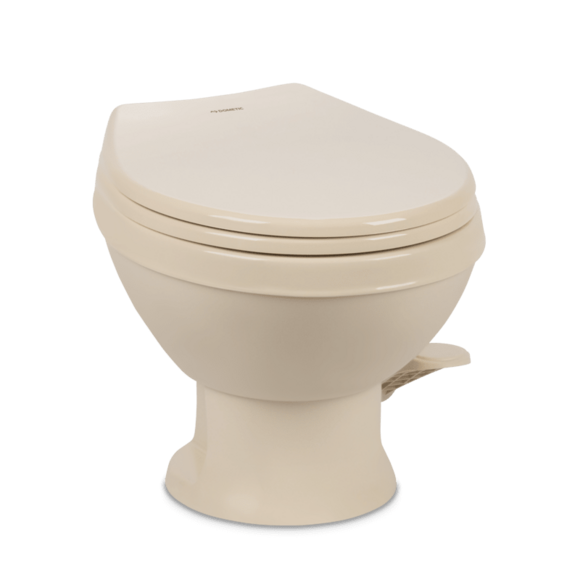

The Dometic 401 Series is a permanent, pedal-flush toilet in bone with a low 13-1/2 inch round seat, built for boats and RVs where headroom and floor space are tight. Triple-jet bowl rinse, soft-close seat and lid, and a simple 2-bolt mount make it a clean upgrade from a portable head.
The Dometic 401 Series is a permanent, pedal-flush toilet built for boats and RVs where floor space is tight and you still want a full-size seat. This one is the bone, low-profile version with a round seat that sits just 13-1/2 inches off the sole. That low seat height is the whole point. It tucks into cramped mid-cabin heads and short-headroom RV bathrooms without you cracking your knees on the bulkhead every time you sit down. If your compartment is on the smaller side, this is the model to look at first.
If you've ever wrestled with a cheap portable head on a weekend cruise, this is the step up. It's a fixed installation that plumbs into your holding-tank system, so there's no jug to haul to the pump-out. You flush with a foot pedal, which keeps your hands free and makes the whole thing feel a lot more like the toilet back home. The triple-jet bowl rinse is the part people notice first. Three water jets fire around the rim on every flush and scrub the bowl clean, so you're not standing there hitting the pedal five times to get it right. Less water, cleaner bowl, fewer smells.
The seat and lid are soft-close, and on a boat that matters more than you'd think. No slamming lid at 2 a.m. when someone's making a head call in a seaway. The round seat is full residential size, so guests who've never set foot on a boat won't feel like they're perched on something built for a dollhouse. The whole unit is molded plastic in a bone finish, which keeps the weight down and shrugs off the damp, salty air that eats at anything metal in a marine head.
Dimensionally it's compact. 15-1/4 inches tall, 15-1/4 inches wide, and 17-3/4 inches deep, with a compact rear profile that helps it sit tight against a bulkhead. It uses a straightforward 2-bolt mounting system, so if you're swapping out an old fixed head, the install is usually a matter of setting it over the existing flange and bedding it down. One tip from years of doing these. On a fiberglass sole that isn't dead flat, bed the base in sealant and check for rock before you snug the bolts. A toilet that rocks will work its seals loose and start to weep, and nobody wants that job twice.
On the plumbing side, run it with standard 1-1/2 inch sanitation hose and, on a boat, put a vented loop well above the waterline in the discharge run. That vented loop keeps seawater from siphoning back and flooding the bowl, and it's the single most common thing folks skip and then regret. Keep your hose runs as short and straight as you can so the pedal linkage isn't fighting a long, kinked path. Short runs flush better and the pedal stays light underfoot.
A couple of honest notes. This is the version without a hand sprayer, so if you're a liveaboard who wants a bidet-style wand for cleanup, know that going in. The bone color looks sharp, but it does show hard-water and tannin staining a little faster than bright white, so a periodic vinegar flush keeps the bowl looking new. And the soft-close hinge is nice, but it's still a hinge. Don't use the lid as a grab handle when the boat's pitching and it'll give you seasons of service.
Who's it for? Owners of small to mid-size boats and RVs who want a real, fixed toilet with residential comfort and a low profile that fits a tight compartment. It's a clean, reliable, no-drama head from a company that's been building onboard sanitation systems since 1960. Get the cutout and headroom right, plumb it properly, and you'll forget it's there. Which is exactly what you want from a marine head.
Key Features
- Round seat with a 13-1/2 inch seat height for a low, compact profile that fits tight cabin heads and short-headroom RV bathrooms
- Pedal flush control leaves your hands free and works like the toilet back home
- Triple-jet bowl rinse fires three water jets around the rim to scrub the bowl clean on every flush
- Soft-close seat and lid stop the slamming underway for quieter nights aboard
- 2-bolt mounting system makes for a simple install over an existing fixed-head flange
- Bone molded-plastic construction is lightweight and shrugs off damp, salty marine air
- Compact footprint of 15-1/4 in H x 15-1/4 in W x 17-3/4 in D with a compact rear profile for small compartments
- Permanent installation plumbs into your boat or RV holding-tank system, so there's no portable jug to empty
- Supplied without a hand sprayer for a cleaner look and fewer fittings
Why Buy from NVN Marine
- Authorized Dometic reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Dometic 401 Series Round Seat Low-Profile Toilet, Bone |
|---|---|
| Brand | Dometic |
| Manufacturer Part Number | 9610008279 |
| UPC | 7315091577182 |
| Model | 401 Series |
| Installation Type | Permanent |
| Seat Style | Round |
| Seat Height | 13-1/2 in |
| Flush Control | Pedal |
| Bowl Rinse | Triple-Jet |
| Color | Bone |
| Material | Plastic |
| Overall Height | 15-1/4 in |
| Overall Width | 15-1/4 in |
| Overall Depth | 17-3/4 in |
| Hand Sprayer | Not included |
| Mounting System | 2-Bolt |
| Seat and Lid | Soft Close |
Frequently asked questions
Is this a round or elongated seat?
It's a full residential-size round seat. The round shape helps keep the overall footprint compact for tight heads and RV baths.
How tall is the seat?
The seat sits 13-1/2 inches off the floor. This is the low-profile model, which is why it fits compartments where a taller toilet won't clear the headroom.
Does it come with a hand sprayer?
No. This version ships without a hand sprayer. If you want a bidet-style wand for cleanup, plan to add one aftermarket.
What color is it?
Bone. It's a warm off-white that looks clean in most heads and RV baths.
How does it mount?
It uses a 2-bolt mounting system. On a swap-out you usually set it over the existing flange and bolt it down. Bed the base in sealant and check for rock before you snug the bolts, especially on a fiberglass sole.
What are the overall dimensions?
15-1/4 inches tall, 15-1/4 inches wide, and 17-3/4 inches deep, with a compact rear profile that helps it fit against a bulkhead.
Does the seat and lid soft-close?
Yes. Both the seat and lid are soft-close, so there's no slamming when the boat's moving. Just don't use the lid as a grab handle in rough water.
Is this for a boat or an RV?
Both. The Dometic 401 Series is a permanent toilet designed for marine and RV holding-tank systems.
How does it flush?
A foot pedal triggers the flush, and the triple-jet bowl rinse washes the bowl with three water jets on each cycle. Run it with standard 1-1/2 inch sanitation hose and, on a boat, add a vented loop above the waterline to prevent back-siphoning.
