Dometic 36160 DF Series Furnace Sail Switch

A furnace sail switch is a small part with a big job. On your Dometic DF Series furnace, it's the piece that confirms the blower is actually moving air before the control board is allowed to open the gas and light the burner. No airflow, no ignition. That's exactly how it should work, because lighting propane inside a furnace that isn't moving air is how you get soot, delayed ignition, and worse. This is the genuine Dometic 36160 replacement, the flat blade style switch, in black.

Here's how it does its job. As the blower motor comes up to speed, moving air pushes on the switch's sail, a light flat blade that sits right in the airstream. Once the motor hits roughly 75 percent of its rated rpm, that moving air holds the sail closed and the switch tells the board it's safe to ignite. Spin the wheel too slow, or not at all, and the sail never closes, so the board keeps the gas valve shut. It's a simple mechanical air proving device, and it's one of the most important safety parts in the whole furnace.

So when does it fail? The classic symptom is a furnace that runs the fan but never lights. You hear the blower, you feel air moving, and then nothing. Silence, no burner, maybe a lockout. When that happens there are really only three suspects: the sail switch, the limit switch, and the control board. The sail switch is the cheapest and most common of the three, and it's usually where we start. A tired switch, a bent sail, or dirty contacts will leave the burner cold even though everything else looks fine.

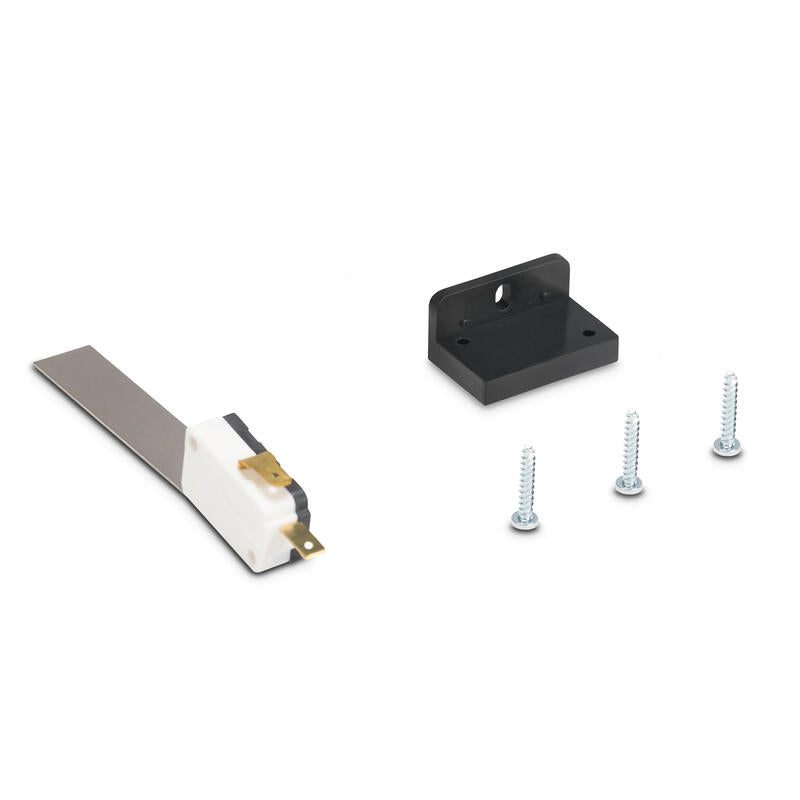

This kit isn't just the bare switch. It ships with the 33063 flat blade sail switch and an updated sail switch bracket matched to your furnace, so you get the correct geometry when you drop it in. It also supersedes the older Dometic 33081, so if that's the number on your old part, this is the current replacement. Keep the wiring orientation the same as the part you pull, and you're most of the way there.

Fitment matters here, so check before you order. This switch is built for Dometic Small, Medium, and Large DF Series furnaces with a serial number that begins with 724, which covers the furnaces built after the 72498929 production change. The serial number is printed on the furnace data label, usually inside the return air compartment. If your furnace burns liquid propane and the serial starts with 724, you're in the right place. If it starts with something else, stop and confirm, because an older housing may want a different bracket.

One more note. Because this is a safety component, it's not the place to improvise. The sail has to be the right length and stiffness, and the bracket has to hold it in the correct spot in the airstream, or the switch either nuisance trips or fails to prove airflow at all. That's why we stock the matched Dometic kit rather than a generic blade. Get the airflow proving right and the rest of the furnace can do its job the way it was designed to.

Who's this for? RV owners chasing a no heat problem on a cold morning, and techs who want the genuine part instead of a guess. It's a straightforward repair that most owners can handle with a nut driver and a few minutes, and getting the right switch the first time means you're back to warm air instead of chasing the same fault twice. And it's the genuine Dometic component, not a generic guess, so the fit and the safety margin are exactly what the furnace was engineered around. Small part. Real peace of mind when the temperature drops.
