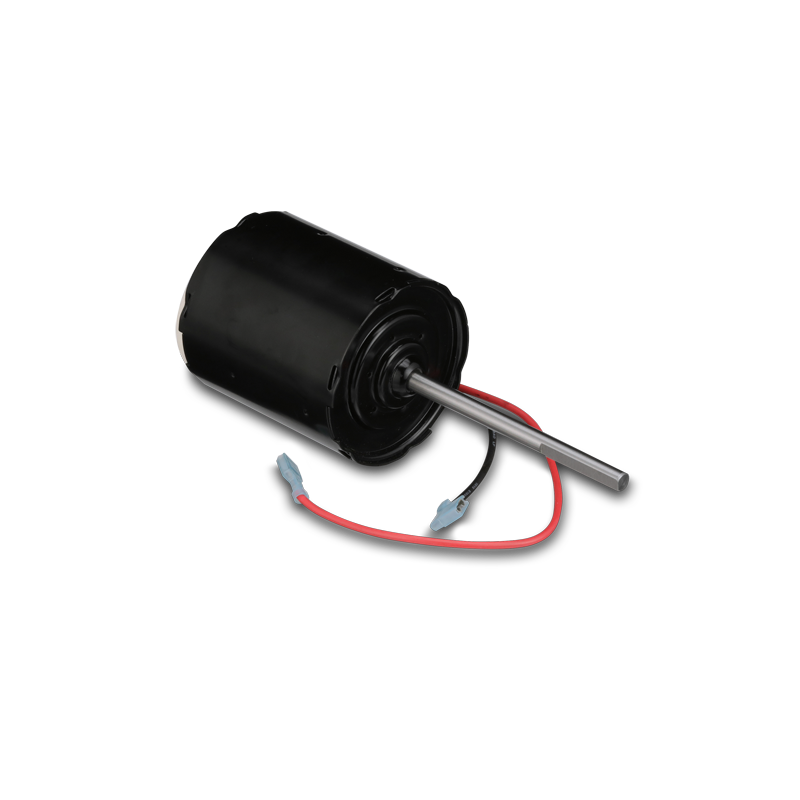

Dometic 30722 Furnace Blower Motor Kit, Atwood AFMD25/30

When the blower quits, the whole furnace quits. That's just how these forced-air units work. The Dometic 30722 is the genuine replacement blower motor kit for Atwood AFMD25 and AFMD30 furnaces, plus the matching Dometic DFMD25 and DFMD30 models. Same Hydro Flame platform, same motor. If yours is grinding, squealing, spinning slow, or not spinning at all, this is the part that gets heat moving through your rig again.

Here's the thing a lot of RV owners don't realize about these furnaces. The blower does two jobs at once. It pulls combustion air through the burner and it pushes warm air out into the coach. And it has to prove it's running before the furnace will even light. There's a sail switch downstream of the blower wheel, and the airflow from a healthy motor is what closes that switch. Only then does the control board open the gas valve and fire the igniter. So a tired blower motor doesn't just make noise. It can stop your furnace from lighting at all.

That's why a weak or noisy motor is worth catching early. You'll usually hear it before it dies. A bearing that's going will whine or rumble on startup. A motor that's dragging will spin up slow, and on a cold morning you might hear the furnace try, click, and shut back down because the sail switch never closed. Swap the motor and those symptoms clear right up.

The 30722 covers both the 25,000 BTU and the 30,000 BTU furnaces in this family. Atwood built these units, Dometic owns the line now, and the AFMD and DFMD part numbers are the same furnace wearing two badges. If your furnace tag reads AFMD25, AFMD30, DFMD25, or DFMD30, this is your motor. It's the genuine Dometic part, number 30722, not a generic substitute, so it drops into the factory blower housing without you having to modify the plenum or the mount.

Before you order, it's worth confirming the motor is actually the problem. A furnace that lights and then drops out after a few seconds is usually a sail switch or a dirty flame sensor, not the blower. But a furnace that won't spin up, spins weakly, or makes the blower section growl and grind, that points straight at the motor. If the wheel is hard to turn by hand with the power off, or it wobbles on the shaft, the bearings are done. This kit puts a fresh motor back in the same spot the old one came out of.

Installation is a job most handy RV owners can tackle in an afternoon, but respect what you're working on. This is a gas appliance. You'll pull the furnace or drop the access panel, disconnect the 12-volt power, unbolt the old motor from the blower wheel and housing, and transfer things over to the new motor. Take your time getting the wheel seated and balanced so it doesn't rub. If you're not comfortable around propane furnaces, have a qualified RV tech handle it. There's no shame in that, and it beats chasing a fault you introduced yourself.

Who's this for? Anyone running an older Atwood or Dometic Hydro Flame furnace who wants heat they can count on. Full-timers heading into winter. Weekend campers tired of a furnace that only fires half the time. Folks getting a rig ready to sell who want the heat working right. It's a common wear part on a furnace that runs hard through a cold season, and it's the kind of thing that always seems to give out on the first freezing night of a trip. Keeping a known-good motor in the parts bin isn't a bad idea if you camp in the cold a lot. It's cheap insurance against a long, chilly night waiting on parts.
