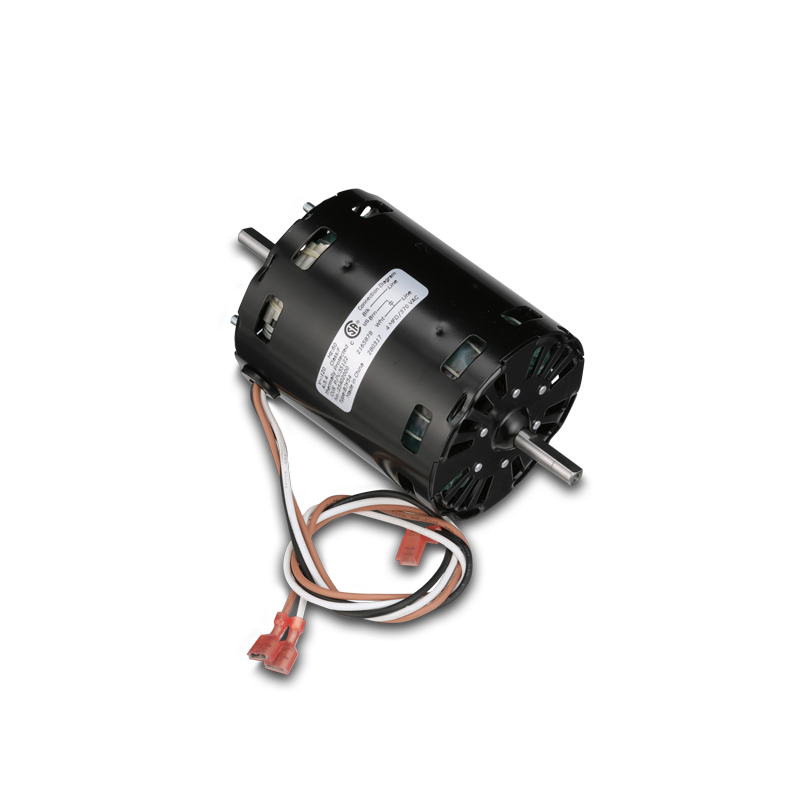

Dometic 30132 Furnace Motor for Atwood 89 Series AC Furnaces
Dometic 30132 Furnace Motor for Atwood 89 Series AC Furnaces — Product description
The Dometic 30132 is the factory replacement blower motor for Atwood 89 Series AC furnaces. It's the current part number for the old 35122, and it runs on 120V AC, so it's built specifically for the shore-power and generator-fed units like the 8935-AC-III and 8940-AC-III.
If you own an Atwood 89 Series furnace and the fan just won't spin up, or it spins but the burner never lights, the blower motor is one of the first parts to check. The Dometic 30132 is the factory replacement motor for that job. It's the current part number for the old 35122, so if you've been searching for a 35122 and coming up empty, this is what took its place.
Here's the thing that trips people up. The 89 Series AC furnaces run a 120V AC blower motor, not the 12V DC motor you'll find in a lot of other RV furnaces. That AC in the model name is telling you exactly that. So this motor is built specifically for the shore-power and generator side of those units. If your rig has an 8935-AC-III or an 8940-AC-III, this is the motor that belongs in it.
We've swapped a fair number of these over the years, and the failure story is almost always the same. The bearings get tired, the motor slows down, and the furnace's sail switch never sees enough airflow to close. No closed sail switch means the board won't let the burner light, so you get a fan that runs but no heat. Or the motor seizes outright and you get nothing at all. Either way, a fresh motor brings the airflow back and the furnace starts cycling normally again.
The part ships as a service motor kit for the 89 Series, so you're getting the motor built to drop into that furnace chassis. It's a genuine Dometic part, which matters here because the motor has to move the right volume of air to satisfy the sail switch and keep the heat exchanger cool. A random hardware-store blower won't do that. Getting the correct motor is the difference between a furnace that runs safe and one that short-cycles or overheats.
Replacing it is a reasonable afternoon job if you're handy. You'll pull the furnace access, disconnect the 120V leads, unbolt the old motor and blower wheel, and transfer the wheel over to the new motor if your kit doesn't include one. Take a photo of the wiring before you touch anything. And confirm you've actually got an 89 Series AC unit before you order, because Atwood built both AC and DC furnaces and the motors are not interchangeable.
One note on the brand history. Atwood's furnace line, sold under the Hydro Flame name, became part of Dometic. So an Atwood furnace, a Hydro Flame furnace, and a Dometic furnace of this vintage are all the same family, and this motor carries the current Dometic part number. If your old label says Atwood or Hydro Flame, you're still in the right place.
If you're not sure whether the motor is your problem, start simple. Check that you've got 120V at the furnace, listen for the motor trying to start, and feel for airflow at the registers. A motor that hums but won't turn, or one that's noticeably weak, is a good candidate for replacement. When in doubt, give us a call and we'll help you sort out whether it's the motor, the sail switch, or the board.
Because it's the current factory number, the 30132 also future-proofs your repair. Parts for older Atwood furnaces get scarce, and chasing a discontinued 35122 on auction sites usually means paying more for a used part with unknown hours on it. Buying the superseded number new means you get a motor with fresh bearings and a full warranty behind it. For a furnace you're trusting to run overnight in cold weather, that kind of reliability is worth it, and it saves you a second repair down the road when a used part gives out.
Key Features
- 120V AC blower motor built for the shore-power and generator-fed 89 Series furnaces, not the 12V DC units
- Current Dometic part number 30132, the direct replacement for the superseded Atwood 35122
- Fits Atwood 89 Series AC furnaces including the 8935-AC-III and 8940-AC-III
- Genuine Dometic service part, sized to move the airflow the sail switch needs to let the burner light
- Black factory finish matched to the original motor
- Restores proper airflow so a furnace that runs but won't heat can cycle normally again
- Covers the Atwood and Hydro Flame furnace family now sold under the Dometic name
Why Buy from NVN Marine
- Authorized Dometic reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Dometic 30132 Furnace Motor for Atwood 89 Series AC Furnaces |
|---|---|
| Brand | Dometic |
| Manufacturer Part Number | 30132 |
| UPC | 713814264567 |
| Voltage | 120V AC |
| Color | Black |
| Superseded Part Number | 35122 |
| Component Type | Furnace Blower Motor |
| Compatible Furnace Series | Atwood 89 Series AC |
| Compatible Furnace Models | 8935-AC-III, 8940-AC-III |
| Furnace Brand Family | Atwood / Hydro Flame |
| Sold As | Furnace Service Motor Kit |
Frequently asked questions
What part does the Dometic 30132 replace?
It replaces the older Atwood 35122. That part number was superseded by the 30132, so if your furnace label or old motor is marked 35122, the 30132 is the current part you want.
What does the AC in 89 Series AC mean?
It means the blower motor runs on 120V AC, off shore power or a generator, rather than the 12V DC that most RV furnace blowers use. Atwood built both styles, so it matters that you match the AC motor to an AC furnace.
Which furnaces does this motor fit?
It fits Atwood 89 Series AC furnaces, including the 8935-AC-III and 8940-AC-III. Confirm you have an 89 Series AC unit before ordering, since the AC and DC motors are not interchangeable.
My Atwood furnace fan runs but there's no heat. Is the motor the problem?
It can be. If the motor has weakened, it won't pull enough air to close the sail switch, and the board won't let the burner light. A fan that spins but never fires is a classic sign of a tired blower motor, though the sail switch and control board are worth checking too.
Where is the sail switch on an Atwood furnace, and how does the motor affect it?
The sail switch sits in the blower's airflow path and closes only when the motor moves enough air. That's a safety interlock that proves airflow before the burner lights. A slow or failing motor can't close it, which is why a weak blower shows up as no heat.
My Atwood furnace has a flashing light. What does that mean?
The 89 Series boards report fault codes through that light. Check your Atwood Hydro Flame shop manual for the specific code count. A blower that can't build enough airflow to satisfy the sail switch is one common cause of a fault, so a weak motor can be behind it.
Is this a genuine Dometic part?
Yes. It's the genuine Dometic 30132 service motor. Using the correct factory motor matters because it's sized to move the exact airflow the furnace needs to run safely.
Is Atwood the same as Hydro Flame and Dometic?
Yes. Atwood's furnace line was sold under the Hydro Flame name and later became part of Dometic. Furnaces of this vintage carry all three names across the years, and this motor uses the current Dometic part number.
Does the kit include the blower wheel?
It ships as a service motor kit for the 89 Series. Before you install, check whether your old blower wheel needs to transfer to the new motor, and reuse it if so. Snap a photo of your setup before you take anything apart.
