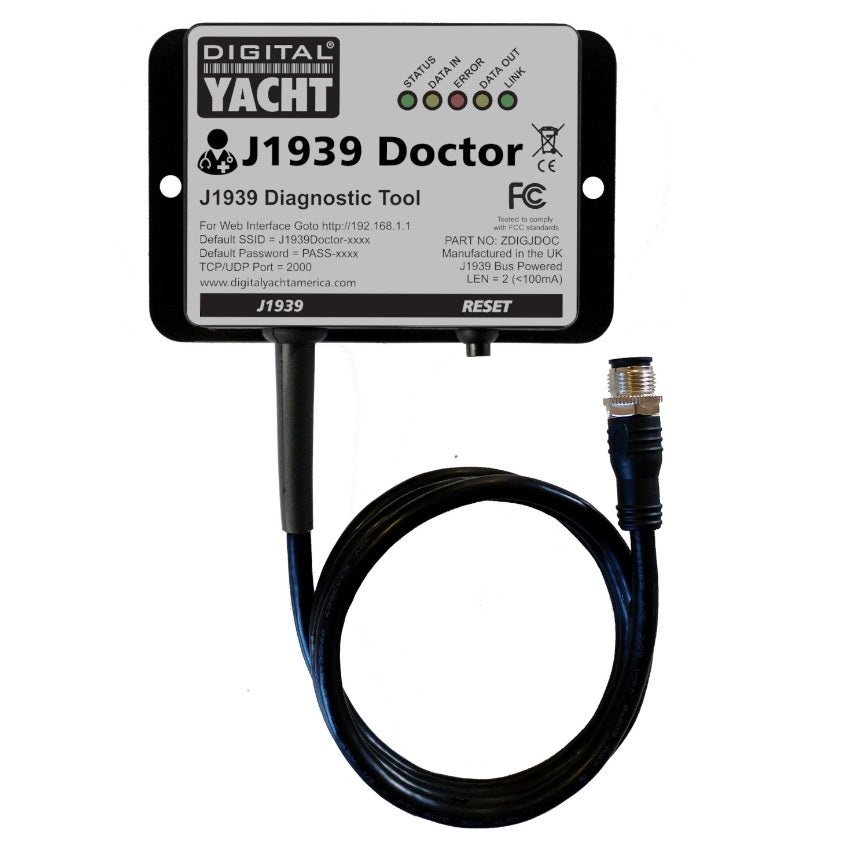

Digital Yacht J1939 Doctor Diagnostic Tool

J1939 is showing up on more and more boats. Engine data, propulsion, generators, electrical monitoring, it's the protocol a lot of modern diesel and power systems talk on. And when something on that network acts up, you need a way to see what's actually happening instead of guessing. That's exactly what the Digital Yacht J1939 Doctor is built for. It's a self-contained diagnostics tool that turns any phone, tablet, or laptop with a web browser into a full J1939 analyzer.

There's no app to install and no programming software to learn. You wire the Doctor into the network, connect to its built-in WiFi, open a browser, type in its IP address, and you're looking at the bus. That's the whole setup. And because the connection is wireless, you're not stuck in the engine room with a laptop balanced on a stringer. You can sit at the helm, or up on deck, and still watch the network in real time.

The web interface shows every device on the bus, lets you drill down into individual PGNs, and gives you a health overview at a glance, supply voltage, bus capacity, and the rest. If you've ever spent an afternoon chasing a phantom fault on an engine bus, you know how much time a clear picture saves.

Think about a repower or a new-build commissioning. You've got multiple control heads, sensors, and gauges all sharing one bus, and one bad terminator or a chafed wire can throw errors that look like an engine problem when they're really a network problem. The Doctor lets you separate the two in minutes. You see the raw health of the bus, then you watch the actual PGNs each device is putting out, and the fault picture gets clear fast.

What sets a real diagnostics tool apart from a simple gateway is that it checks the physical health of the network, not just the messages riding on it. The J1939 Doctor reads bus voltage, bus load, and frame errors. So when a connection is marginal or a device is flooding the bus, you can see it. You can view every device reporting on the network and open up the data each one is sending for a closer look.

Fault codes are handled cleanly. Click the fault icon and a pop-up shows active and historical codes. The DM1 table lists what's currently active, and the DM2 table keeps the historical record. Clear a fault that's still really there, and the Doctor catches it again on the next PGN transmission and puts it right back on screen, so you're never fooled into thinking a live problem went away. Need more detail on a specific PGN? Click the info icon at the end of its row and the full data opens in a window.

Power is flexible. The Doctor runs straight off the J1939 network at 12 or 24 volts, or you can feed it from a separate DC supply through the breakout. That separate-supply option matters when you want to look at the network with the engines off. Connection is through a standard M12 connector, and it ships with a 1 meter drop cable terminated in a male M12 DeviceNet plug. Because it's a standard M12, a wide range of patch cables and breakouts will connect to it, which helps on multi-engine boats where you may need an extra Y-cable or adapter to reach each bus.

When the job's done, print a full network report right from the browser, same as any other document. That makes handing a record to a customer or filing it for the next service call painless. This is a tool for installers, yard techs, and hands-on owners running diesel or power systems that use J1939. If your boat is purely NMEA 2000 with no J1939 engine bus, this isn't the one you want. But for diagnosing and documenting a J1939 network, it's about as direct as it gets.
