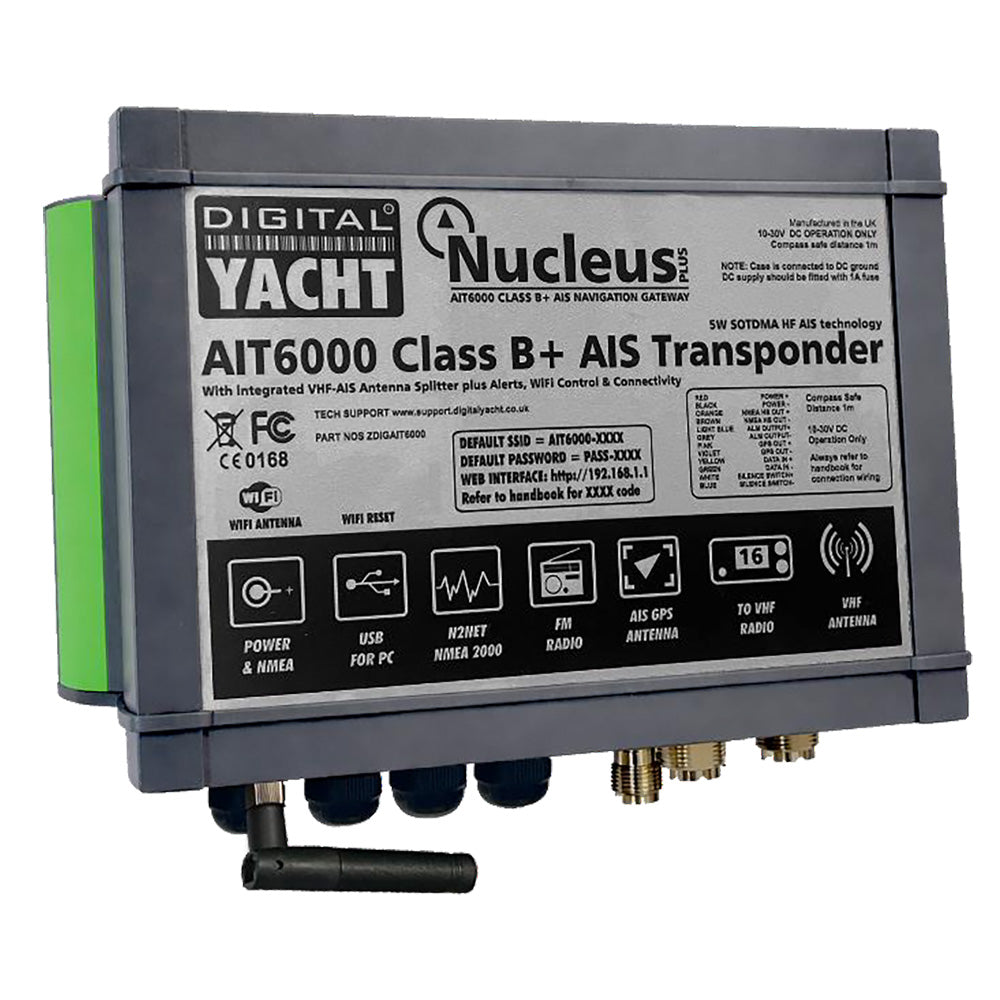

Digital Yacht AIT6000 Nucleus Class B+ AIS Transponder

The Digital Yacht AIT6000 Nucleus is a Class B+ AIS transponder built to sit at the center of your boat's electronics, not off in a corner doing one job. It transmits your position and picks up nearby traffic using SOTDMA technology with a full 5W of output, so you get the same slot priority as commercial Class A ships and stronger long-range tracking than a standard Class B unit. If you spend time in busy shipping lanes or run offshore, that extra reach matters.

What sets the AIT6000 apart is SPAIS, Digital Yacht's satellite AIS messaging. Flip it on from the setup menu and the transponder optimises its transmissions so AIS satellites can pick them up. That means land-based tracking services can still see you when you're more than 20 nautical miles from the coast, well beyond the reach of shore stations. For ocean sailors, and anyone whose family likes to watch the passage from home, it's real peace of mind.

Then there's the built-in zero-loss VHF antenna splitter. Most transponders make you add a second antenna or a separate splitter box. This one lets your VHF radio, the AIS, and even an FM/DAB radio all share a single masthead antenna with no drop in signal. You run the main antenna straight into the AIT6000, and it feeds your VHF radio through the supplied coax. One antenna, one clean install.

Connectivity is where the Nucleus name earns its keep. It talks NMEA 2000 for modern MFDs, has an NMEA 0183 input and two outputs for older legacy chartplotters, and adds USB for a PC or Mac. On top of that it creates its own secure, password-protected WiFi network. Up to 7 phones, tablets, or laptops can connect at once and see AIS targets, GPS position, and instrument data like depth, heading, speed, and wind pulled off the NMEA 2000 backbone. It works with the nav apps people actually use, Navionics, TZ iBoat, Savvy Navvy, AquaMap, OpenCPN, TimeZero, and plenty more across iOS, Android, PC, Mac, and Linux.

Safety features run deep. The AIT6000 has a CPA and TCPA anti-collision alarm that watches the closest point of approach and warns you before a situation develops, plus an anchor-drift alarm that calculates a sensible swing radius from depth and chain scope. Both can be monitored through the wireless interface with clean graphical displays, or pushed out as NMEA 2000 alerts to other devices. There's a switched output on the power cable too, so you can wire in a sounder and get an audible warning even when no chartplotter is powered up. All of it configures through a standard web browser, so there's no software to install and no internet connection required. If a warning gets your attention, you can silence it from a switch or through the web interface, and the alarms play nicely with NMEA 2000 alerts and the Digital Yacht NavAlarm if you want notifications pushed around the boat.

Who's it for? Sailors and power boaters who want more than a basic AIS box. The WiFi is bidirectional, so the AIT6000 can broadcast its own network and also join another WiFi network already on board, which keeps a busy helm tidy. Cruisers heading offshore get the SPAIS satellite reassurance. Coastal boaters get clean collision awareness and a single shared antenna. And because it feeds both NMEA 0183 and NMEA 2000, it drops into an older boat or a brand-new build without a pile of adapters.

Installation is straightforward, but a couple of things help. Give the supplied external GPS antenna a clear view of the sky and keep it away from large ferrous metal, since mounting it too close to a mast or heavy steel can throw off the reported position. On bigger boats, keep antenna coax runs sensible to avoid signal loss on long cable pulls. The enclosure is compact and rugged, and the kit ships with the external GPS antenna on a 10m cable plus a PL259-PL259 patch cable for the VHF radio, so you've got what you need to wire it in.
