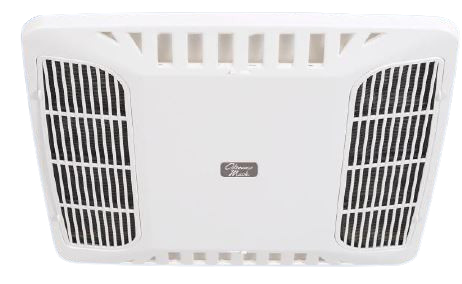

Coleman Mach 8630A6352 Heat Pump Ducted Ceiling Assembly

The Coleman Mach 8630A6352 is the ceiling assembly half of a ducted rooftop air conditioning system. It's the piece that lives inside your RV, mounts underneath the roof unit, and moves conditioned air out into your coach's ductwork. This particular assembly is the heat-ready lateral ducted build, so it's matched to the Coleman Mach 47000, 48000, and 49000 series heat pump rooftop units. If one of those is sitting on your roof and you need the interior half, this is the part.

Lateral ducted means the air runs out sideways into your ceiling ducts instead of dumping straight down through a single grille. If your rig already has ducting running down the roofline to registers in the bedroom, the bath, and the living area, this is the assembly you want. It ties the rooftop unit into that duct network and spreads the air down the length of the coach, so you don't end up with one cold spot up front and a warm back bedroom.

The heat-ready part is what sets this one apart. Paired with a Coleman Mach heat pump rooftop unit, the system handles cooling in the summer and heat-pump warmth in the shoulder seasons. A heat pump loses efficiency once it gets really cold, so on a frosty morning you'll still lean on your furnace. But for a chilly fall evening or a cool spring night, the heat pump side keeps the coach comfortable without burning through your propane.

It fits the standard 14 inch by 14 inch roof vent opening, the same cutout the vast majority of RV air conditioners use. The Chill Grille design keeps the interior profile clean and the return air moving quietly. Temperature runs off a wall-mounted thermostat, so you set the coach from a panel on the wall rather than reaching up to fiddle with the ceiling unit. It's the setup most owners already know.

On the electrical side, the assembly runs on 120 volt AC, the standard RV shore or generator supply, and the rooftop unit it pairs with is a 115 volt heat pump. Nothing exotic there. If your coach was already running a Coleman Mach on this circuit, your power is already sized for it.

Installing a ceiling assembly is within reach for a handy owner, but don't kid yourself, it's real work. You're dropping the old assembly, checking the roof gasket and your duct connections, and wiring the low-voltage control back to the wall thermostat. Take your time on that roof gasket. A bad seal is exactly where roof leaks start, and that's a headache you don't want later. If you're not comfortable working up top, any RV service center can swap it in an afternoon.

Before you order, confirm two things. First, that your rooftop unit really is a 47000, 48000, or 49000 series heat pump, because this assembly is matched to that family. Second, that your rig is genuinely ducted and not a non-ducted setup where the air comes straight out of a ceiling unit. Get both of those right and this is a straight replacement that puts your air handling back to how the factory built it.

One note on the lineup, since it trips people up. Coleman also builds a Deluxe version of this same assembly with a DirectFlow louver, which lets you aim and close individual outlets. This 8630A6352 is the standard Chill Grille build. Both tie into the same rooftop units. The standard grille just keeps things simpler and a little easier on the wallet if you don't need adjustable louvers.

It's a genuine Coleman-Mach part, so the fit and the airflow are exactly what the rooftop unit was engineered around. That's the difference between a clean swap you forget about and chasing airflow gremlins for a whole season. Order it, seal it up right, and get back to camping.
