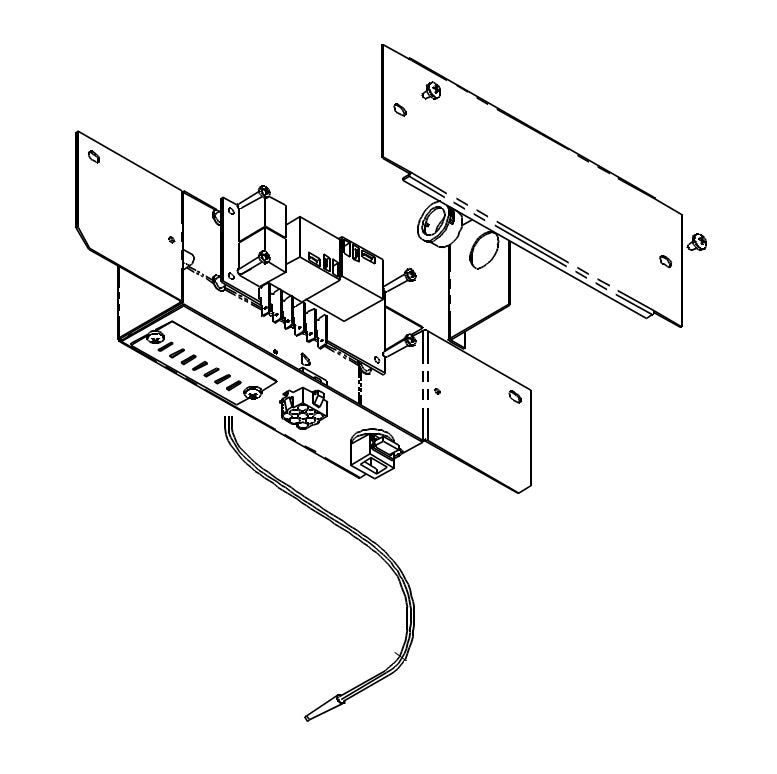

Coleman-Mach 8530-5091 A/C Ceiling Assembly Control Box

The Coleman 8530-5091 is the ceiling assembly control box that finishes off a non-ducted Coleman-Mach rooftop air conditioner from the inside. If you've ever looked up at the A/C in an RV and seen the trim panel with the fan speed knob and the thermostat, that's the ceiling assembly. This is the control box at the heart of it, and it's the genuine Coleman-Mach part, not a copy.

On a non-ducted setup there's no run of ductwork in the roof. The cold air comes straight down through the ceiling assembly and gets directed forward and aft into the coach. So this box does two jobs at once. It's the housing that ties the unit into your ceiling, and it carries the fan speed and thermostat controls you actually reach up and touch to run the air conditioner. When those controls quit, the housing cracks, or the plastic yellows and turns brittle after years in the sun, this is the part you replace.

The 8530-5091 is built for a specific group of Coleman-Mach units. It fits the 8530, 9530, 7530, 8630, 9330, and 6797 model series. Before you order, pull your A/C model number and check it against that list. Coleman-Mach uses a lot of similar looking control boxes across the lineup, and a different box, like the 8330-5571, covers other units. They aren't interchangeable. Your model number is usually printed on a label on the rooftop shroud or on the ceiling assembly itself, and there are short factory videos that walk you through finding it if you're not sure.

Why does the right control box matter this much? Because on a non-ducted system the ceiling assembly is the only interface you've got. There's no separate wall thermostat doing the thinking. Fan speed, temperature, the whole thing lives right here. Get the correct box and the swap is straightforward. Grab the wrong one and nothing lines up, the wiring plug won't match, and you're packing it back up for a return.

Day to day, this is the part you touch every time the coach heats up. Set the fan speed, dial in the temperature, and the non-ducted assembly pushes conditioned air forward and aft so the whole living space cools evenly instead of blasting one spot. A tired or damaged control box shows up as a fan that won't change speed, a thermostat that won't hold a setting, or a unit that short cycles.

Installation is a job most handy RV owners can knock out in an afternoon. You're working around 120-volt wiring, so kill the shore power and shut the generator down before you touch anything. From there it's basic hand tools to drop the old assembly, move the connections over, and seat the new control box. The assembly completes the interior finish under the unit, so once it's mounted the fan and thermostat are right where your hand expects them. If you're not comfortable around AC wiring, this is an easy one to hand off to an RV tech.

A couple of things this part is not. It isn't the rooftop air conditioner itself, so it won't help if the compressor or the sealed system is the real problem. It isn't a ducted-system component, since this style is made specifically for non-ducted Coleman-Mach units where the air feeds straight through the ceiling. And it isn't a multi-zone wall thermostat for a zoned coach. If your rig runs a separate wall control, that's a different part number.

What you're getting is the genuine Coleman-Mach replacement, a new OEM part carrying a 2-year limited manufacturer warranty. For a non-ducted 8530, 9530, 7530, 8630, 9330, or 6797 series unit, it's the correct control box to get your air conditioner cooling and controllable again.
