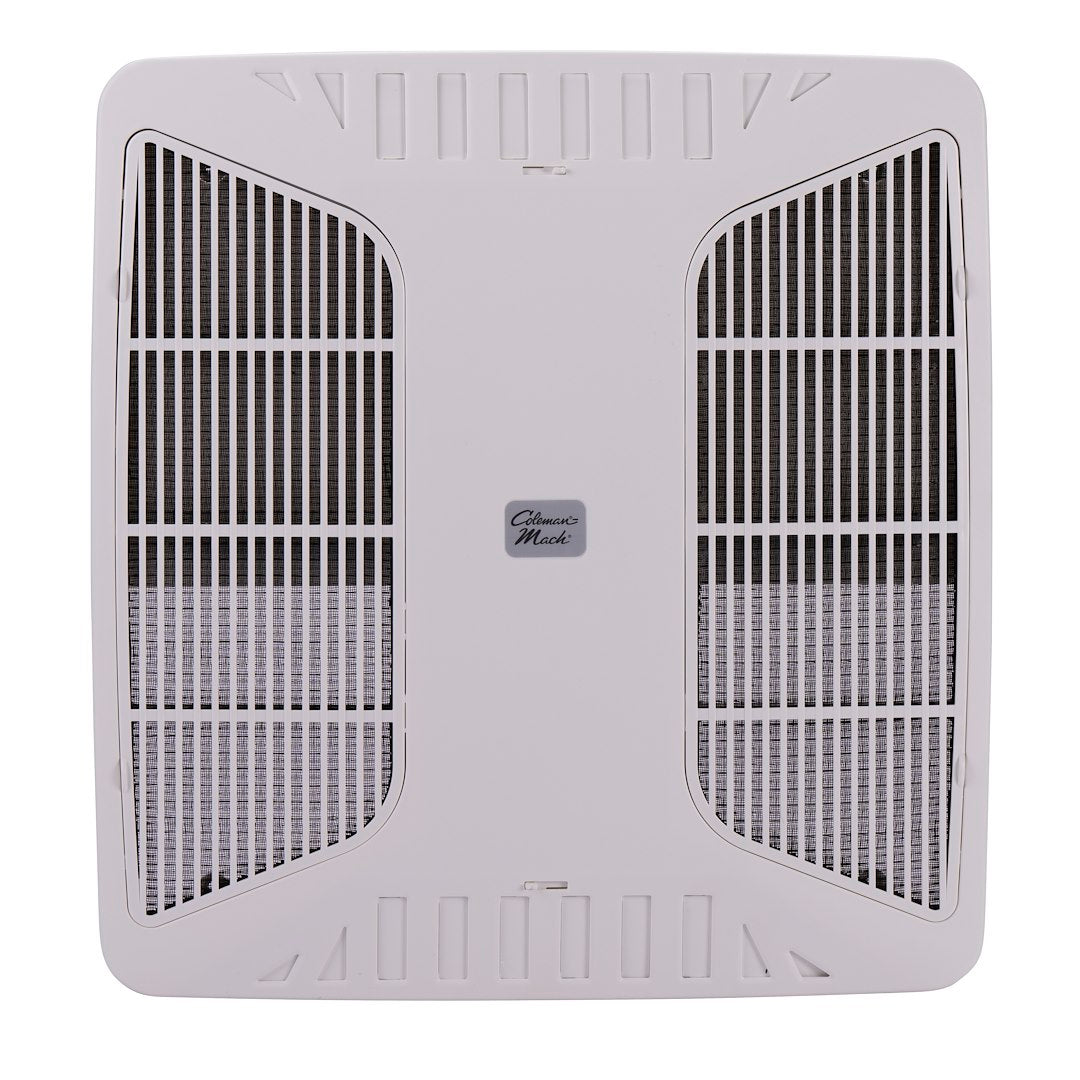

Coleman Mach 8430A635 Heat Ready Ducted Ceiling Assembly, White

The Coleman Mach 8430A635 is the interior half of a ducted RV air conditioning system. Your rooftop unit does the cooling up top. This ceiling assembly is what mounts underneath it, inside the coach, and it does the quiet, unglamorous work of moving that cold air where you actually want it. On a ducted setup, the conditioned air doesn't just dump straight down out of a ceiling grille. It gets routed into the ducting built into your RV's roof, then fed out through registers up and down the coach. That's the job this assembly handles.

It's a heat-ready, side-discharge design with lateral in-roof ducting. In plain terms, the assembly pushes conditioned air out to the sides into the ducts that run through your roof, so you get even airflow front to back instead of one cold spot right under the AC. The white finish keeps it low-key against a typical RV ceiling. And "heat ready" means the wiring provisions are already there if you want to add an electric heat strip later for those chilly mornings at the campground.

Here's the part a lot of folks miss when they order a ceiling assembly. This one is built to run off a wall thermostat, and it comes with the control box that makes that happen. Inside that box are relays with 12-volt DC coils. Your wall thermostat energizes those coils, and the relay contacts switch the 115-volt AC that actually powers the rooftop unit. So you get comfortable, low-voltage wall-thermostat control instead of reaching up to a ceiling-mounted dial. The thermostat itself isn't part of this assembly, so if you don't already have one wired in, plan to order it alongside.

Who needs this? Two kinds of people, usually. First, anyone replacing a cracked, yellowed, or rattling ceiling assembly on an existing ducted Coleman Mach system. These take abuse over the years. The plastic gets brittle, filters get chewed up, and airflow suffers. Dropping in a fresh 8430A635 restores the airflow and gives you clean thermostat control again. Second, folks completing a ducted AC install where the rooftop unit and the interior assembly ship separately. The rooftop unit alone won't distribute air through your ducts. You need this piece to close out the system.

A quick word on fitment, because ducted and non-ducted assemblies are not interchangeable. This is the ducted version, meant for coaches that have in-roof ductwork and registers. If your RV blows air straight down out of the unit through an adjustable grille, that's a non-ducted ceiling-mount setup, and this isn't the right part. Match the assembly to how your coach is built. When in doubt, look up at your existing setup. Ducted systems feed multiple registers around the ceiling. Non-ducted systems have one big louvered grille right at the AC.

Installation is well within reach for a handy owner, but respect the 115-volt side. Kill the power at the pedestal and the breaker before you touch the control box wiring. The mechanical part, dropping the assembly up against the roof gasket and snugging it to the rooftop unit, is straightforward with a helper to hold the weight while you set the fasteners. The wiring is where you slow down. Match the thermostat leads to the control box, confirm the relay connections, and don't energize anything until it's all landed and the return-air filter is seated. If you're not comfortable around AC line voltage, this is a good one to hand to an RV tech.

Bottom line, the 8430A635 is a straightforward, honest replacement or completion piece for a ducted Coleman Mach system. It's white, it's heat ready, it runs off a wall thermostat, and it ships with the control box you need to tie it all together. Order it, match it to your ducted coach, and get your cold air moving the way it should.
