Coleman Mach 8430-3861 Cool-Only Air Conditioner Control Box

If you've ever climbed onto the roof of a rig on a hot afternoon because the air conditioner quit blowing cold, you already know how much rides on one small part. The Coleman Mach 8430-3861 is that part. It's the cool-only control box assembly for the 8330, 8430, and 7330 series ceiling units, and it's the piece that ties your thermostat, your compressor, and your fan together into one working system. When it fails, everything downstream stops. When it's healthy, you don't think about it at all.

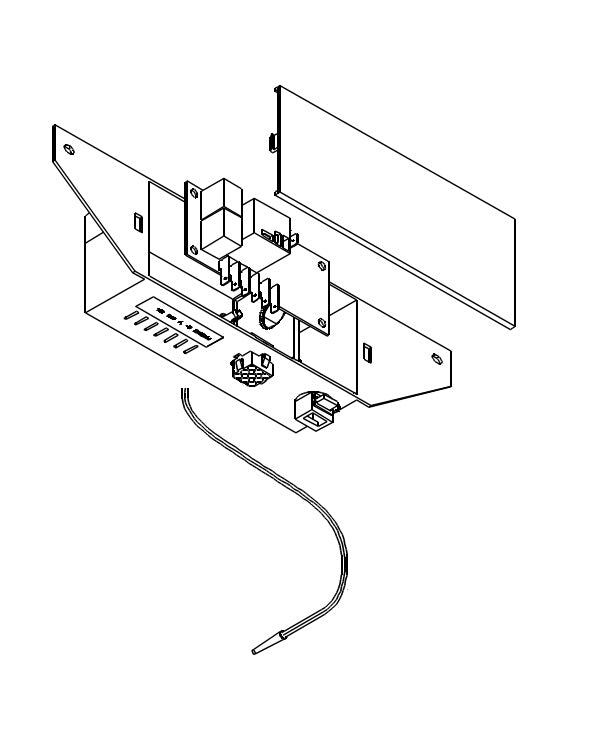

Here's what you're actually getting. The 8430-3861 arrives as a complete assembly with the terminal board and circuit board already in place. That matters, because the terminal board is where your incoming power and your thermostat wiring land, and the circuit board is the brain that reads the thermostat and decides when to run the compressor and fan. You're not buying a bare board and hunting for the right housing. You're buying the whole box, ready to wire in.

This is a cool-only control. That's an important distinction to get right before you order. Cool-only means it manages the compressor and the fan for air conditioning, and nothing else. If your ceiling assembly has a heat strip or you're running a heat pump setup, this isn't the board for that job, and you'll want the matching heat-ready control instead. For the thousands of Mach units out there set up purely for cooling, though, the 8430-3861 is exactly right.

Fitment is the next thing to nail down. This box is built for the Coleman Mach 8330, 8430, and 7330 model ceiling assemblies. Those are the ducted and non-ducted ceiling units that sit below the rooftop A/C and distribute the cold air into the coach. If your ceiling assembly carries one of those model numbers, this control box drops in. Double-check the number stamped on your existing unit before you order. It's a two-minute look that saves you a return.

The 8430-3861 also replaces the older 8430-3851. Coleman updated the part number over the years, and if your paperwork or your old box shows the 3851, the 3861 is the current supersession. Same job, same fit. So if you searched by the old number and landed here, you're in the right place.

Install is a job most hands-on RVers can handle in an afternoon. Kill the power first, both shore power and the breaker for the A/C. Drop the ceiling assembly's cover, note where every wire lands on the old terminal board, and transfer them one at a time to the new box. A photo on your phone is your best friend here. Because the assembly is pre-built, there's no board-swapping or standoff fiddling. You're matching wires, seating the box, and buttoning it back up. Take your time on the terminal connections and make sure each one is tight. Loose connections are what cook these boards in the first place.

A word on care, since these boxes live a hard life. They ride through vibration on every mile of road, they cycle through heat all summer, and they sit under a roof that sees weather. Clean, tight connections go a long way. If you're pulling the old box because it failed, it's worth checking why. A chafed wire, a loose lug, or corrosion at the terminal will take out a new board just as fast as it took the old one. Fix the cause, not just the symptom.

Who's this for? Anybody running a Coleman Mach 8330, 8430, or 7330 cooling unit who wants their air back without swapping the whole rooftop assembly. It's the right call for a weekend fix before a trip, for a shop keeping a common part on the shelf, and for anyone who'd rather do it once with the correct factory part than gamble on a patch. It's a Coleman part for Coleman units, so the fit and the function are what the unit was engineered around.

One box, one job, done right. Order the 8430-3861, match your wires, and get back to the good part of the trip.
