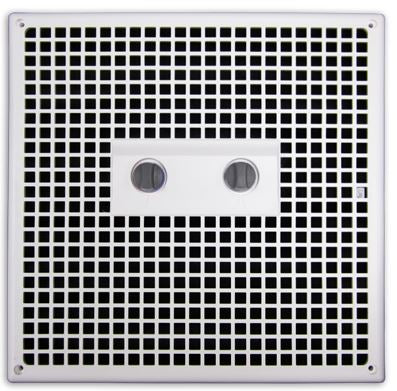

Coleman-Mach 8330A763 Manual Ducted Ceiling Assembly, White

The Coleman-Mach 8330A763 is the interior half of a ducted rooftop air conditioner. When people talk about an RV air conditioner they usually picture the shroud up on the roof, but that rooftop unit needs a ceiling assembly on the inside to actually move the cold air where you want it. This is that piece. It's the manual-control, ducted version, and it drops into a standard 14 by 14 inch vent opening in your rig's ceiling.

The word that matters most here is manual. This assembly has the controls built right into it, so you don't need a separate wall thermostat or the extra wiring that goes with one. You reach up, turn the knob, pick your fan speed and cooling, and you're done. For a lot of owners that's exactly what they want. Fewer parts to fail, nothing to run across the coach, and no thermostat to replace down the road. If you're rebuilding an older ducted system or you just prefer simple, this is the straightforward way to go.

Because it's a ducted assembly, the cold air doesn't just dump straight down into one spot. It feeds laterally into your rig's duct runs and spreads conditioned air through the ceiling to multiple registers. That's what keeps a longer trailer or motorhome comfortable end to end instead of freezing you out under the unit and leaving the bedroom warm. If your coach already has ducting in the roof, this is the assembly that ties into it.

It's cool-only as it ships, but it's heat strip ready. That means you can add an optional Coleman-Mach heat strip kit later for a bit of electric heat on cool mornings. The heat strip is sold separately, and it installs into the assembly you already have. So you're not locked in. Start with cooling, add heat when you decide you want it.

One thing worth being clear on. Ducted and non-ducted assemblies aren't interchangeable. A non-ducted assembly has its own grille and dumps air straight down into the room from a single spot. A ducted assembly like this one has no room grille of its own. Instead it pushes air into the duct system built into your roof. If your RV has ceiling registers in more than one spot, you've got a ducted system, and this is the assembly you want. If there's a single big grille right under the AC, that's a non-ducted setup and this won't be the right part.

Matching matters on the rooftop side too. This is the interior ceiling assembly only. It works with a compatible Coleman-Mach ducted rooftop unit sitting up top. If you're doing a full replacement, make sure the rooftop unit and the ceiling assembly are both set up for ducted operation. And if you're only swapping the interior piece because the old one cracked or the controls quit, this manual-control assembly is a clean replacement as long as your existing setup is ducted and manual.

A few practical notes from installs. The 14 by 14 inch opening is the RV industry standard size, so this fits the most common ceiling cutout without cutting new holes. It runs on 12-volt DC for the controls, the same house power your RV already supplies. And the white finish is the neutral color that blends into almost any RV ceiling, so it doesn't stand out once it's up.

Who's this for? Mostly folks replacing a cracked or dead ceiling assembly, or anyone rebuilding a ducted Coleman-Mach system who wants the manual-control route instead of a wall thermostat. It's the ducted, cool-only, manual configuration, part number 8330A763, and it carries a 2-year limited warranty. If you're not sure whether your rooftop unit is ducted or non-ducted, or whether your opening is really 14 by 14, give us a shout before you order. We'd rather get you the right assembly the first time.
