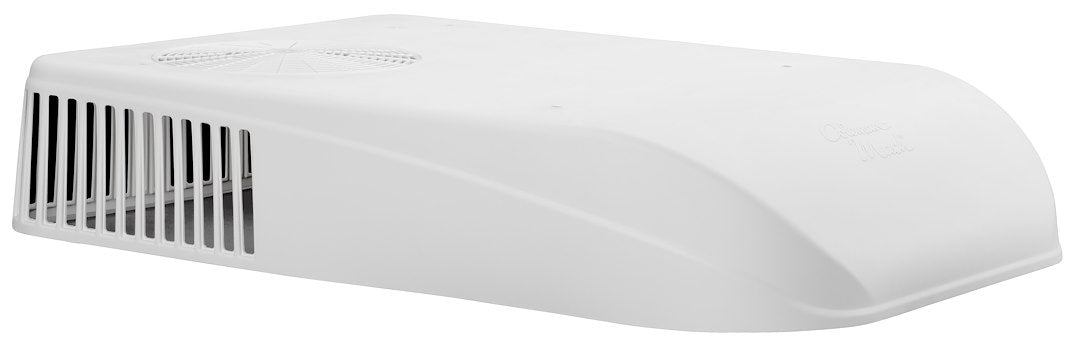

Coleman-Mach 8 Plus Cub 9200 BTU RV Air Conditioner
Coleman-Mach 8 Plus Cub 9200 BTU RV Air Conditioner — Product description
If you've got a smaller trailer or camper running a standard 14 by 14 roof vent, the Coleman-Mach 8 Plus Cub is a clean way to add cooling without a big full-size unit up top. You get 9200 BTU on standard 120-volt power, and it runs ducted or non-ducted depending on how your ceiling is set up.
The Coleman-Mach 8 Plus Cub is the rooftop air conditioner you reach for when the rig is on the smaller side and you don't need a big 13,500 BTU unit hanging off the roof. It puts out 9200 BTU, which is plenty for a compact travel trailer, a teardrop, or a small camper where a full-size unit would be overkill.
It drops into a standard 14 inch by 14 inch roof vent opening, so on most trailers you're working with a hole that's already there. Power is regular 120 volt shore or generator power, and the compressor pulls about 8.9 amps once it's running. You can set it up ducted or non-ducted, whichever way your ceiling is built.
A couple of honest notes. This is a cooling-only unit, so there's no heat pump and no condensate pump built in. And the ceiling assembly, the part that finishes the install on the inside, ships separately. Order that alongside the unit so you're not waiting on a second box.
Key Features
- 9200 BTU cooling, sized right for compact trailers and small campers
- Fits standard 14 inch by 14 inch roof vent openings, so most rigs need no new hole cut
- Runs on 120 volt power with an 8.9 amp compressor draw, easy on shore power or a generator
- Ducted or non-ducted install to match your ceiling layout
- Textured white cabinet that blends into the roofline
Why Buy from NVN Marine
- Authorized COLEMAN RVP reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Coleman-Mach 8 Plus Cub 9200 BTU RV Air Conditioner |
|---|---|
| Brand | COLEMAN RVP |
| Manufacturer Part Number | 37201-076 |
| UPC | 755790009077 |
| Weight | 87 pounds |
| Cooling Capacity | 9200 BTU |
| Voltage | 120 Volt |
| Compressor Draw | 8.9 Amp |
| Fits Vent Opening | 14 Inch x 14 Inch |
| Ducting | Ducted or Non-Ducted |
| Color | Textured White |
| Heat Pump | No |
| Condensate Pump | No |
| Ceiling Assembly | Sold separately |
Frequently asked questions
How big of an RV will this cool?
At 9200 BTU it's meant for smaller setups, think compact travel trailers, teardrops, and small campers. For a big fifth wheel you'd want more cooling capacity.
Will it fit my existing roof vent?
If you've got a standard 14 inch by 14 inch opening, yes. That's the most common vent size on RVs, so most rigs won't need any new cutting.
Does it heat too?
No. This is a cooling-only model, so there's no heat pump built in. You'd handle heat with a separate furnace or space heater.
Do I need anything else to install it?
Yes, the ceiling assembly ships separately and finishes the install on the inside. Order it at the same time so you're not held up waiting on the second piece.
What power does it need?
Standard 120 volt AC power, the same shore or generator power your RV already runs. The compressor draws about 8.9 amps once it's going.
