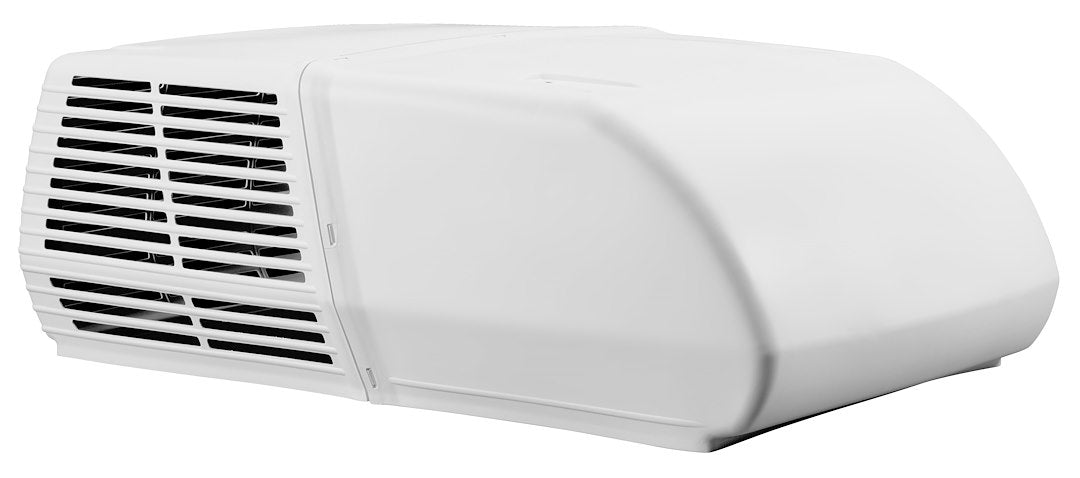

Coleman-Mach 3 Plus 13,500 BTU RV Rooftop Air Conditioner
Coleman-Mach 3 Plus 13,500 BTU RV Rooftop Air Conditioner — Product description
The Coleman-Mach 3 Plus is a 13,500 BTU rooftop air conditioner built for RVs that need real cooling on hot days. It runs on 120-volt shore power, fits a standard 14-inch by 14-inch vent opening, and works ducted or non-ducted. Textured white finish, cooling only, no heat pump.
The Coleman-Mach 3 Plus is the rooftop air conditioner a lot of RVers reach for when they want serious cooling without a lot of fuss. It puts out 13,500 BTU, enough to pull a mid-size travel trailer or fifth wheel down to comfortable on a hot afternoon. It runs on standard 120-volt shore power and draws about 13.1 amps at the compressor, so it plays nice with a 30-amp coach.
It drops into a standard 14-inch by 14-inch vent opening, and you can run it ducted or non-ducted depending on how your roof is set up. The finish is textured white, so it blends into the roofline up top. One thing to know before you buy: this is the upper unit only. The ceiling assembly gets ordered separately, and there's no heat pump or condensate pump built in. This is a cooling unit, plain and simple.
It weighs 79.5 pounds and ships on a wood skid. If you're replacing an older Coleman rooftop unit, it's a straightforward swap for anyone comfortable working up on the roof.
Key Features
- 13,500 BTU cooling capacity keeps mid-size trailers and fifth wheels comfortable on hot days
- 120-volt operation with a 13.1-amp compressor draw fits a standard 30-amp RV hookup
- Sized for a standard 14-inch by 14-inch roof vent opening for a direct-swap install
- Runs ducted or non-ducted to match your coach's roof setup
- Textured white finish blends into the roofline
Why Buy from NVN Marine
- Authorized COLEMAN RVP reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Coleman-Mach 3 Plus 13,500 BTU RV Rooftop Air Conditioner |
|---|---|
| Brand | Coleman RVP |
| Manufacturer Part Number | 38203-066 |
| UPC | 755790005628 |
| Cooling Capacity | 13,500 BTU |
| Voltage | 120 Volt |
| Compressor Draw | 13.1 Amp |
| Fits Vent Opening | 14 in x 14 in |
| Ducting | Ducted or Non-Ducted |
| Color | Textured White |
| Heat Pump | Without Heat Pump |
| Condensate Pump | Without Condensate Pump |
| Weight | 79.5 lbs |
| Package Dimensions (L x W x H) | 38 in x 26.1 in x 13.8 in |
Frequently asked questions
Does this unit include the ceiling assembly?
No. The Coleman-Mach 3 Plus ships as the rooftop unit only. You'll need to order the matching ceiling assembly separately to complete the install.
Can I run it ducted or non-ducted?
Yes. It's built to work either way. Ducted routes cool air through your RV's overhead ducting, while non-ducted blows straight down through the ceiling assembly.
Will it fit my existing roof opening?
It's sized for a standard 14-inch by 14-inch vent opening, which is the common cutout on most RVs. If you're replacing an older rooftop unit, it typically drops right in.
Does it heat?
No. This model has no heat pump, so it's cooling only. It also doesn't include a condensate pump.
What power does it need?
It runs on 120 volts and draws about 13.1 amps at the compressor, so it's a fit for a standard 30-amp RV electrical system.
