Coleman RVP Mach 3 13,500 BTU RV Rooftop Air Conditioner
Coleman RVP Mach 3 13,500 BTU RV Rooftop Air Conditioner — Product description

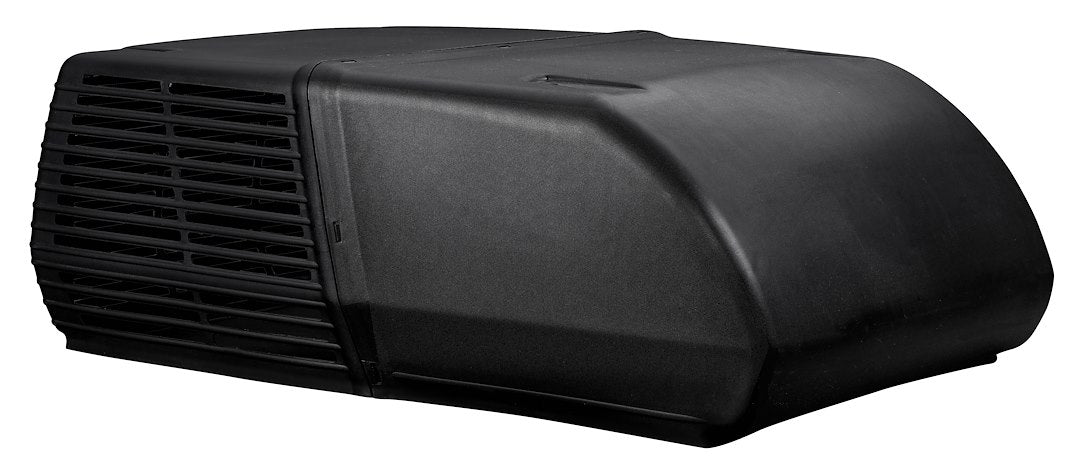

The Coleman Mach 3 is a 13,500 BTU rooftop air conditioner built for standard 14 inch by 14 inch RV vent openings. It runs ducted or non-ducted on a 120 volt hookup with a 10 amp compressor draw, and the textured black shroud holds up to sun and road grime. Cooling only, ceiling assembly sold separately.
The Coleman Mach 3 is the workhorse rooftop air conditioner you'll find on a huge number of RVs, campers, and trailers. This is the 13,500 BTU Power Saver model, and it drops into a standard 14 inch by 14 inch roof vent opening, so it's a straight swap for most rigs that already have a factory AC cutout.
You get 13,500 BTU of cooling on a 120 volt hookup, with a 10 amp compressor draw that plays nicely with a 30 amp shore connection. Run it ducted through your ceiling ductwork or non-ducted with a ceiling assembly, whichever your coach is set up for. The textured black shroud hides road grime better than white and shrugs off UV.
A couple of things to know before you order. The ceiling assembly isn't included, so you'll need to order that separately to match your ducted or non-ducted setup. This unit ships without a heat pump and without a condensate pump, so it's cooling only. At 83.5 pounds it's a two-person lift onto the roof, so grab a hand.
Key Features
- 13,500 BTU cooling, enough to keep most single-zone RVs and travel trailers comfortable in summer heat
- Fits standard 14 in x 14 in roof vent openings for a direct factory-cutout swap
- Runs ducted or non-ducted so it matches either coach ceiling layout
- 120 volt with a 10 amp compressor draw, works on a standard 30 amp RV shore hookup
- Textured black shroud resists UV and hides road grime
Why Buy from NVN Marine
- Authorized COLEMAN RVP reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Coleman RVP Mach 3 13,500 BTU RV Rooftop Air Conditioner |
|---|---|
| Brand | Coleman RVP |
| Manufacturer Part Number | 38208-0690 |
| UPC | 755790008988 |
| Cooling Capacity | 13,500 BTU |
| Fits Vent Opening | 14 in x 14 in |
| Ducting | Ducted or Non-Ducted |
| Color | Textured Black |
| Voltage | 120 Volt |
| Compressor Draw | 10 Amp |
| Heat Pump | Not included |
| Condensate Pump | Not included |
| Weight | 83.5 lbs |
| Package Dimensions (L x W x H) | 38 in x 26.1 in x 13.8 in |
Frequently asked questions
Does this fit a standard RV roof vent?
Yes. It's built for 14 inch by 14 inch vent openings, the standard factory cutout on most RVs and trailers, so it drops straight in on most rigs.
Is the ceiling assembly included?
No. The ceiling assembly is ordered separately so you can match your ducted or non-ducted setup. You'll need one to complete the install.
Can I run this ducted or non-ducted?
Either way. The Mach 3 works ducted through your coach's ceiling ductwork or non-ducted with a ceiling assembly, depending on how your RV is set up.
Does it have a heat pump?
No. This model ships without a heat pump and without a condensate pump. It's cooling only.
How much power does it draw?
It runs on 120 volt with a 10 amp compressor draw, so it works on a standard 30 amp RV shore connection.
