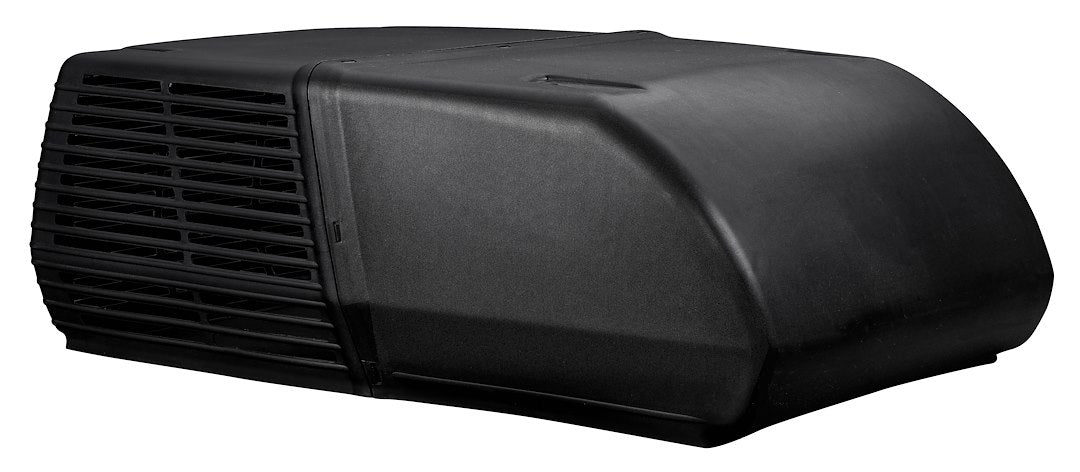

Coleman-Mach 15 Plus 15,000 BTU RV Rooftop Air Conditioner, Black
Coleman-Mach 15 Plus 15,000 BTU RV Rooftop Air Conditioner, Black — Product description
The Coleman-Mach 15 Plus is the highest-output unit in the Coleman-Mach rooftop line, putting out 15,000 BTU to cool a big RV fast. It drops into a standard 14 inch by 14 inch vent, runs ducted or non-ducted, and wears a textured black shroud that blends into a dark roof.
The Coleman-Mach 15 Plus is the big-BTU rooftop unit you reach for when you need to cool a large RV in a hurry. It puts out 15,000 BTU, the most cooling in the Coleman-Mach lineup, so it can hold temperature in a big fifth wheel or toy hauler even when the afternoon sun is beating down on the roof. The textured black finish blends in nicely on a dark coach.
It drops into a standard 14 inch by 14 inch vent opening and runs on 120 volt shore or generator power, pulling 13.1 amps at the compressor. You can set it up ducted or non-ducted, so it works whether your coach has a full ceiling duct system or a single central return. This is the cooling-only version, so there's no heat pump and no condensate pump built in.
One thing to know before you order. The ceiling assembly ships separately, and you'll need it to finish the install. Pick the ducted or non-ducted ceiling kit that matches your setup. The unit weighs 79.5 pounds, so plan on a helper and a solid ladder when it's time to get it on the roof.
Key Features
- 15,000 BTU cooling output, the highest in the Coleman-Mach line, sized for large RVs, fifth wheels, and toy haulers
- 120 volt operation with a 13.1 amp compressor draw, runs on shore power or a generator
- Ducted or non-ducted setup, so it matches the way your coach moves air
- Fits a standard 14 inch by 14 inch roof vent opening for a straight swap on most coaches
- Textured black shroud that blends into a dark roofline
Why Buy from NVN Marine
- Authorized COLEMAN RVP reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Coleman-Mach 15 Plus 15,000 BTU RV Rooftop Air Conditioner, Black |
|---|---|
| Brand | COLEMAN RVP |
| Manufacturer Part Number | 38204-069 |
| UPC | 755790005765 |
| Cooling Capacity | 15,000 BTU |
| Voltage | 120 Volt |
| Compressor Draw | 13.1 Amp |
| Vent Opening | 14 Inch x 14 Inch |
| Ducting | Ducted or Non-Ducted |
| Color | Textured Black |
| Heat Pump | Not included |
| Condensate Pump | Not included |
| Weight | 79.5 Pounds |
| Package Dimensions (L x W x H) | 38 in x 26.1 in x 13.8 in |
| Ceiling Assembly | Ordered Separately |
Frequently asked questions
Does this air conditioner include the ceiling assembly?
No. The ceiling assembly ships separately, and you'll need it to complete the install. Choose the ducted or non-ducted ceiling kit that matches your RV.
What size opening does it need?
It fits a standard 14 inch by 14 inch roof vent opening, so on most coaches it's a direct replacement for an existing rooftop unit.
Does it have a heat pump?
No. This is the cooling-only Mach 15 Plus. It comes without a heat pump and without a condensate pump.
Can I run it ducted?
Yes. It's built for either a ducted or non-ducted install. Just match the ceiling assembly you order to your coach's setup.
What power does it draw?
It runs on 120 volt AC and pulls 13.1 amps at the compressor. Make sure your shore power or generator can handle the startup load before you run it.
