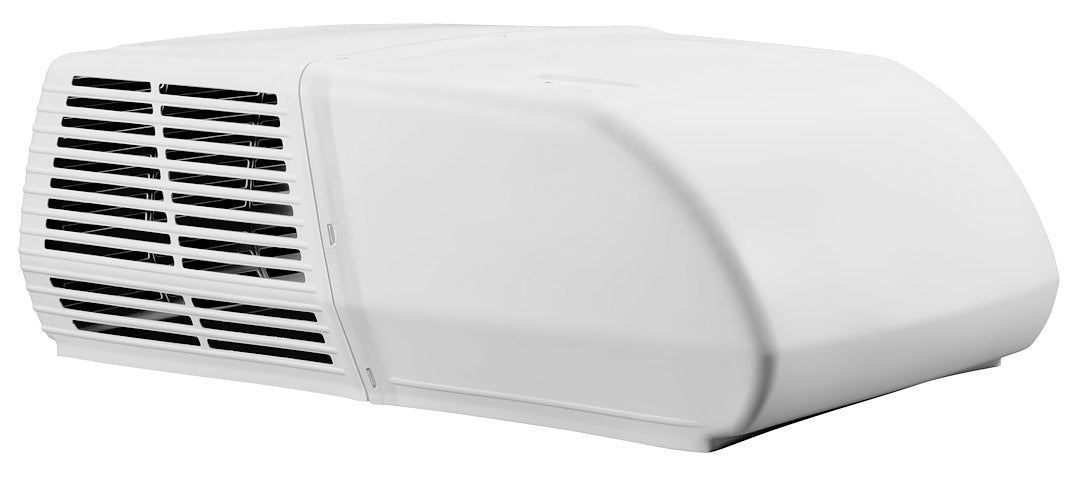

Coleman Mach 15 Plus 15,000 BTU RV Rooftop Air Conditioner
Coleman Mach 15 Plus 15,000 BTU RV Rooftop Air Conditioner — Product description
The Coleman Mach 15 Plus is a high-output rooftop air conditioner that pushes 15,000 BTU of cooling for RVs. It runs on 120-volt shore power, fits the standard 14 inch by 14 inch vent opening, and works ducted or non-ducted.
The Coleman Mach 15 Plus is the high-output rooftop air conditioner you put on a rig that has to stay cool in real summer heat. It pushes 15,000 BTU, about as much cooling as you'll get from a single low-profile rooftop unit, and it runs on standard 120-volt shore power with an 8.9-amp compressor draw. The shroud is textured white, so it blends in on just about any coach or trailer roof.
It fits the standard 14 inch by 14 inch vent opening, so if you're replacing a tired old unit you probably won't be cutting any new holes. You can run it ducted or non-ducted, which makes it a solid fit for everything from a compact travel trailer to a big fifth wheel. This one ships without a heat pump and without a condensate pump, so it's straight cooling.
One thing to know before you order: the ceiling assembly is a separate part. The rooftop unit doesn't include it, so plan on adding the matching ceiling kit for your ducted or non-ducted setup.
Key Features
- 15,000 BTU cooling output, enough to keep a large travel trailer or fifth wheel comfortable in peak summer heat
- Runs on 120-volt AC power with an 8.9-amp compressor draw for standard shore-power hookups
- Fits the standard 14 inch by 14 inch roof vent opening, so most swaps drop in without cutting new holes
- Ducted or non-ducted operation to match your rig's air distribution setup
- Textured white shroud with a 13.8 inch profile that blends into most RV roofs
Why Buy from NVN Marine
- Authorized Coleman RVP reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Coleman Mach 15 Plus 15,000 BTU RV Rooftop Air Conditioner |
|---|---|
| Brand | Coleman RVP |
| Manufacturer Part Number | 38209-0660 |
| UPC | 755790005864 |
| Model | Mach 15 Plus |
| Cooling Capacity | 15,000 BTU |
| Voltage | 120 Volt |
| Compressor Draw | 8.9 Amp |
| Air Distribution | Ducted or Non-Ducted |
| Fits Vent Opening | 14 Inch x 14 Inch |
| Color | Textured White |
| Heat Pump | Not included |
| Condensate Pump | Not included |
| Dimensions (H x W x L) | 13.8 Inch x 26.1 Inch x 38 Inch |
| Weight | 83.5 Pounds |
Frequently asked questions
Does the Mach 15 Plus include the ceiling assembly?
No. The ceiling assembly is a separate part and has to be ordered on its own. The rooftop unit covers the outside components, and you add the matching ceiling kit for either a ducted or non-ducted install.
Will it fit my existing roof opening?
It's built for the standard 14 inch by 14 inch vent opening used on most RVs. If your current unit sits in that size cutout, this one drops right in.
Can I run it without ducts?
Yes. The Mach 15 Plus works ducted or non-ducted, so it fits both central-air rigs and single-zone setups depending on the ceiling assembly you pair with it.
Does it have a heat pump?
No. This model ships without a heat pump and without a condensate pump, so it's cooling only.
What size rig does 15,000 BTU cover?
15,000 BTU is the high-output end for a single rooftop unit, so it handles larger travel trailers and fifth wheels. In very large coaches you'd typically run more than one unit.
