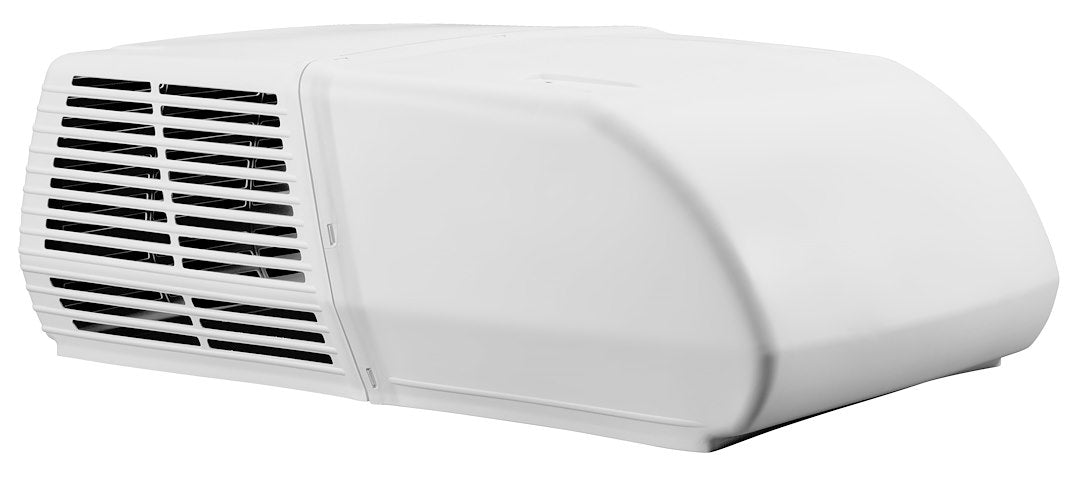

Coleman Mach 15 Plus 15,000 BTU RV Rooftop Air Conditioner
Coleman Mach 15 Plus 15,000 BTU RV Rooftop Air Conditioner — Product description
The Coleman Mach 15 Plus is a 15,000 BTU rooftop air conditioner that drops into a standard 14 by 14 inch RV vent opening. Run it ducted or non-ducted, wire it to 120 volt shore power, and keep your rig cool through the hottest afternoons. Cooling-only, textured white, built for the road.
The Coleman Mach 15 Plus puts 15,000 BTU of cooling on your RV roof, and it's built to move a lot of air on a hot afternoon at the campsite. It drops right into a standard 14 inch by 14 inch vent opening, so if you're replacing a tired old unit, the hole's already cut for you.
You can run it ducted or non-ducted, which makes it a solid fit for everything from a small travel trailer to a big fifth wheel. It runs on 120 volt shore power and pulls 13.1 amps on the compressor, so it plays nice with a 30 amp pedestal when you're not stacking too much else on the line. The textured white shroud hides road dust and holds up to the sun.
Couple of things to know before you buy. This is the cooling-only version, so there's no heat pump and no built-in condensate pump. And the ceiling assembly ships separately, so order one if you don't already have it mounted in the rig.
Key Features
- 15,000 BTU cooling capacity, enough to keep a large travel trailer or fifth wheel comfortable in summer heat
- Fits standard 14 in x 14 in roof vent openings for a straight swap on most RVs
- Runs ducted or non-ducted, so it adapts to your rig's existing air distribution
- 120 volt, 13.1 amp compressor draw works on a standard 30 amp RV shore connection
- Textured white shroud resists UV and hides road dust
Why Buy from NVN Marine
- Authorized COLEMAN RVP reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Coleman Mach 15 Plus 15,000 BTU RV Rooftop Air Conditioner |
|---|---|
| Brand | Coleman RVP |
| Manufacturer Part Number | 38204-0660 |
| UPC | 755790005789 |
| Cooling Capacity | 15,000 BTU |
| Fits Vent Opening | 14 in x 14 in |
| Ducted or Non-Ducted | Ducted or Non-Ducted |
| Color | Textured White |
| Voltage | 120 Volt |
| Compressor Draw | 13.1 Amp |
| Heat Pump | Without Heat Pump |
| Condensate Pump | Without Condensate Pump |
| Weight | 79.5 Pounds |
| Package Dimensions (L x W x H) | 38 in x 26.1 in x 13.8 in |
| Alternate Part Number | 38204-0640 |
Frequently asked questions
Will this fit my existing roof opening?
It's designed for the standard 14 inch by 14 inch vent opening found on most RVs, so it drops into the same cutout when you're replacing an older unit.
Can I run it ducted?
Yes. The Mach 15 Plus works both ducted and non-ducted, so you can tie it into your rig's existing ceiling ducts or blow directly through the unit.
Does it include a heat pump?
No. This is the cooling-only version, without a heat pump and without a built-in condensate pump.
Do I need anything else to install it?
The ceiling assembly is sold separately, so you'll need one if it's not already mounted in your RV. The rooftop unit itself weighs about 79.5 pounds.
What power does it need?
It runs on 120 volt AC power and draws 13.1 amps at the compressor, which is fine on a standard 30 amp shore connection.
