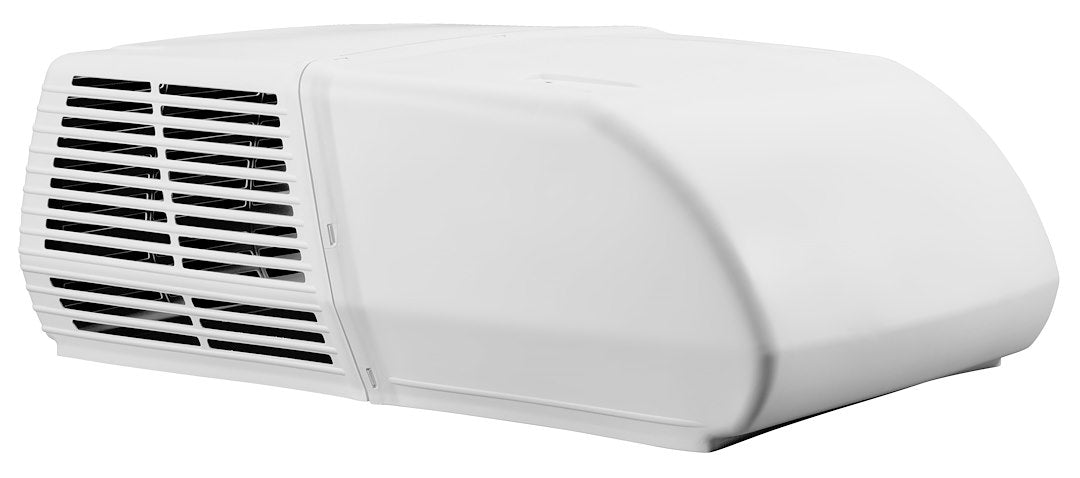

Coleman-Mach 15 Plus 15,000 BTU RV Rooftop Air Conditioner
Coleman-Mach 15 Plus 15,000 BTU RV Rooftop Air Conditioner — Product description
The Coleman-Mach 15 Plus is a 15,000 BTU rooftop air conditioner built for RVs, motorhomes, and travel trailers that need serious cooling. It drops into a standard 14 by 14 inch vent opening and runs ducted or non-ducted. Textured white finish, 120 volt power, and no heat pump to complicate the install.
The Coleman-Mach 15 Plus is the unit you reach for when your RV needs to stay cool through a real summer. It puts out 15,000 BTU, which is a lot of cooling for a rooftop box, and it's built to handle hot afternoons parked in full sun. This is the textured white model, part number 38204-066.
It fits a standard 14 by 14 inch roof vent opening, so on most rigs it drops right into the hole your old unit came out of. It works ducted through the coach's existing ductwork or non-ducted, depending on how your RV is set up. It's a 120 volt unit and the compressor draws 13.1 amps, so size your shore power and generator load around that. No heat pump and no condensate pump on this one, it's straight cooling.
One thing to know before you order: the ceiling assembly ships separately. The AC unit itself comes on a wood skid. And if you see part number 38204-064 out there, that's the same unit under a newer number.
Key Features
- 15,000 BTU cooling output, enough to keep a large RV comfortable in peak summer heat
- Fits standard 14 x 14 inch roof vent openings for a straightforward retrofit
- Runs ducted or non-ducted to match your coach's air distribution
- 120 volt power with a 13.1 amp compressor draw, easy to plan around shore power or generator
- Textured white finish stands up to sun and weather on the roof
Why Buy from NVN Marine
- Authorized COLEMAN RVP reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Coleman-Mach 15 Plus 15,000 BTU RV Rooftop Air Conditioner |
|---|---|
| Brand | Coleman RVP |
| Manufacturer Part Number | 38204-066 |
| UPC | 755790005741 |
| Weight | 79.5 pounds |
| Package Dimensions (L x W x H) | 38 x 26.1 x 13.8 inches |
| Cooling Capacity | 15,000 BTU |
| Voltage | 120 Volt |
| Compressor Draw | 13.1 Amp |
| Vent Opening | 14 x 14 inches |
| Air Distribution | Ducted or Non-Ducted |
| Color | Textured White |
| Heat Pump | None |
| Condensate Pump | None |
| Model | Mach 15 Plus |
| Ceiling Assembly | Ordered separately |
| Replacement Part Number | 38204-064 |
Frequently asked questions
Does this air conditioner come with the ceiling assembly?
No. The ceiling assembly must be ordered separately. This part number, 38204-066, is the rooftop unit itself, and it ships on a wood skid.
What size roof opening does it need?
It fits a standard 14 by 14 inch vent opening, which is what most RV rooftop air conditioners use. On a lot of rigs it drops straight into the existing hole.
How much power does it draw?
It's a 120 volt unit and the compressor pulls 13.1 amps. Plan your shore power and generator capacity with that in mind, especially if you're running other appliances at the same time.
Does it have a heat pump?
No. This model is cooling only, with no heat pump and no condensate pump. If you need heat, you'd run your furnace or a separate heat source.
I've seen part number 38204-064 for this. Is it different?
It's the same unit. Coleman RVP replaced 38204-066 with the newer number 38204-064, so you may see either one listed.
