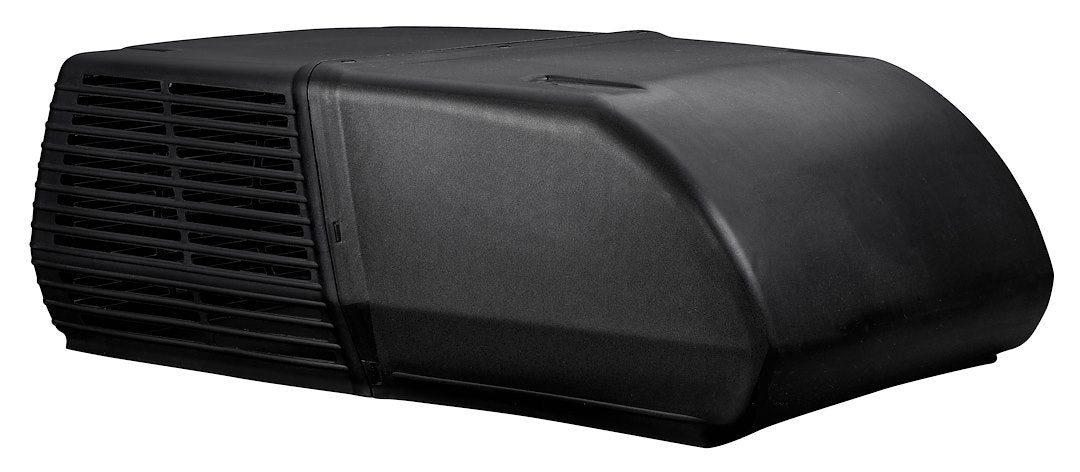

Coleman Mach 15 DQ 15,000 BTU Rooftop AC Black
Coleman Mach 15 DQ 15,000 BTU Rooftop AC Black — Product description
The Coleman Mach 15 DQ is a 15,000 BTU rooftop air conditioner built for RVs that need serious cooling. It fits standard 14 by 14 inch vent openings, runs ducted or non-ducted, and uses R32 refrigerant on 120 volt power. This is the all-black version. Note the ceiling assembly is ordered separately.
The Coleman Mach 15 DQ is the big one. 15,000 BTU of cooling out of a single rooftop unit, which is about as much as you'll get from a standard 14 by 14 vent opening. If you've got a long fifth wheel or a toy hauler that just won't cool down in July, this is the unit that finally does it.
It runs on standard 120 volt shore power and pulls 13.1 amps at the compressor, so plan your power accordingly. The refrigerant is R32, the newer lower-impact charge Coleman moved to across the Mach line. This is the black-on-black version, top shroud and base both black, for a cleaner look on a dark roof.
You can run it ducted or non-ducted, so it drops into most RV roofs either way. One thing to know before you order: this is the rooftop unit only. The ceiling assembly, the part that hangs inside and holds the controls, has to be ordered separately. And heads up, there's no heat pump and no condensate pump built into this model.
Key Features
- 15,000 BTU cooling capacity, the top of the Mach lineup for hot-weather rigs
- Fits standard 14 by 14 inch roof vent openings for a straight drop-in
- Runs ducted or non-ducted so it works with most RV roof layouts
- 120 volt power with a 13.1 amp compressor draw on standard shore power
- R32 refrigerant with an all-black shroud and base
Why Buy from NVN Marine
- Authorized Coleman reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Coleman Mach 15 DQ 15,000 BTU Rooftop Air Conditioner, Black |
|---|---|
| Brand | Coleman |
| Manufacturer Part Number | 38204-0670 |
| UPC | 755790122219 |
| Cooling Capacity | 15,000 BTU |
| Fits Vent Opening | 14 in x 14 in |
| Ducting | Ducted or Non-Ducted |
| Color | Black |
| Refrigerant | R32 |
| Voltage | 120 Volt |
| Compressor Draw | 13.1 Amp |
| Heat Pump | None |
| Condensate Pump | None |
| Package Dimensions (L x W x H) | 38 in x 26.1 in x 13.8 in |
| Weight | 79.5 Pounds |
| Mounting | Ceiling Assembly Sold Separately |
Frequently asked questions
Does this air conditioner include the ceiling assembly?
No. This is the rooftop unit only. The ceiling assembly, which mounts inside and holds the controls, has to be ordered separately.
Will it fit my existing roof vent?
It's built for standard 14 by 14 inch vent openings, which is the common size on most RVs, so it drops right in on the majority of rigs.
Can I run it with ductwork?
Yes. The Mach 15 DQ works both ducted and non-ducted, so you can tie it into an existing duct system or run it as a single-zone unit.
Does it have a heat pump?
No. This model cools only. There's no heat pump and no condensate pump built in.
What kind of power does it need?
It runs on 120 volt AC and draws 13.1 amps at the compressor. Make sure your rig's electrical system and any generator can handle that load.
