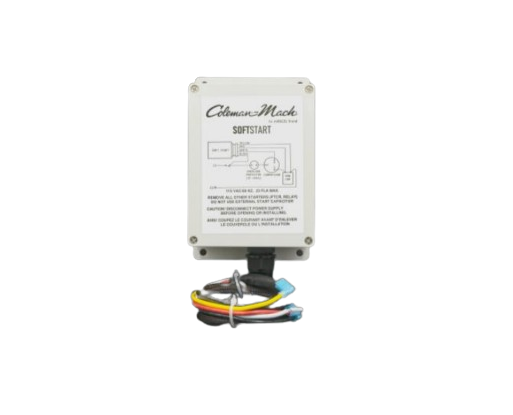

Coleman-Mach 1497-3601 RV Air Conditioner Soft Start Kit

If you've ever fired up your RV's rooftop air conditioner and watched the lights dim, heard the generator lug, or tripped a breaker at the campsite, you already know the problem. It's not the running load. A Coleman-Mach compressor doesn't pull much once it's spinning. It's that first split second, the startup surge, when the compressor's locked rotor draws a huge spike of current just to get moving. The Coleman-Mach 1497-3601 soft start kit is built to tame exactly that moment.

Here's what it does. The soft start box wires into the compressor circuit and ramps the motor up gradually instead of slamming it on at full voltage. That smooths out the inrush and cuts the starting current by up to 75%. Your compressor still cools the same, runs the same, and draws the same steady amps once it's up to speed. The only thing that changes is that violent startup spike, and that's the thing that was giving you trouble.

Why does that matter? Two big reasons. First, generators. A lot of RVers run a portable inverter generator in the 2,000 to 3,600 watt range, and a stock rooftop AC can be right on the edge of what those units can start, especially on a hot afternoon when the head pressure is already high. Knock 75% off the startup surge and a smaller generator can bring the compressor online without stalling or bogging. Second, shore power and shared pedestals. If you've been popping the breaker at an older campground, or trying to run the AC alongside a microwave and a water heater, softening the startup draw gives you real headroom.

This kit is made for the Coleman-Mach 450XX, 452XX, 470XX, 472XX, 480XX, and 482XX series air conditioners. If your rooftop unit is one of those families, this is the matched soft start, not a universal guess. And because it's the factory Coleman-Mach part, it's designed to sit inside those units' housings and tie into the existing compressor wiring without you having to engineer a mount from scratch.

Everything comes in the box. You get the soft start module itself, a mounting bracket, four #10 by 3/8 inch screws, four #10 by 5/8 inch self-drilling screws, a split bushing to protect the wiring where it passes through the housing, two wire nuts, five wire ties to dress the harness, and sealant. So there's no second trip to the hardware store halfway through the job.

Who's this for? Any RVer, motorhome, travel trailer, or fifth-wheel owner running a Coleman-Mach unit in one of the supported series who wants to boondock more, run on a smaller generator, or just stop stressing every time the compressor kicks on. It's especially worth it if you've added solar and an inverter and you're trying to run the AC off batteries, since that startup surge is usually the hardest thing for an inverter to handle.

A word on the install. This isn't a plug-and-play accessory. It wires into the compressor circuit up on the roof, so you're working inside the AC housing with the shroud off and the power disconnected. If you're comfortable with basic 120-volt AC wiring and you can follow the included instructions, it's a very doable afternoon job. If AC wiring isn't your thing, have an RV tech drop it in. Either way, the hardware and sealant you need are already in the box.

What it won't do, so we're straight with you. It won't make your air conditioner colder or more powerful, it isn't a thermostat or a controller, and it doesn't add cooling capacity. It does one job and does it well, which is softening the compressor's startup so your power source doesn't have to swallow that surge. For a lot of RVers, that one job is the difference between running the AC on the go and sweating it out.
