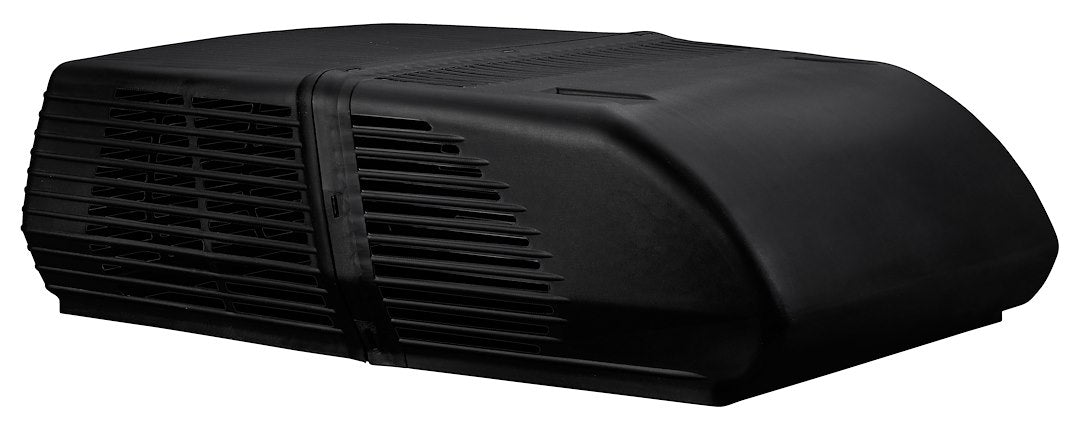

Coleman-Mach 10 NDQ 13,500 BTU RV Rooftop Air Conditioner, Black
Coleman-Mach 10 NDQ 13,500 BTU RV Rooftop Air Conditioner, Black — Product description
The Coleman-Mach 10 NDQ is a 13,500 BTU non-ducted rooftop air conditioner built for RVs, campers, and travel trailers with a standard 14 by 14 inch roof vent opening. It runs on 120 volt power, draws 8.7 amps at the compressor, and ships with soft start built in. Textured black finish. Ceiling assembly and thermostat order separately.
If your rig's got a standard 14 by 14 inch roof vent opening, the Coleman-Mach 10 NDQ drops right in. It's a 13,500 BTU non-ducted unit, which means the cold air comes straight down through the ceiling assembly instead of running through ducts. Simple, and it moves a lot of air.
The NDQ part stands for Non-Ducted Quiet, and that's the whole point here. Coleman tuned this one to run quieter than a standard rooftop box, so you're not fighting the compressor to hear yourself think at the campsite. It runs on 120 volt shore or generator power and draws 8.7 amps at the compressor. Soft start comes built in, so the startup surge is gentler on your generator.
A couple of things to know before you buy. This is the cooling-only version, so there's no heat pump and no condensate pump. And it's the top unit only. You'll need to order the matching ceiling assembly and thermostat separately to finish the install. It weighs 80 pounds, wears a textured black finish, and works with top or down mount setups.
Key Features
- 13,500 BTU cooling output, enough to keep most single-zone RVs and trailers comfortable
- Non-Ducted Quiet (NDQ) design runs quieter than a standard rooftop unit
- Soft start built in, gentler on your generator and shore power at startup
- Fits standard 14 by 14 inch roof vent openings, top or down mount
- 120 volt power, 8.7 amp compressor draw, textured black finish
Why Buy from NVN Marine
- Authorized COLEMAN RVP reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Coleman-Mach 10 NDQ 13,500 BTU RV Rooftop Air Conditioner, Textured Black |
|---|---|
| Brand | COLEMAN RVP |
| Manufacturer Part Number | 35203-0993 |
| UPC | 755790008797 |
| Cooling Capacity | 13,500 BTU |
| Voltage | 120 Volt |
| Compressor Draw | 8.7 Amp |
| Design | Non-Ducted Quiet (NDQ) |
| Mount Type | Top / Down Mount |
| Fits Vent Opening | 14 in x 14 in |
| Color | Textured Black |
| Soft Start | Included |
| Weight | 80 Pounds |
| Package Dimensions (L x W x H) | 38 in x 26.1 in x 11.8 in |
Frequently asked questions
Does this air conditioner include the ceiling assembly and thermostat?
No. The Coleman-Mach 10 NDQ is the rooftop unit only. You'll need to order the matching ceiling assembly and thermostat separately to complete the install.
Will it fit my RV?
It's built for the standard 14 by 14 inch roof vent opening found on most RVs, campers, and travel trailers. It works with both top and down mount configurations.
Does it have a heat pump?
No. This is the cooling-only version, so there's no heat pump and no condensate pump. It's built to cool a single zone on 120 volt power.
What does NDQ mean?
NDQ stands for Non-Ducted Quiet. The air discharges straight down through the ceiling assembly rather than through ducts, and Coleman tuned it to run quieter than a standard rooftop box.
What is soft start and why does it matter?
Soft start reduces the electrical surge when the compressor kicks on. That's easier on your generator and shore power, and it can help the unit start on smaller generators.
