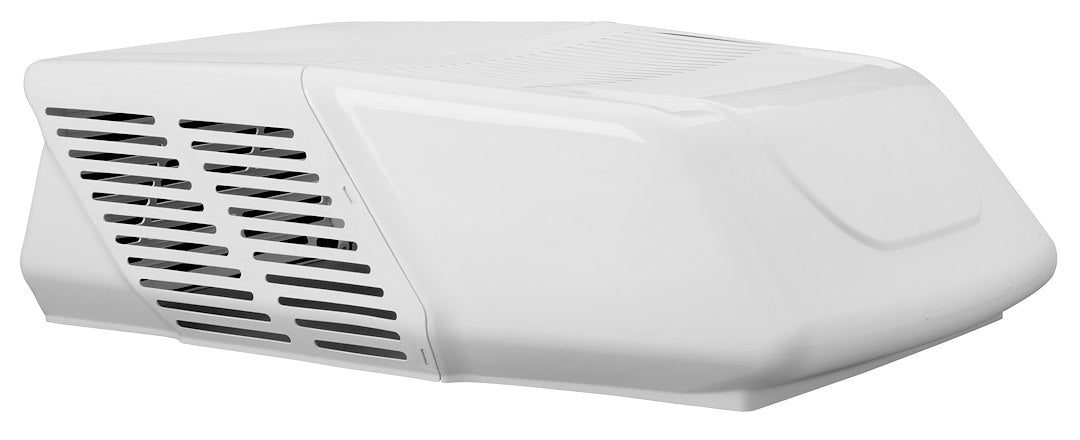

Coleman Mach 10 NDQ 13,500 BTU Non-Ducted RV Rooftop Air Conditioner
Coleman Mach 10 NDQ 13,500 BTU Non-Ducted RV Rooftop Air Conditioner — Product description
The Coleman Mach 10 NDQ delivers 13,500 BTU of cooling for non-ducted RVs and campers, tuned for quiet operation without giving up airflow. It drops into a standard 14 by 14 inch roof opening, runs on 120-volt power, and comes in polished white. Ceiling assembly and thermostat are ordered separately.
The Coleman Mach 10 NDQ is a 13,500 BTU rooftop air conditioner built for RVs, campers, and travel trailers running a single non-ducted setup. NDQ stands for Non-Ducted Quiet, and that's the whole point. The fan and compressor are tuned to keep cabin noise down while still moving real cold air on a hot afternoon.
It draws 8.7 amps on the compressor and runs on standard 120-volt shore power, so it fits the electrical setup on most rigs already. This is a top-mount unit that drops into a standard 14 inch by 14 inch roof vent opening. It's the polished white version, with no heat pump and no built-in condensate pump.
One thing to know before you order: the ceiling assembly and thermostat aren't included with this unit. You'll need to order those separately to complete the install. If you're replacing a tired rooftop AC or building out a non-ducted rig, this Mach 10 is a straightforward, proven choice.
Key Features
- 13,500 BTU cooling capacity, enough to cool most single-AC RVs and travel trailers on a hot day
- Non-Ducted Quiet (NDQ) design keeps fan and compressor noise low inside the cabin
- 8.7 amp compressor draw on standard 120-volt power, fits most rigs' existing electrical setup
- Fits standard 14 inch by 14 inch roof vent openings for a straightforward top-mount install
- Polished white finish with no heat pump or condensate pump for a clean cooling-only setup
Why Buy from NVN Marine
- Authorized COLEMAN RVP reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Coleman Mach 10 NDQ 13,500 BTU Non-Ducted Rooftop Air Conditioner (Polished White) |
|---|---|
| Brand | Coleman RVP |
| Manufacturer Part Number | 35203-0753 |
| UPC | 755790008766 |
| Cooling Capacity | 13,500 BTU |
| Design | Non-Ducted Quiet (NDQ) |
| Mount Type | Top/Down Mount |
| Fits Vent Opening | 14 in x 14 in |
| Color | Polished White |
| Voltage | 120 Volt |
| Compressor Draw | 8.7 Amp |
| Heat Pump | No |
| Condensate Pump | No |
| Package Dimensions (L x W x H) | 38 in x 26.1 in x 11.8 in |
| Weight | 80 lb |
Frequently asked questions
Does this air conditioner come with a ceiling assembly and thermostat?
No. This is the rooftop unit only. The ceiling assembly and thermostat must be ordered separately to complete the install, so plan for both before you start.
What size roof opening does the Mach 10 NDQ need?
It fits a standard 14 inch by 14 inch roof vent opening, which is the common size on most RVs and travel trailers. That makes it a direct fit for a lot of replacement jobs.
How much power does it draw?
The compressor draws 8.7 amps and the unit runs on standard 120-volt shore power. That works with the electrical setup on most single-AC rigs.
Does this unit have a heat pump?
No. This is the cooling-only version with no heat pump and no built-in condensate pump. If you need heat, you'll want a different Coleman-Mach model.
Is this a ducted or non-ducted air conditioner?
It's non-ducted. NDQ stands for Non-Ducted Quiet, so it's designed for rigs where the air discharges directly from the ceiling assembly rather than through ductwork.
