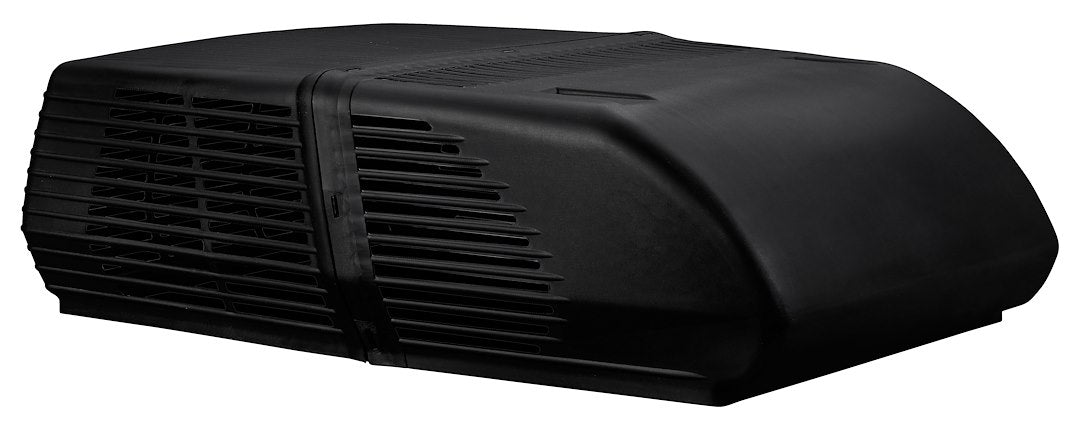

Coleman-Mach 10 NDQ 13,500 BTU RV Rooftop Air Conditioner, Black
Coleman-Mach 10 NDQ 13,500 BTU RV Rooftop Air Conditioner, Black — Product description
The Coleman-Mach 10 NDQ is a 13,500 BTU non-ducted rooftop air conditioner for RVs and campers running on 120-volt power. Its Non-Ducted Quiet design keeps cabin noise down while still moving plenty of cold air, and the low-profile textured black shroud fits standard 14 inch by 14 inch roof openings.
The Coleman-Mach 10 NDQ is a 13,500 BTU rooftop air conditioner built for RVs, campers, and travel trailers that run on standard 120-volt shore power. The NDQ part stands for Non-Ducted Quiet, and that's the whole point here. It moves a lot of cold air without the racket you get from an older rooftop unit.
It drops into a standard 14 inch by 14 inch roof vent opening and mounts top-down, so it works as a single-zone cooler for most rigs. The compressor draws 8.7 amps, and there's no heat pump and no condensate pump on this model, it's straight cooling. At 80 pounds and just 11.8 inches tall, the textured black shroud keeps a low profile up top.
One thing to plan for: the ceiling assembly and the thermostat aren't included. You'll order those separately to match your coach and your control setup. If you're replacing a tired 13,500 BTU unit or spec'ing out a new build, this is a quiet, dependable workhorse.
Key Features
- 13,500 BTU of cooling on standard 120-volt shore power, with an 8.7-amp compressor draw
- Non-Ducted Quiet (NDQ) design runs noticeably quieter than a standard rooftop unit
- Fits standard 14 inch x 14 inch roof vent openings, top or down discharge
- Low-profile 11.8 inch height and 80-pound textured black shroud
- Cooling-only unit, no heat pump and no condensate pump to service
Why Buy from NVN Marine
- Authorized Coleman RVP reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Coleman-Mach 10 NDQ 13,500 BTU RV Rooftop Air Conditioner, Textured Black |
|---|---|
| Brand | Coleman-Mach |
| Manufacturer Part Number | 35203-0793 |
| UPC | 755790008780 |
| Cooling Capacity | 13,500 BTU |
| Voltage | 120 Volt |
| Compressor Draw | 8.7 Amp |
| Design | Non-Ducted Quiet (NDQ) |
| Mount Type | Top / Down Mount |
| Fits Vent Opening | 14 Inch x 14 Inch |
| Color | Textured Black |
| Heat Pump | Without Heat Pump |
| Condensate Pump | Without Condensate Pump |
| Dimensions (L x W x H) | 38 in x 26.1 in x 11.8 in |
| Weight | 80 Pounds |
Frequently asked questions
Does this include the ceiling assembly and thermostat?
No. On this model the ceiling assembly and thermostat must be ordered separately so you can match them to your coach and control setup.
What size roof opening does it need?
It fits a standard 14 inch x 14 inch roof vent opening and mounts top-down.
Does it have a heat pump?
No. This is a cooling-only unit, built without a heat pump and without a condensate pump.
What power does it require?
It runs on 120 volt power with an 8.7 amp compressor draw.
Is it a ducted or non-ducted unit?
It's a non-ducted (NDQ) design, which discharges air directly into the living space rather than through ceiling ductwork.
