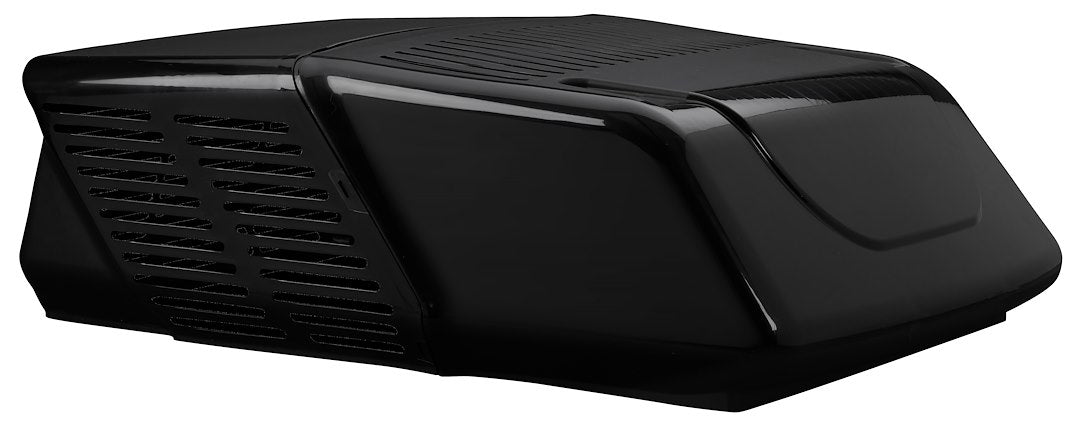

Coleman Mach 10 15,000 BTU RV Rooftop Air Conditioner, Black
Coleman Mach 10 15,000 BTU RV Rooftop Air Conditioner, Black — Product description
The Coleman Mach 10 puts 15,000 BTU of cooling on your RV roof in a polished black shroud that fits standard 14 by 14 inch vent openings. It runs on 120 volt shore power, draws 14.4 amps at the compressor, and mounts either top-discharge or ducted. Keep in mind the ceiling assembly and thermostat ship separately, so plan those into your order.
The Mach 10 is Coleman's high-output rooftop unit, and this one puts out a full 15,000 BTU. It's built for RVs, travel trailers, and fifth wheels where you want to pull the cabin temperature down fast on a hot afternoon. The polished black finish gives it a clean, low-key look up on the roof.
It drops into a standard 14 by 14 inch vent opening, so if you're replacing an old unit or the roof was pre-cut at the factory, the footprint lines up. You get a top or down mount design, which means you can run it non-ducted with a ceiling assembly or tie it into existing ductwork. Power is standard 120 volt, and the compressor draws 14.4 amps, so size your generator or shore power accordingly.
One thing to plan for: this is the rooftop unit only. The ceiling assembly and thermostat aren't included and need to be ordered separately. It's cooling only too, with no heat pump or condensate pump.
Key Features
- 15,000 BTU cooling output, enough to keep a full-size RV or fifth wheel comfortable on hot days
- Fits standard 14 by 14 inch roof vent openings, so it drops into most existing pre-cut roofs
- Top or down mount design runs ducted or non-ducted depending on your ceiling assembly
- 120 volt operation with a 14.4 amp compressor draw, easy to run off shore power or a properly sized generator
- Polished black shroud for a clean look up on the roof
Why Buy from NVN Marine
- Authorized COLEMAN RVP reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Coleman Mach 10 15,000 BTU RV Rooftop Air Conditioner, Polished Black |
|---|---|
| Brand | COLEMAN RVP |
| Manufacturer Part Number | 35204-0782 |
| UPC | 755790008834 |
| Cooling Capacity | 15,000 BTU |
| Fits Vent Opening | 14 in x 14 in |
| Mount Design | Top / Down Mount |
| Color | Polished Black |
| Voltage | 120 Volt |
| Compressor Draw | 14.4 Amp |
| Heat Pump | No |
| Condensate Pump | No |
| Package Dimensions (L x W x H) | 37.8 in x 27.9 in x 11.9 in |
| Weight | 82 Pounds |
| Ceiling Assembly & Thermostat | Ordered separately |
Frequently asked questions
What size roof opening does the Coleman Mach 10 need?
It fits a standard 14 by 14 inch vent opening, which is the same cutout most RVs come pre-cut with from the factory.
Does this air conditioner include the ceiling assembly and thermostat?
No. This is the rooftop unit only. The ceiling assembly and a thermostat have to be ordered separately to complete the install.
Can it run ducted?
Yes. The top or down mount design lets you run it non-ducted with a ceiling assembly or tie it into your RV's existing ductwork.
How much power does it draw?
It runs on 120 volt and pulls 14.4 amps at the compressor. Make sure your shore power connection or generator can handle that plus your other loads.
Does it have a heat pump?
No. This is a cooling-only unit with no heat pump or condensate pump.
