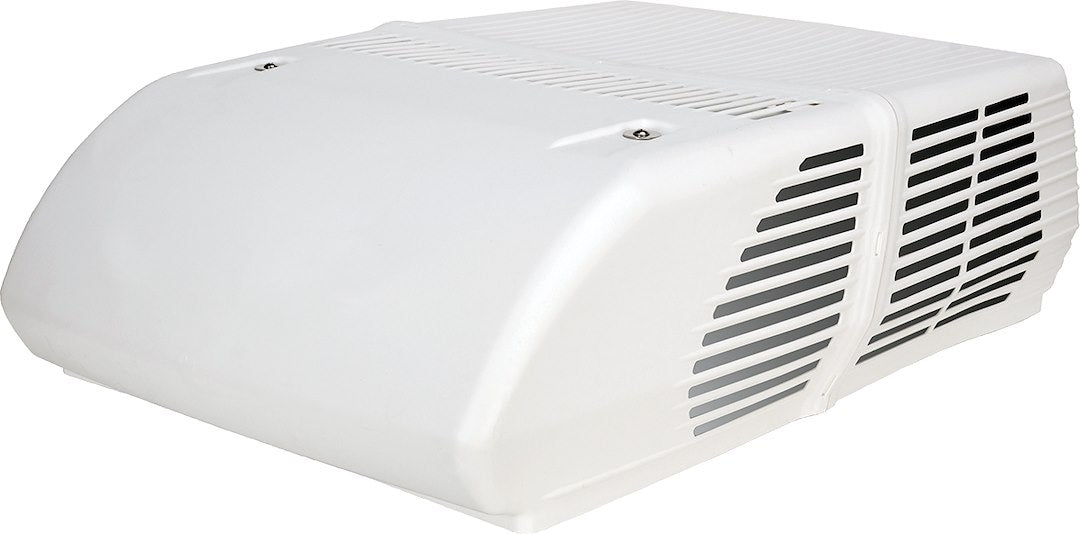

Coleman Mach 10 15,000 BTU RV Rooftop Air Conditioner
Coleman Mach 10 15,000 BTU RV Rooftop Air Conditioner — Product description
The Coleman Mach 10 is a 15,000 BTU rooftop air conditioner built to keep your RV cool through the hottest afternoons. It drops into a standard 14-inch by 14-inch vent opening, runs on 120-volt shore power, and pulls 14.4 amps at the compressor. This is the textured white rooftop unit.
If you've ever spent a July afternoon in a camper with a tired air conditioner, you know why cooling capacity matters. The Mach 10 puts out 15,000 BTU, which is enough to hold temperature in most single-zone travel trailers and fifth wheels. It's a top/down mount design, so it sits on the roof over a standard 14-inch square vent opening and pushes conditioned air down into the coach.
A couple of things to know before you order. This is the rooftop unit only. You'll need to add a ceiling assembly and a thermostat separately to finish the install, and it doesn't include a heat pump or a condensate pump. It runs on standard 120-volt power and draws 14.4 amps at the compressor, so plan your shore power or generator around that. At 82 pounds it's a two-person lift onto the roof. The textured white housing shrugs off sun and road grime. Measure your existing opening first, and you're most of the way to a straightforward swap.
Key Features
- 15,000 BTU cooling capacity holds temperature in most single-zone travel trailers and fifth wheels.
- Fits a standard 14-inch by 14-inch roof vent opening for a direct swap on most RVs.
- 120-volt operation with a 14.4-amp compressor draw, sized for shore power or a properly rated generator.
- Top/down mount design pushes conditioned air straight down into the coach.
- Textured white housing stands up to UV exposure and road grime.
Why Buy from NVN Marine
- Authorized COLEMAN RVP reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Coleman Mach 10 15,000 BTU RV Rooftop Air Conditioner |
|---|---|
| Brand | COLEMAN RVP |
| Manufacturer Part Number | 45204-0762 |
| UPC | 755790004485 |
| Cooling Capacity | 15,000 BTU |
| Voltage | 120 Volt |
| Compressor Draw | 14.4 Amp |
| Mount Design | Top/Down Mount |
| Fits Vent Opening | 14 Inch x 14 Inch |
| Color | Textured White |
| Package Dimensions (L x W x H) | 37.8 in x 27.9 in x 11.9 in |
| Weight | 82 Pounds |
| Heat Pump | None |
| Condensate Pump | None |
| Alternate Part Number | 35204-0762 |
Frequently asked questions
Does this air conditioner include a ceiling assembly and thermostat?
No. The Mach 10 rooftop unit ships on its own. You'll need to order a matching ceiling assembly and a thermostat separately to complete the installation.
What size roof opening does it fit?
It's built for a standard 14-inch by 14-inch vent opening, which is the most common size on RVs. Measure your existing opening before ordering to confirm the fit.
Does it have a heat pump?
No. This model cools only. It comes without a heat pump and without a condensate pump.
How much power does it draw?
It runs on 120 volts and pulls 14.4 amps at the compressor. Size your shore power hookup or generator accordingly.
How much does the unit weigh and how big is it?
The rooftop unit weighs 82 pounds and measures 37.8 inches long by 27.9 inches wide by 11.9 inches tall. Plan on two people to lift it onto the roof.
